SEMAR/ROVER齒輪泵NOVAX-G系列簡介
“G”系列電動齒輪泵專為轉移所有非侵蝕性日常粘性液體而開發，其粘度在40°之間介于1°Engler之間（例如：水，油 - 僅間歇性工作以防止過熱）和7°Engler（SAE 30發動機油或SAE 80變速箱油）。液體必須清潔，沒有懸浮顆粒。這些泵適用于水，葡萄酒，橄欖油，牛奶或柴油以及合成油或礦物油的轉移。
電動齒輪泵能夠在不需要填充的情況下將液體吸入最大2米的液位差。如果下降差異較大，則可以在吸入管的末端設置止回閥，然后必須將其填充到泵的位置。為了增加泵的抽吸能力，將大約10毫升的液體倒入泵中。在任何情況下，泵應該靠近待轉移液體的容器放置。如果干燥超過10秒，泵可能會損壞。切勿在沒有軟管接頭的情況下操作泵。
在啟動泵之前，務必連接隨吸管提供的過濾器。
如果使用安全閥代碼920035，齒輪泵只能與輸送手槍一起使用。
所有型號均可在2 bar（0.2 MPa）的壓力下連續運行。
230V動力型號配備一個換向器，可以反轉電機的旋轉，從而可以自由選擇泵送方向。
電池供電的型號具有預定的旋轉方向，該旋轉方向由泵殼上的箭頭指示。
齒輪選擇：
您可以要求泵配有不銹鋼齒輪或PTFE。
不銹鋼齒輪：理想情況下，您應該要求合成油的轉移，粘度在ISO VG 80和150之間; 有點吵，但它們的使用壽命很長。
PTFE齒輪：低粘度油（ISO VG 32和80之間）必須使用，最大冷潷析。30°C，也可連續使用但自由放電（排氣壓力低于0.1 BAR）
注意：與所有的電動泵一樣，即使是齒輪也不能在沒有液體的情況下干燥或長時間運行。
The “G” series electric gear pumps have been developed for the transfer of all non-aggressive everyday viscous liquids, the viscosity of which at 40° is between 1° Engler (example: water, oil - only intermittent duty to prevent overheating) and 7° Engler (SAE 30 engine oil or SAE 80 gearbox oil). The liquids must be clean without suspended particles. These pumps are suitable for the transfer of water, wine, olive-oil, milk or diesel and synthetic or mineral oil.
The electric gear pumps are capable of sucking liquids up to a maximum drop difference of 2 meters without the need of filling. If the drop difference is greater, a non-return valve can be positioned at the end of the suction pipe which must then be filled as far as the pump. To increase the suction capacity of the pump, pour approximately 10 ml of the liquid to be transferred into the pump. The pump should in any case be positioned close to the container of the liquid to be transferred. The pump could be damaged if it runs dry for more than 10 seconds. Never operate the pump without the hose connectors.
Always connect the filter supplied with the suction pipe before starting the pump.
The gear pumps can only be used with the delivery pistol if a safety valve code 920035 is used.
All models can operate in a continuous manner at a pressure of 2 bar (0.2 MPa).
The 230V powered models are equipped with a commutator to reverse the rotation of the motor, which allows the free selection of the pumping direction.
The battery powered models have a predetermined rotation direction that is indicated by an arrow on the pump casing.
Gear choice.
You can request the pumps with stainless steel gear or PTFE.
Stainless Gears: ideally you should be requested for the transfer of synthetic oil, with a viscosity between ISO VG 80 and 150; a little noisy, but they have very long service life.
PTFE gears: shall be required for low viscosity oil (between ISO VG 32 and 80), cold decanted max. 30 ° C, also for continuous service but at free discharge (discharge pressure of less than 0.1 BAR)
Note: like all of our electric pumps, even the gear must not run dry or for prolonged periods in the absence of liquid.
SEMAR/ROVER齒輪泵技術資料
Code: 971000
Model: NOVAX G 20 HP 0.8
L / h: 1750
?D mm: 20
HP: 0.8
Hmax (m): 24
r.p.m.: 2850
A x B x H: 230X120H190
kg: 7
EAN code 8032706072380

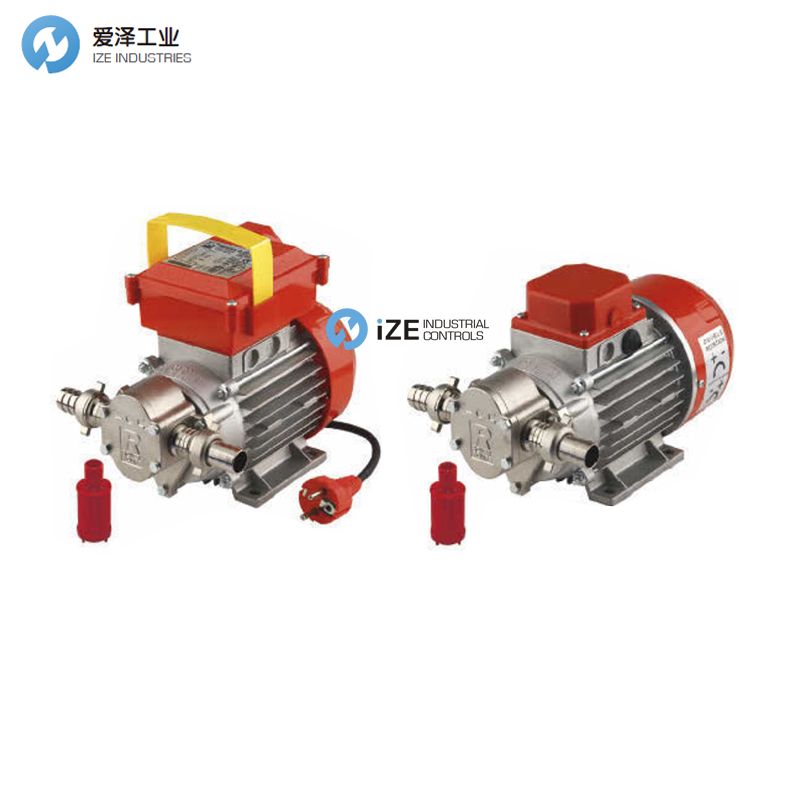

SEMAR/ROVER齒輪泵NOVAX-G系列 示例NOVAX G 20 HP 0.6
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SEMAR/ROVER列表：
SEMAR/ROVER齒輪泵NOVAX-G系列NOVAX G 20 HP 0.6
SEMAR/ROVER齒輪泵NOVAX-G系列NOVAX G 20 HP 0.8
