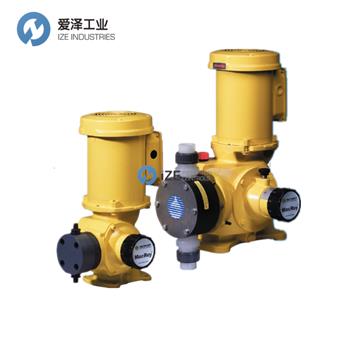

Brief Introduction of MILTONROY(LMI) Metering Pumps G Series Products
G series metering pumps, also known as MACROY pumps, are now NSF/ANSI 61 and 372 certified municipal compliance and safety assurance. It can handle up to 175 psi (12 bar) pressure and up to 310 GPH (1181 L / h) flow. It is an ideal pump for water treatment applications. This mechanical diaphragm pump combines heavy industrial driving technology with the most advanced design and manufacturing technology, eliminates flow restrictions, reduces the possibility of hydraulic oil contaminating process liquids, and ensures stable output.
G Series Characteristics of MILTONROY(LMI) Metering Pumps
? Flow Rates up to 312 GPH (1180 Liters/hr)
? Mechanically Actuated Diaphragm liquid end eliminates flow restrictions
? Durable, metallic housing designed to withstand tough environments
? High efficiency motors minimize heat buildup
? A robust, metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio with smooth velocity profiles as compared to the pulsating flows of solenoid pumps or lost motion designs
? Smooth running, low friction bronze gears
? The PTFE, high performance, diaphragm design increases diaphragm life by eliminating the stresses inherent in most designs
? Reliable low flow performance is a result of high performance check valves with machined seats
? All gear components operate in an oil bath for long life
? Precision stroke adjustment can be operated while the pump is running or stopped
? Steady State Accuracy–± 1% of full capacity over the 10 to 1 turndown ratio
? Liquid Temperature Range–14° to 122° F (-14° to 50° C)
? Coating–2 part epoxy
? Average Weight with motor –
Frame D: 45 lbs (20 kgs)
Frame G: 105 lbs (48 kgs)

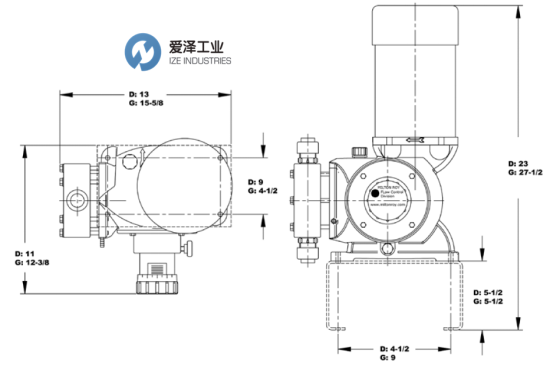

MILTONROY(LMI) Metering Pumps G Series Size Diagram

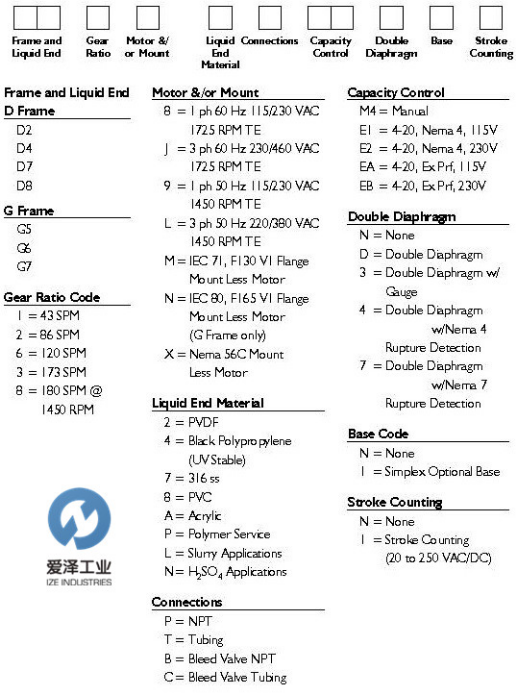

MILTONROY(LMI) Metering Pumps G Series Selection Reference
MILTONROY(LMI) Metering Pumps G Series
IZE INDUSTRIES Special Distribution, Common Spare Parts MILTONROY(LMI) Metering Pumps Series Products List:
MILTONROY(LMI) metering Pumps D2182PM4NN
MILTONROY(LMI) metering Pumps D2182PM4NNI
MILTONROY(LMI) metering Pumps D2182PM4NIN
MILTONROY(LMI) metering Pumps D2182PM4NII
MILTONROY(LMI) metering Pumps D2182PM4DNN
MILTONROY(LMI) metering Pumps D2182PM4DNI
MILTONROY(LMI) metering Pumps D2182PM4DIN
MILTONROY(LMI) metering Pumps D2182PM4DII
MILTONROY(LMI) metering Pumps D2182PM43NN
MILTONROY(LMI) metering Pumps D2182PM43NI
MILTONROY(LMI) metering Pumps D2182PM43IN
MILTONROY(LMI) metering Pumps D2184PM43II
MILTONROY(LMI) metering Pumps D2184PE1NNN
MILTONROY(LMI) metering Pumps D2184PE1NNI
MILTONROY(LMI) metering Pumps D2184PE1NIN
MILTONROY(LMI) metering Pumps D2184PE1NII
MILTONROY(LMI) metering Pumps D2184PE1DNN
MILTONROY(LMI) metering Pumps D2184PE1DNI
MILTONROY(LMI) metering Pumps D2184PE1DIN
MILTONROY(LMI) metering Pumps D2184PE1DII
MILTONROY(LMI) metering Pumps D2184PE13NN
MILTONROY(LMI) metering Pumps D2184PE13NI
MILTONROY(LMI) metering Pumps D2187PE13IN
MILTONROY(LMI) metering Pumps D2187PE13II
MILTONROY(LMI) metering Pumps D2187 PEANNN
MILTONROY(LMI) metering Pumps D2187PEANNI
MILTONROY(LMI) metering Pumps D2187PEANIN
MILTONROY(LMI) metering Pumps D2187 PEANII
MILTONROY(LMI) metering Pumps D2187PEADNN
MILTONROY(LMI) metering Pumps D2187PEADNI
MILTONROY(LMI) metering Pumps D2187PEADIN
MILTONROY(LMI) metering Pumps D2187PEADII
MILTONROY(LMI) metering Pumps D2187PEA3NN
MILTONROY(LMI) metering Pumps D2187PEA3NI
MILTONROY(LMI) metering Pumps D2188PEA3IN
MILTONROY(LMI) metering Pumps D2188PEA3II
MILTONROY(LMI) metering Pumps D2188TM4NNN
MILTONROY(LMI) metering Pumps D2188TM4NNI
MILTONROY(LMI) metering Pumps D2188TM4NIN
MILTONROY(LMI) metering Pumps D2188TM4NII
MILTONROY(LMI) metering Pumps D2188TM4DNN
MILTONROY(LMI) metering Pumps D2188TM4DNI
MILTONROY(LMI) metering Pumps D2188TM4DIN
MILTONROY(LMI) metering Pumps D2188TM4DII
MILTONROY(LMI) metering Pumps D2188TM43NN
MILTONROY(LMI) metering Pumps D218PTM43NI
MILTONROY(LMI) metering Pumps D218PTM43IN
MILTONROY(LMI) metering Pumps D218PTM43II
MILTONROY(LMI) metering Pumps D218PTE1NNN
MILTONROY(LMI) metering Pumps D218PTE1NNI
MILTONROY(LMI) metering Pumps D218PTE1NIN
MILTONROY(LMI) metering Pumps D218PTE1NII
MILTONROY(LMI) metering Pumps D218PTE1DNN
MILTONROY(LMI) metering Pumps D218PTE1DNI
MILTONROY(LMI) metering Pumps D218PTE1DIN
MILTONROY(LMI) metering Pumps D218PTE1DII
MILTONROY(LMI) metering Pumps D218PTE13NN
MILTONROY(LMI) metering Pumps D218LTE13NI
MILTONROY(LMI) metering Pumps D218LTE13IN
MILTONROY(LMI) metering Pumps D218LTE13II
MILTONROY(LMI) metering Pumps D218LTEANNN
MILTONROY(LMI) metering Pumps D218LTEANNI
MILTONROY(LMI) metering Pumps D218LTEANIN
MILTONROY(LMI) metering Pumps D218LTEANII
MILTONROY(LMI) metering Pumps D218LTEADNN
MILTONROY(LMI) metering Pumps D218LTEADNI
MILTONROY(LMI) metering Pumps D218LTEADI
MILTONROY(LMI) metering Pumps D218LTEADII
MILTONROY(LMI) metering Pumps D218LTEA3NN
MILTONROY(LMI) metering Pumps D218LTEA3NI
MILTONROY(LMI) metering Pumps D218LTEA3IN
MILTONROY(LMI) metering Pumps D218LTEA3II
MILTONROY(LMI) metering Pumps D42JAPM4NNN
MILTONROY(LMI) metering Pumps D42JAPM4NNI
MILTONROY(LMI) metering Pumps D42JAPM4NIN
MILTONROY(LMI) metering Pumps D42JAPM4NII
MILTONROY(LMI) metering Pumps D42JAPM4DNN
MILTONROY(LMI) metering Pumps D42JAPM4DNI
MILTONROY(LMI) metering Pumps D42JAPM4DIN
MILTONROY(LMI) metering Pumps D42JAPM4DII
MILTONROY(LMI) metering Pumps D42JAPM43NN
MILTONROY(LMI) metering Pumps D42JAPM43NI
MILTONROY(LMI) metering Pumps D42JAPM43IN
MILTONROY(LMI) metering Pumps D42JAPM43II
MILTONROY(LMI) metering Pumps D42JAPE1NNN
MILTONROY(LMI) metering Pumps D46JAPE1NNI
MILTONROY(LMI) metering Pumps D76JAPE1NIN
MILTONROY(LMI) metering Pumps D76JAPE1NII
MILTONROY(LMI) metering Pumps D76JAPE1DNN
MILTONROY(LMI) metering Pumps D76JAPE1DNI
MILTONROY(LMI) metering Pumps D76JAPE1DIN
MILTONROY(LMI) metering Pumps D76JAPE1DII
MILTONROY(LMI) metering Pumps D769APE13NN
MILTONROY(LMI) metering Pumps D769APE13NI
MILTONROY(LMI) metering Pumps D769APE13IN
MILTONROY(LMI) metering Pumps D769APE13II
MILTONROY(LMI) metering Pumps D769NPEANNN
MILTONROY(LMI) metering Pumps D739NPEANNI
MILTONROY(LMI) metering Pumps D739NPEANIN
MILTONROY(LMI) metering Pumps D739NPEANII
MILTONROY(LMI) metering Pumps D739NPEADNN
MILTONROY(LMI) metering Pumps D739NPEADNI
MILTONROY(LMI) metering Pumps D839NPEADIN
MILTONROY(LMI) metering Pumps D839NPEADII
MILTONROY(LMI) metering Pumps D839NPEA3N
MILTONROY(LMI) metering Pumps D839NPEA3NI
MILTONROY(LMI) metering Pumps D83LNPEA3IN
MILTONROY(LMI) metering Pumps D83LNPEA3II
MILTONROY(LMI) metering Pumps D83LNTM4NNN
MILTONROY(LMI) metering Pumps D83LNTM4NNI
MILTONROY(LMI) metering Pumps D83LNTM4NIN
MILTONROY(LMI) metering Pumps D88LNTM4NII
