METARIS齒輪泵MHP/M系列產品簡介
MATARIS的泵和馬達特別適合重型移動設備應用。
它們被設計用于極端占空比和連續重載操作。泵和馬達是堅固的設計，但精密制造。
泵可采用單節機組或多個節段可組合成一個單元。廣泛選擇安裝法蘭和驅動軸可適用于大多數應用。管螺紋，“O”環，或分裂法蘭可在公制或SAE標準。
MTEARIS泵和電機是在嚴格的質量控制系統下制造的，由ISO 2000標準監控。
METARIS pumps and motors are particularly well suited for heavy duty mobile equipment applications.
They are designed for extreme duty cycles and continuous heavy duty operation. The pumps and motors are a rugged design, but precision manufactured.
Pumps are available in single section units or several sections can be combined into one unit. A wide selection of mounting flanges and drive shafts are available to fit most applications. Pipe thread, "o"ring, or split flange are available in both metric or SAE standards.
Metaris pumps and motors are manufactured under strict quality control systems which are monitored by ISO 2000 standards.
METARIS齒輪泵MHP/M系列特點
分段施工;優質的齒輪結構，高強度灰色和球墨鑄鐵鑄件，世界各地的維修組件以及適合大多數應用的各種配置。
多個泵單元;多個泵部分或背負式單元可以組合在一個驅動器上，以消除多個動力輸出驅動器。
精密匹配齒輪;所有齒輪組均經過精心加工，由高合金桿加工而成，表面經過精密加工，每個齒輪組都配合使用，以實現最高效率。 10齒結構可提供每轉每厘米寬度的最大輸出。
軸承;在軸頸上使用優質滾子軸承，以減少液壓系統內污染引起的磨損。
套管泵;襯套采用優質材料和特氟龍涂層制成，可延長使用壽命。
Sectional construction; quality gear construction , high strength gray and ductile iron castings, repair components available throughout the world and a wide range of configurations to suit most applications.
Multiple pump units; Several pump sections or piggyback units can be combined on a single drive, to eliminate multiple power takeoff drives.
Precision matched gears; All gear sets are designed, and machined from high alloy bar, surfaces are precision finished and each gear set is matched for maximum efficiency. The 10 tooth construction gives maximum output per centimeter width per revolution.
Bearings; Quality roller bearings are utilized on journals to reduce the wear caused from contamination within the hydraulic system.
Bushing pumps; Bushings are constructed from quality materials and Teflon coated for maximum wear life.

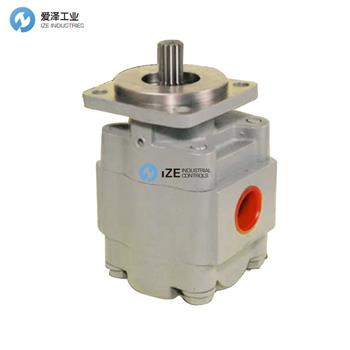

METARIS齒輪泵MHP/M系列 示例MH20
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件METARIS齒輪泵CINDY系列部分型號：
METARIS齒輪泵MH15
METARIS齒輪泵MH20
METARIS齒輪泵MH25
METARIS齒輪泵MH30/31
METARIS齒輪泵MH37
METARIS齒輪泵MH50/51
METARIS齒輪泵MH75/76
METARIS齒輪泵MH315
METARIS齒輪泵MH330
METARIS齒輪泵MH350
METARIS齒輪泵MH365
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于METARIS齒輪泵MHP/M系列 示例MH20的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關METARIS齒輪泵MHP/M系列 示例MH20更詳細的信息或者購買METARIS相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
METARIS齒輪泵MHP/M系列產品簡介及技術資料
