SC液壓泵L3/L3C系列產品特點簡介
?便攜式
?經濟型
?輕量化設備
?無需潤滑即可
?安裝和運行
?OEM應用的理想選擇
SC氣動緊湊型液體泵的工作原理是差動區域?？諝饣钊?qū)動較小直徑的液壓柱塞以提供壓力比。壓力比決定了最大出口壓力。
SC緊湊型液體泵自動循環。當壓縮空氣首先施加到泵上時，它將以其最大速度循環，產生最大流量。在這個階段，泵作為輸送泵用液體填充壓力接收器。隨著接收器中的壓力增加，泵將逐漸開始以較慢的速率循環，并且對往復式差動活塞提供更大的阻力。
當輸出壓力和空氣驅動力平衡以產生失速狀態時，SC泵自動停止。此時，泵將在沒有能量消耗的情況下保持壓力，從而為液壓動力提供經濟的來源。
由于非常低的摩擦阻力，SC泵將在出口壓力略微下降或空氣驅動壓力增加的情況下循環。
SC泵適用于剪式千斤頂升降機，飛機千斤頂，夾緊裝置，沖頭和銷釘壓力機，閥門驅動，滾輪張緊，扭矩扳手，壓力機系統過載，壓力測試，壓接，垃圾壓實機，紙張和打印切紙機。
兼容所有液壓油，普通水，蒸餾水和二離子水，溶劑，溫和化學品和液化二氧化碳。
316不銹鋼濕式液壓結構，重量輕（六磅），3.5x 7.00主體包括進氣和排氣消聲器。
提供八種比率：15,25,35,45,65,105,125和195。
需要低于15 psi的空氣驅動壓力才能運行，L3系列泵可自行啟動以立即運行。最大空氣驅動壓力為125 psi（間歇工作）
可在125 psi空氣驅動下提供高達24,375 psi的壓力，流量可達1.0 gpm。
不需要電源或連接。
可以驅動泵的替代氣體包括來自液化氣體或天然氣管道的氮蒸氣，因此提供獨立于外部電源的完全獨立的封裝。
手動泵附件選項允許在車間空氣不可用時進行手動操作或用于精確壓力控制。
PORTABLE
ECONOMICAL
LIGHTWEIGHT
REQUIRES NO LUBRICATION
EASY TO INSTALL & OPERATE
IDEAL FOR OEM APPLICATIONS
SC air driven compact liquid pumps operate on the principal of differential areas. An air piston drives a smaller diameter hydraulic plunger to provide a pressure ratio. The pressure ratio determines the maximum outlet pressure.
SC compact liquid pumps cycle automatically. When compressed air is first applied to the pump, it will cycle at its maximum speed producing maximum flow. At this stage, the pump is acting as a transfer pump filling the pressure receiver with liquid. The pump will then gradually start to cycle at a slower rate as the pressure in the receiver increases and offers more resistance to the reciprocating differential piston.
SC pumps stop automatically when the output pressure force and the air drive force is balanced to create a stall condition. At this point, the pump will maintain pressure without energy consumption, thus providing an economical source for hydraulic power.
SC pumps will cycle with a slight drop in the outlet pressure or increase in the air drive pressure due to very low frictional resistance.
SC pumps are suitable for use on scissor jack lifts, aircraft jacks, clamping devices, punches and pin presses, valve actuation, roller tensioning, torque wrenches, press system overload, pressure testing, crimping, trash compactors, paper and printing paper cutters.
Compatible with all hydraulic fluids, plain water, distilled and di-ionized water, solvents, mild chemicals and liquefied CO2.
316 Stainless steel wetted hydraulic construction, light weight (six pounds), 3.5" x 7.00" body includes inlet and exhaust muffler.
Available in eight ratios: 15, 25, 35, 45, 65, 105, 125 and 195.
Requires less than 15 psi air drive pressure to operate, the L3 series pump is self priming for immediate operation. Maximum air drive pressure is 125 psi (intermittent duty)
Can supply pressures up to 24,375 psi @ 125 psi air drive and flow rates up to 1.0 gpm.
Requires no electrical power or connections.
Alternative gases that can drive the pump include nitrogen vapor from liquefied gas or natural gas pipeline, thus offering a completely self-contained package independent of external power sources.
Hand pump attachment option allows for manual operation when shop air is not available or for precision pressure control.
M002-遠程先導：此選項為先導循環閥提供單獨的1/8“NPT外部空氣。用于泵的遠程控制操作。
M003-直螺紋：直螺紋修改為流體入口和出口提供SAE直螺紋選項。
M004＆M027-整體式手動泵附件：此修改允許手動補充操作泵。適用于除氣動動力之外還需要手動泵的精確測試或緊急備用應用。
M005-距離件：距離件型號配有隔離器附件，可防止液壓活塞在運行期間縮回空氣驅動裝置，從而使液壓組件與空氣驅動裝置100％分離。隔離器附件可防止污染并起到隔熱層的作用。
M006-無空氣活塞回位彈簧：這種改進可在泵送液化氣體（如CO2）時改善吸入沖程。
M008-降噪：降噪采用了特殊的內部保險杠，使泵運行更安靜而不會影響性能。
M009-1/4“外徑高壓油管出口：此修改為20 KSI 1/4”外徑管（7 / 16-20螺紋LF4連接）提供錐形和螺紋高壓連接。
M011-安裝孔：螺紋和螺紋底部安裝孔可用于罐頂安裝應用。
M002 - Remote Pilot: This option provides for a separate 1/8" NPT external air to pilot cycling valve. Useful for remote control operation of the pump.
M003 - Straight Threads: The straight thread modification offers the fluid inlet and outlet ports with SAE straight thread options.
M004 & M027 - Integral Hand Pump Attachment: This modification permits supplementary operation of the pump by hand. Useful in precise testing or emergency back-up applications requiring a hand pump in addition to pneumatic power.
M005 - Distance Piece: The distance piece models are furnished with an isolator attachment which prevents the hydraulic piston from retracting into the air drive during operation, thus providing 100% separation of the hydraulic assembly from the air drive assembly. The isolator attachment prevents contamination and acts as a heat barrier.
M006 - No Air Piston Return Spring: This modification provides improved fill on the suction stroke when pumping liquefied gases such as CO2.
M008 - Noise Reduction: Noise reduction incorporates a special internal bumper allowing the pump to run quieter without impairing performance.
M009 - 1/4" O.D. High Pressure Tubing Fluid Outlet: This modification provides a coned and threaded high pressure connection for 20 KSI 1/4" O.D. tubing (7/16-20 thread LF4 connection).
M011 - Mounting Holes: Tapped and threaded bottom mounting holes are available for tank top mounting applications.

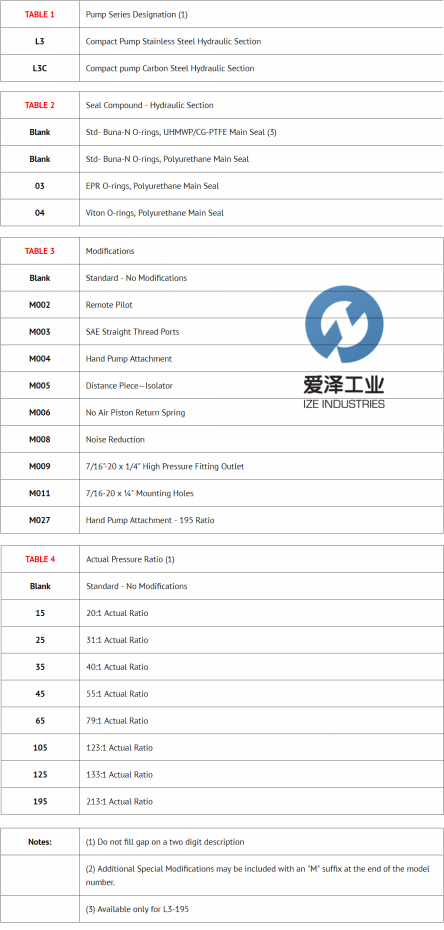

SC液壓泵L3/L3C系列選型參考

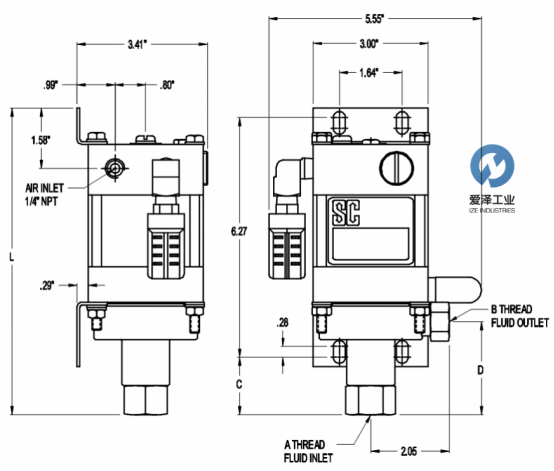

SC液壓泵L3/L3C系列外形尺寸

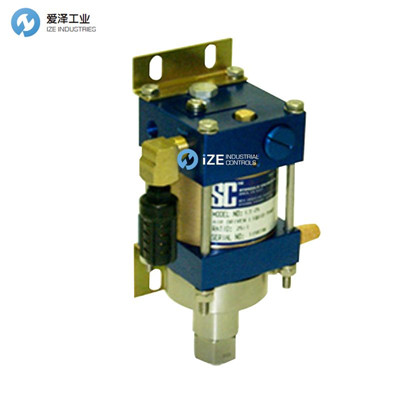

SC液壓泵L3/L3C系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SC液壓泵系列列表：
SC液壓泵S10011-L3-03-M002-15
SC液壓泵S10011-L3-03-M002-25
SC液壓泵S10011-L3-03-M002-35
SC液壓泵S10011-L3-03-M002-45
SC液壓泵S10011-L3-03-M002-65
SC液壓泵S10011-L3-03-M002-105
SC液壓泵S10011-L3-03-M002-125
SC液壓泵S10011-L3-03-M002-195
SC液壓泵S10013-L3-03-M003-15
SC液壓泵S10013-L3-03-M003-25
SC液壓泵S10013-L3-03-M003-35
SC液壓泵S10013-L3-03-M003-45
SC液壓泵S10013-L3-03-M003-65
SC液壓泵S10013-L3-03-M003-105
SC液壓泵S10013-L3-03-M003-125
SC液壓泵S10013-L3-03-M003-195
SC液壓泵S10014-L3-03-M004-15
SC液壓泵S10014-L3-03-M004-25
SC液壓泵S10014-L3-03-M004-35
SC液壓泵S10014-L3-03-M004-45
SC液壓泵S10014-L3-03-M004-65
SC液壓泵S10014-L3-03-M004-105
SC液壓泵S10014-L3-03-M004-125
SC液壓泵S10014-L3-03-M004-195
SC液壓泵S10011-L3C-03-M027-15
SC液壓泵S10011-L3C-03-M027-25
SC液壓泵S10011-L3C-03-M027-35
SC液壓泵S10011-L3C-03-M027-45
SC液壓泵S10011-L3C-03-M027-65
SC液壓泵S10011-L3C-03-M027-105
SC液壓泵S10011-L3C-03-M027-125
SC液壓泵S10011-L3C-03-M027-195
SC液壓泵S10011-L3S-03-M005-15
SC液壓泵S10011-L3S-03-M005-25
SC液壓泵S10011-L3S-03-M005-35
SC液壓泵S10011-L3S-03-M005-45
SC液壓泵S10011-L3S-03-M005-65
SC液壓泵S10011-L3S-03-M005-105
SC液壓泵S10011-L3S-03-M005-125
SC液壓泵S10011-L3S-03-M005-195
SC液壓泵S10014-L3-04-M006-15
SC液壓泵S10014-L3-04-M006-25
SC液壓泵S10014-L3-04-M006-35
SC液壓泵S10014-L3-04-M006-45
SC液壓泵S10014-L3-04-M006-65
SC液壓泵S10014-L3-04-M006-105
SC液壓泵S10014-L3-04-M006-125
SC液壓泵S10014-L3-04-M006-195
SC液壓泵S10011-L3-03-M008-15
SC液壓泵S10011-L3-03-M008-25
SC液壓泵S10011-L3-03-M008-35
SC液壓泵S10011-L3-06-M008-45
SC液壓泵S10011-L3-06-M008-65
SC液壓泵S10011-L3C-06-M008-105
SC液壓泵S10011-L3C-06-M008-125
SC液壓泵S10011-L3C-03-M008-195
SC液壓泵S10011-L3C-03-M009-15
SC液壓泵S10011-L3C-07-M009-25
SC液壓泵S10011-L3C-07-M009-35
SC液壓泵S10011-L3-07-M009-45
SC液壓泵S10011-L3-03-M009-65
SC液壓泵S10011-L3-03-M009-105
SC液壓泵S10011-L3-03-M009-125
SC液壓泵S10011-L3-03-M009-195
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SC液壓泵L3/L3C系列的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關SC液壓泵L3/L3C系列更詳細的信息或者購買SC相關產品，請聯系愛澤工業。
