SC液壓泵10-5/D5系列產品特點及簡介
?高容量輸出
?保證性能
?多輸出容量
?簡單操作原則
?設計用于輕松維護
?操作壓力的范圍廣
10-5和D5系列泵具有5個直徑的空氣活塞和1個行程。有16種型號可供選擇，壓力高達55,000 psig。
當從0到額定液壓操作時，在100psi輸出下空氣消耗將約為28scfm的自由空氣。在較低的空氣壓力和較高的液壓壓力下，空氣消耗將與所示的流速成比例地降低。
安裝可以在任何位置，垂直優選。當安裝在倒置位置時，應設置排放旋塞以排出可能積聚在先導閥氣室中的任何液體。
D5系列“Dry Lube”泵與10-5系列相同，不同之處在于它是預先潤滑的，因此不需要空氣管路潤滑器。零件編號通過D5前綴將其與10-5系列區分開來，并使用實際比率而不是模型后綴中的數字代碼。
schydraulic-10-5pump
HIGH OUTPUT CAPACITY
GUARANTEED PERFORMANCE
MULTIPLE OUTPUT CAPACITIES
SIMPLE OPERATION PRINCIPLE
DESIGNED FOR EASY MAINTENANCE
WIDE RANGE OF OPERATING PRESSURES
10-5 & D5 Series pumps have a 5 " diameter air piston and a 1 " stroke. Sixteen models are available with pressures up to 55,000 psig.
When operating from 0 to rated hydraulic pressure, air consumption will be approximately 28 scfm of free air at 100 psi output. At lower air pressures and higher hydraulic pressures air consumption will be reduced proportionately to flow rates indicated.
Mounting may be in any position, vertical preferred. When mounting in an inverted position, a drain cock should be provided to drain off any liquid that may accumulate in the pilot valve air chamber.
he D5 Series "Dry Lube" pump is identical to the 10-5 Series except it is pre-lubricated and therefore does not require an air line lubricator. The part number distinguishes it from the 10-5 Series by the D5 prefix and using the actual ratio rather than a numerical code in the model suffix.
A型：這些型號在液壓組件中采用雙密封，密封件與大氣之間有泄漏，從而提供液壓密封泄漏的可視指示。用于從泵送的液壓流體中污染空氣馬達的情況。
B型：“B”型號具有底部入口連接，便于罐頂安裝或備用安裝配置。
C型：“C”型號在液壓組件中使用PTFE人字形填料，以便在其他填料與所用流體或極端溫度條件不兼容時獲得最佳性能?！癆”型改裝包含在所有“C”型號上，止回閥帶有PTFE O型圈。
H型：“H”型號采用液壓組件中的特殊填料，在液壓介質被異物污染的情況下實現最佳性能，從而使液壓密封件的壽命比標準O形圈密封件大得多?！癆”型修改包含在所有“H”型號上，止回閥帶有PTFE O形圈。
K型：該型號在氣動馬達組件中使用特殊的空氣活塞，可減少泵的行程，從而大限度地減小內力并延長氣動馬達的使用壽命。用于表現出快速壓力損失的應用，例如爆破測試。
R型：“R”型號配有隔離器附件，可防止液壓活塞在運行過程中縮回氣動馬達，從而使氣動馬達的液壓組件100％無污染。隔離器還可用作隔熱板。
A Models: These models utilize dual seals in the hydraulic assembly with a bleed-off between the seals to atmosphere, thus providing a visual indication of hydraulic seal leakage. Used where contamination of the air motor from the hydraulic fluid being pumped is objectionable.
B Models: The "B" models have a bottom inlet connection for convenient tank top installation or alternate mounting configuration.
C Models:The "C" Models utilize PTFE chevron packing in the hydraulic assembly for ultimate performance when other packing material is not compatible with the fluid used or because of extreme temperature conditions. The "A" modification is included on all "C" models and the check valves have PTFE o-rings.
H Models: The "H" Models utilize special packing in the hydraulic assembly for maximum performance where hydraulic fluid media is contaminated with foreign matter, thus providing for a much greater life expectancy from the hydraulic seals than with standard o-ring seals. The "A" modification is included on all "H" models and the check valves have PTFE o-rings.
K Models: This models utilize a special air piston in the air motor assembly which decreases the stroke of the pump, thus minimizing the internal forces and increasing air motor life. Used in applications exhibiting rapid pressure losses, such as burst testing.
R Models:The "R" Models are furnished with an isolator attachment which prevents the hydraulic piston retracting into the air motor during operation, thus providing for 100% non-contamination of the hydraulic assembly from the air motor. The isolator also acts as a heat barrier.

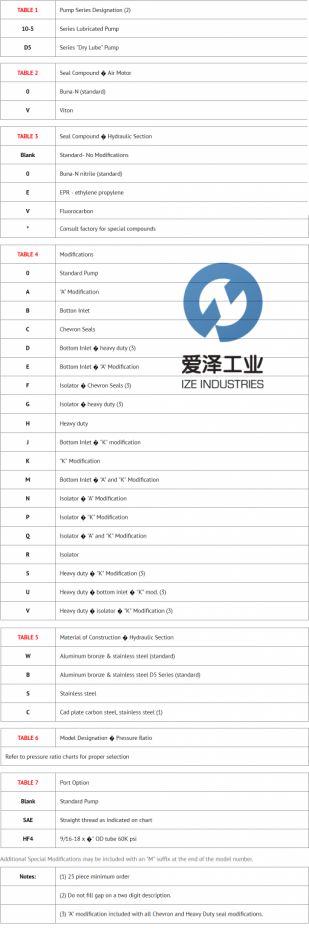

SC液壓泵10-5/D5系列選型參考

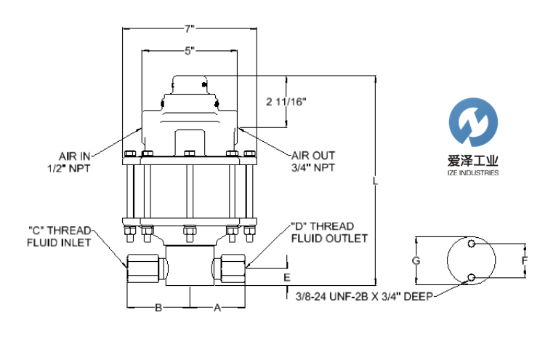

SC液壓泵10-5/D5系列外形尺寸

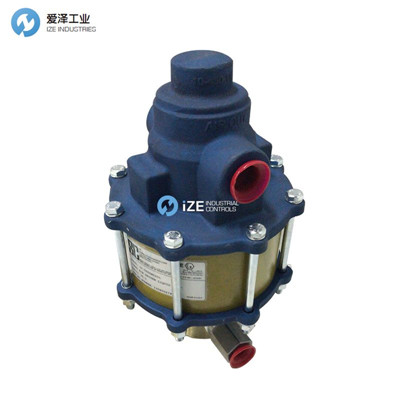

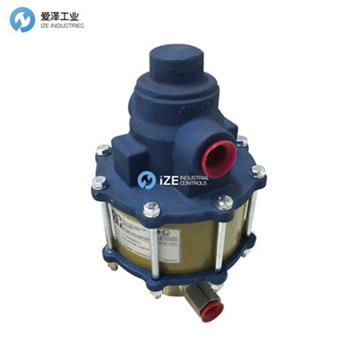

SC液壓泵10-5/D5系列 10-5000W020L
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SC液壓泵系列列表：
SC液壓泵10-5000W020L
SC液壓泵10-5000W02
SC液壓泵10-5-2
SC液壓泵10-5-020
SC液壓泵10-6000W020L
SC液壓泵10-6000W020
SC液壓泵10-6-2
SC液壓泵10-6-020
