德國SCHMITT電機DASR80SX2-798用于MPN系列泵頭
Materials and Components:
? Parts in contact with the medium are made solid of PVDF, (up to +95° C), or PP (up to +80° C)
? Housing seal alternatively made of FKM, EPDM, FEP or Kalrez?
? Slide bearings made of the materials PTFE/ceramic or SiC / SiC
? High-quality electric motors made in Germany
Material details:
? PVDF: Polyvinylidene Fluoride, Pure, milky white, not colored (up to +95° C)
? PP: Polypropylene, Fiber glass-reinforced, gray (up to +80° C)
? FKM: Viton? quality, -20...+200° C
? EPDM: Ethylene propylene diene M-class rubber, Food-safe (FDA, KTW,WRC), -40...+160° C
? FEP: Fluorinated ethylene propylene with Viton? or silicone core, -60…+200° C
? Kalrez?: High performance elastomere up to +315° C
? PTFE: Pure Tefl on?, fi ber glass or carbon fi ber reinforced
? Ceramic: Highly pure Al2O3-ceramic 99.7%
? SiC: Silicon carbide, without free silicon, sintered
Motor details:
Standard Motors (stock items):
Special design models (available):
? Three-phase motors: 230/400 V 3ph, 50 Hz, IP 55, insulation-class F or277/480 V 60 Hz also with PTC thermistor
? Alternating current motors: 230 V 1ph, 50/60 Hz, IP 55, Insulation class F
? Three-phase motors: spark arrested for combustible environments, explosionproof: EEx e II T3
? Three-phase motors, explosion proof, fl ameproof enclosure, EEx de II CT4
? Special voltages and frequencies
? 2-, 4- and 8-pole
? UL and CSA execution
? Special protection types (e.g. IP 65)
? High temperature designs
? Special insulation classes (e.g. tropical insulations)
? Multi area voltage (e.g. 220-290 / 380-500 V 50 Hz; 220-332 / 380-575 V 60 Hz.)
? Additional designs upon enquiry
德國SCHMITT電機DASR80SX2-798用于MPN系列泵頭

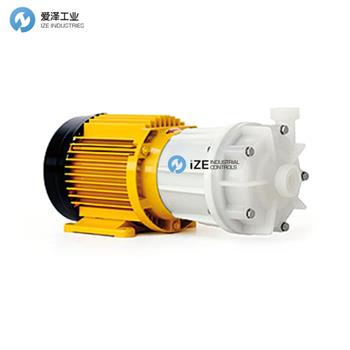

The normal priming centrifugal pump of the MPN series can be provided chemical resistant and heat resistant.
Normal priming, magnetically coupled centrifugal pumps
Materials: PVDF (polyvinylidene fluoride) or PP (polypropylene)
Hermetically sealed
Particularly suitable for high purity applications
Max. output rate: 400 l/min (106 US-gpm)
Max. discharge head: 32 m (105 ft)
Motor power: 0.18 - 3.0 KW (0.25 - 4.0 HP)
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號:
SCHMITT電機DASR80SX2-798用于MPN系列泵MPN 130
SCHMITT電機DASR80SX2-798用于MPN系列泵MPN 115
SCHMITT電機DASR80SX2-798用于MPN系列泵MPN 101
SCHMITT電機DASR80SX2-798用于MPN系列泵MPN 80
SCHMITT電機DASR80SX2-798用于MPN系列泵MPN 190
SCHMITT電機DASR80SX2-798用于MPN系列泵MPN 170
SCHMITT電機DASR80SX2-798用于MPN系列泵MPN 150
愛澤工業專業提供德國SCHMITT電機DASR80SX2-798用于MPN系列泵頭,德國SCHMITT等全系列產品。
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的首選渠道。
如果有任何關于德國SCHMITT電機DASR80SX2-798用于MPN系列泵頭的疑問,請隨時與我們聯系(021-31006702)。我們將盡全力解決您的問題。
有關德國SCHMITT更詳細的信息或者購買德國SCHMITT相關產品,請聯系愛澤工業。

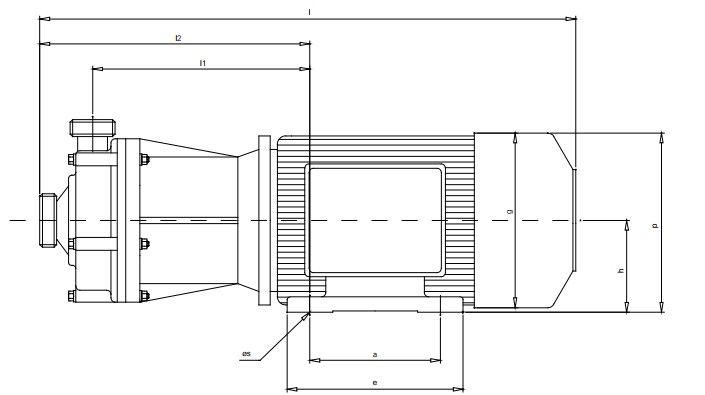

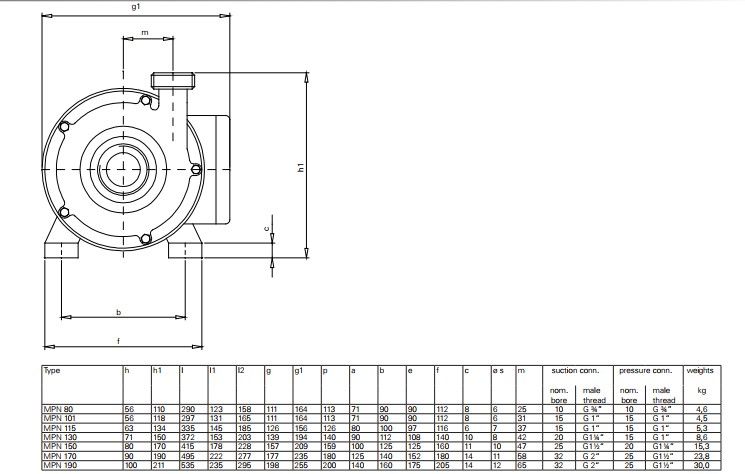

德國SCHMITT 化工泵MPN系列泵頭及電機參數
