ZANDER空氣過濾器ZP/XP/XP4系列技術參數
Materials used | |
Filter fabric | Borosilicate microfibre fabric coated with polypropylene homopolymer suppotr-fabric |
Drainage layer | Parafil-fibre fabric incorporated in the filter fabric |
Rid mesh | Stainless steel VA 1.4306 |
Endcaps | Plastic endcaps polyamide modified,glass-fibre-reinforced(up to size 3075),optional aluminium(size 5060,5075 standard) or stainless steel VA 1.4305 |
Sealing materials | NBR(Perbunan),optional FPM(Viton) |
Bonding materials | Polyurethane adhesive,solvent-free |
Temperature range | |
Nominal | +1℃ to +80℃ |
Maximum(short-term) | +1℃ to +100℃ |

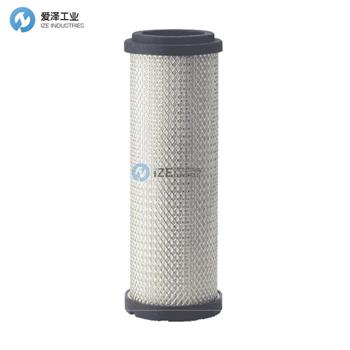

ZANDER空氣過濾器ZP/XP/XP4系列介紹
ZANDER 大容量 ZP、XP、XP4 過濾器被設計為聚結深度過濾器，因此能夠可靠地從壓縮空氣和氣流中分離出尺寸達 0.01 微米的液體和固體顆粒，過濾效率大于 99.99999%。
過濾器的核心是折疊的最多 4 層過濾織物，由涂層硼硅酸鹽微纖維織物組成，空隙體積超過 96%，周圍環繞著另一個由聚丙烯制成的過濾器和支撐織物。排水層由具有改進性能的創新型抗老化過濾材料組成，已包含在褶皺過濾織物中。因此，任何外部泡沫襪子都是多余的。濾布是機器生產的，因此質量始終如一。與相同尺寸的包裹元件相比，機器打褶可確保過濾器表面最多可使用四倍。通過打褶實現的過濾器表面的擴大導致通過過濾織物的速度降低，因此壓差降低，同時提高了納污能力和分離性能。
ZANDER high-capacity ZP, XP, XP4 filters are designed as coalescing depth filters and therefore reliably separate liquid and solid particles up to a size of 0.01um with a filtration efficiency of greater than 99.99999% from compressed air and gas streams.
The core of the filters is the pleated and up to 4-layer filter fabric consisting of a coated borosilicate microfibrefabric with a void volume of more than 96%,surrounded by another filter and support fabric made from polypropylene. The drainage layer, comprising an innovative ,ageing-resistant filter material with an improved performance, is already incorporated in the pleated filter fabric. As a result, any external foam sock is superfluous. The filter fabric is machine-produced and therefore of a consistently high quality. The machine pleating ensures that up to four times the filter surface is available compared to a wrapped element of the same size. The enlargement of the filter surface achieved by pleating results in a reduction of velocity through the filter fabric,and therefore in a reduction of differential pressure with simultaneous improvement of dirt holding capacity and separation behaviour.
ZANDER空氣過濾器XP系列其他常用型號：
ZANDER 1030XP
ZANDER 1050XP
ZANDER 1070XP
ZANDER 1140XP
ZANDER 2010XP
ZANDER 2020XP
ZANDER 2030XP
ZANDER 2050XP
ZANDER 3050XP
ZANDER 3075XP
ZANDER 5060XP
ZANDER 5075XP
ZANDER filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ZANDER空氣過濾器2030XP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ZANDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ZANDER空氣過濾器ZP/XP/XP4系列2030XP介紹
