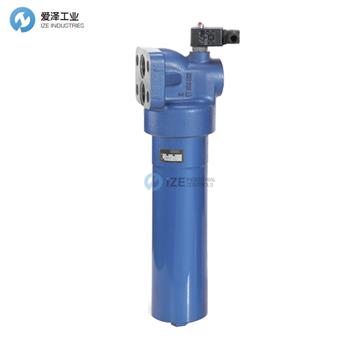

MAHLE過濾器PI3445-013產品參數
Technical specifications | |
Design: | flange filter |
Nominal pressure: Pi 3405-3411 | 350 bar (4980 psi) |
Pi 3415-3445 without bypass | 315 bar (4480 psi) |
Pi 3415-3445 with bypass | 250 bar (3560 psi) |
Test pressure: Pi 3405-3411 | 450 bar (6400 psi) |
Pi 3415-3445 without bypass | 410 bar (5830 psi) |
Pi 3415-3445 with bypass | 325 bar (4620 psi) |
Temperature range: | -10 °C to +120 °C (other temperature ranges on request) |
Bypass setting: | ? p 7 bar ± 10 % |
Filter head material: | GGG |
Filter housing material: | St |
Sealing material: | NBR/PTFE |
Maintenance indicator setting: | ? p 5 bar ± 10 % |
Electrical data of maintenance indicator: | |
Maximum voltage: | 250 V AC/200 V DC |
Maximum curent: | 1A |
Contact load: | 70 W |
Type of protection: | IP 65 in inserted and secured status |
Contact: | normally open/closed |
Cable sleave: | M20x1.5 |
MAHLE過濾器PI3000系列產品介紹
Nominal pressure 250/315/350 bar (3560/4480/4980 psi), nominal size up to 450 (also available with filter elements acc. to DIN 24550)
Features
High performance filters for modern hydraulic systems
Designed for control block mounting
Modular system
Compact design
Minimal pressure drop through optimal flow design
Visual/electrical/electronic maintenance indicator
Equipped with highly efficient glass fibre PS filter elements
Beta rated elements according to ISO 16889 multipass test
Elements with high differential pressure stability and dirt holding capacity
公稱壓力 250/315/350 bar (3560/4480/4980 psi)，公稱尺寸高達 450（也可提供符合 DIN 24550 的過濾器元件）
特征
適用于現代液壓系統的高性能過濾器
專為控制塊安裝而設計
模塊化系統
緊湊的設計
通過優化流量設計將壓降降至最低
視覺/電氣/電子維護指示器
配備高效玻璃纖維PS濾芯
符合 ISO 16889 多道測試的 Beta 級元件
具有高壓差穩定性和納污能力的元件
MAHLE過濾器PI3000系列其他常見型號：
MAHLE 77922008 Pi 3445-012
MAHLE 77922016 Pi 3445-013
MAHLE 77922024 Pi 3445-014
MAHLE 77922032 Pi 3445-015
MAHLE Filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAHLE過濾器PI3445-013的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAHLE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
