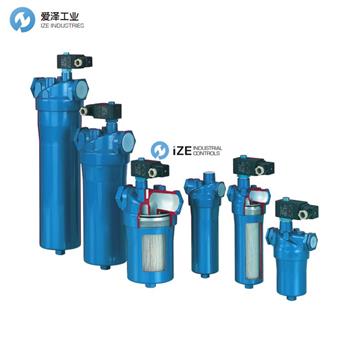

MAHLE 過濾器PI210系列產品參數
Technical specifications | |
Design: | line mounting filter |
Nominal pressure: Pi 2115 - Pi 2145 | 25 bar (360 psi) |
Pi 2105 - Pi 2111 | 63 bar (900 psi) |
Test pressure: Pi 2115 - Pi 2145 | 33 bar (470 psi) |
Pi 2105 - Pi 2111 | 82 bar (1170 psi) |
Temperature range: | -10 °C to +120 °C |
(other temperature ranges on request) | |
Bypass setting: | ? p 3.5 bar ± 10 % |
Filter head material: | GAL |
Filter housing material: | AL/St |
Sealing material: | NBR/AL |
Maintenance indicator setting: | ? p 2.2 bar ± 10 % |
Electrical data of maintenance indicator: | |
Maximum voltage: | 250 V AC/200 V DC |
Maximum current: | 1A |
Contact load: | 70 W |
Type of protection: | IP 65 in inserted and secured status |
Contact: | normally open/closed |
Cable sleave: | M20x1.5 |
MAHLE過濾器PI21系列產品介紹
The switching function can be changed by turning the electric upper part by 180° (normally closed contact or normally open contact). The state on delivery is a normally closed contact. By inductivity in the direct current circuit the use of suitable protection circuit should be considered. Further maintenance indicator details and designs are available in the maintenance indicator data sheet.
We draw attention to the fact that all values indicated are average values which do not always occur in specific cases of application. Our products are continually being further developed. Values, dimensions and weights can change as a result of this. Our specialized department will be pleased to offer you advice.
We recommend you to contact us concerning applications of our filters in areas governed by the EU Directive 94/9 EC (ATEX 95). The standard version can be used for liquids based on mineral oil (corresponding to the fluids in Group 2 of Directive 97/23 EC Article 9). If you consider to use other fluids please contact us for additional support.
可以通過將電氣上部旋轉180°（常閉觸點或常開觸點）來更改開關功能。交貨狀態為常閉觸點。通過直流電路中的電感，應考慮使用合適的保護電路。維護指示器數據表中提供了更多維護指示器的詳細信息和設計。
我們提請注意以下事實：所有指示的值都是平均值，在特定的應用情況下并不總是出現。我們的產品正在不斷發展。結果，值，尺寸和權重可能會發生變化。我們的專業部門將很高興為您提供建議。
我們建議您就我們的過濾器在歐盟指令94/9 EC（ATEX 95）管轄的區域中的應用聯系我們。標準版本可用于基于礦物油的液體（對應于指令97/23 EC第9條第2組中的液體）。如果您考慮使用其他液體，請聯系我們以獲得更多支持。
MAHLE過濾器PI210系列其他常見型號：
MAHLE PI2105-057
MAHLE PI2105-058
MAHLE PI2105-068
MAHLE PI2105-069
MAHLE PI2108-057
MAHLE PI2108-058
MAHLE PI2108-068
MAHLE PI2108-069
MAHLE Filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAHLE過濾器PI2105-068EPDM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAHLE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
MAHLE過濾器PI2105-068EPDM產品參數
