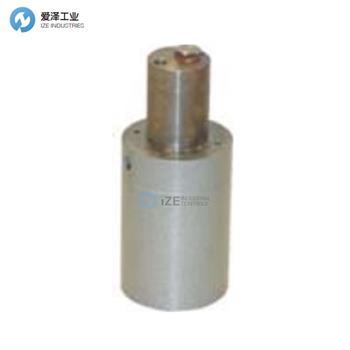

BEKA氣動泵單元2566系列產品參數
Specification | |
Output rate | 3 cm /stroke 3 9,5 cm /stroke 3 15 cm /stroke |
Ratio | with 3 cm /stroke 1 : 32 3 with 9,5 cm /stroke 1 : 12 3 with 15 cm /stroke 1 : 8 |
Flow pressure | 3 - 8 bar |
Lubricant | oil, 20 - 700 mm /s2 fluid grease (according to release list) |
Temperature range | medium 0 - 70°C ambient 0 - 40°C |
BEKA氣動泵單元2566系列產品介紹
技術說明
256型氣動泵通過動態計量閥提供6個潤滑點。
操作方法
活塞加壓后開始潤滑。
壓縮空氣的調節方式必須使溢流閥僅在計量閥潤滑后才打開。這樣可以確保所有計量閥都向潤滑點供應足夠的潤滑劑。
當3/2向電磁閥切換時，活塞被推入其原始位置。通過溢流閥將主管道的壓力降至<1 bar，計量閥將潤滑劑重新堆積，以備下次潤滑時使用。同時，潤滑劑從油箱中吸出，用于下一個沖程。
計量閥的總劑量不應超過泵的輸送量的60％。
Technical description
The pneumatic pump unit of type no. 256 supplies 6 the lubrication points via dynamic metering valves.
Method of operation
Lubrication starts when the piston is pressurized.
The compressed air has to be adjusted in a way that the pressure relief valve only opens when alI metering valves have lubricated. This ensures that all metering valves supply enough lubricant to the lub points.
When the 3/2-way solenoid valve switches, the piston is pushed into its original position. The main line is relieved down to < 1 bar by the relief valve and the metering valves restack the lubricant for the next lubrication pulse. At the same time, the lubricant is sucked out of the reservoir for the next stroke.
The metering valves’ total dosage should not exceed 60% of the pump’s delivery quantity.
選型參考
BEKA氣動泵單元2566系列其他常見型號：
BEKA 2566.03.00.000
BEKA 2566.09.00.000
BEKA 2566.15.00.000
