FLUTEC節流閥DRV系列技術描述
SPECIFICATIONS* | |
Operating pressure: | max. 350 bar |
Nominal flow: | DV- / DRV-06 max. 20 l/min |
Cracking pressure (DRV): | 0.5 bar |
Media operating temperature range: | min. -20 °C to max. +100 °C |
Ambient temperature range: | min. -20 °C to max. +100 °C |
Operating fluid: | Hydraulic oil to DIN 51524 Part 1, 2 and 3 |
Viscosity range: | min. 2.8 mm2/s to max. 800 mm2/s |
Filtration: | Class 21/19/16 according to ISO 4406 or cleaner |
Installation: | no orientation restrictions, preferably horizontal |
Materials: | Valve body: steel |
Weight: | DV-06 = 0.10 kg DRV-06 = 0.10 kg |
FLUTEC節流閥DRV-10產品介紹

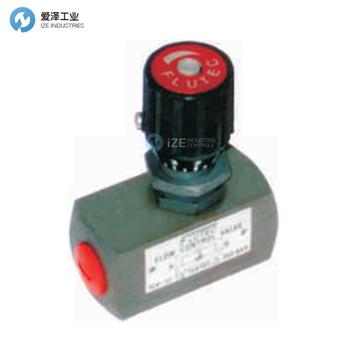

The needle valve with reverse flow check DRV-10 is a valve with throttle spindle and turning knob mounted in inline connection housing. When the turning knob is screwed out, the flow rate is increased - depending on viscosity and pressure.A check valve permits a free flow in the other direction. Pmax = 60 l/min Pmax = 350 bar
帶逆流止回閥的針閥DRV-10是一種帶節流閥主軸和旋鈕的閥，該閥安裝在串聯連接殼體中。擰下旋鈕后，流量會增加-取決于粘度和壓力。止回閥允許在另一個方向上自由流動。 Pmax = 60 l / min Pmax = 350bar

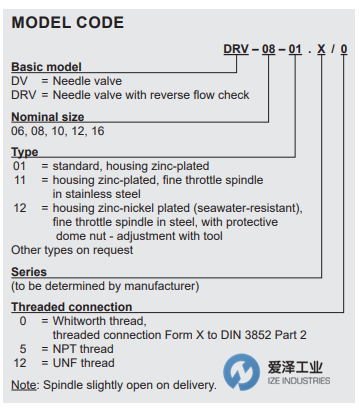

FLUTEC節流閥DRV系列選型參考
FLUTEC節流閥DRV系列其他常用型號：
FLUTEC DV-06-01.X/0 705002
FLUTEC DV-08-01.X/0 705014
FLUTEC DV-10-01.X/0 705026
FLUTEC DV-12-01.X/0 705038
FLUTEC DV-16-01.X/0 705050
FLUTEC DRV-06-01.X/0 705502
FLUTEC DRV-08-01.X/0 705514
FLUTEC DRV-10-01.X/0 705526
FLUTEC DRV-12-01.X/0 705538
FLUTEC DRV-16-01.X/0 705550
FLUTEC Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLUTEC節流閥DRV-10-01.X/0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FLUTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FLUTEC節流閥DRV-10-01.X/0規格描述
