HYDAC移動過濾單元MFU-15系列技術數據
Technical details | |
General data | |
Maximum flow rate | MFU-E / MFU-S: 15 l/min |
Pump type | Vane pump |
Maximum operating pressure | 4.0 bar |
Permitted suction pressure at suction port | -0.4 bar to + 0.6 bar |
Viscosity range | MFU-E: 5 … 350 mm2/s |
Length of power cable | 3 m (incl. plug) |
Length of signal cable (for standard type) | 10 m |
Permissible fluid temperature | -10 … +80 °C |
Permitted ambient temperature range | -10 to +40°C |
Seal material | FKM (FPM, Viton?) |
Empty weight | MFU-E: 14 kg |
HYDAC移動過濾單元MFU-15系列介紹及選型

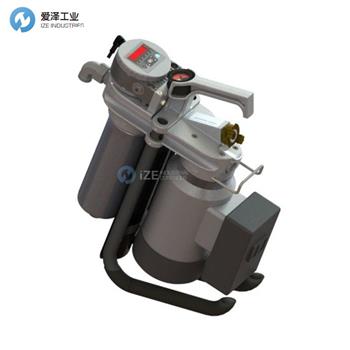

The MFU 15 MobileFiltration Unit is used as a portable service unit for filling hydraulic systems, flushing small hydraulic systems as well as for cleaning in bypass flow. Solid particle contamination as well as free water can be removed by the filter elements. The MFU 15 can also be fitted with a CS 1000 ContaminationSensor. This allows the solid particle contamination in the oil to be monitored at the same time. The cleanliness class results are displayed according to ISO, SAE or NAS classifications.
Improvement in service life for components and system filters
Increased oil service life
Increased machine availability
Simpleoperation
Compactdesign
Integrated dry running protection
MFU 15移動過濾裝置用作便攜式服務裝置，用于填充液壓系統，沖洗小型液壓系統以及用于清潔旁通流。固體顆粒污染物以及游離水可以通過過濾器濾除。MFU 15還可以配備CS 1000污染傳感器。這允許同時監測油中的固體顆粒污染。清潔度等級結果根據ISO，SAE或NAS分類顯示。
延長組件和系統過濾器的使用壽命
延長油品使用壽命
機器可用性更高
操作簡單
緊湊設計
集成的空運行保護
HYDAC移動過濾單元MFU系列其他型號列舉：
HYDAC MFU-15-SDN 4270478
HYDAC MFU-15-SDF 4270479
HYDAC MFU-15-SD5N 4270480
HYDAC MFU-15-SD5F 4270481
HYDAC MFU-15-SKDKN 4270482
HYDAC MFU-15-SKDKF 4270483
HYDAC MFU-15-SKDK5N 4270484
HYDAC MFU-15-SKDK5F 4270516
HYDAC MFU-15-SKDK-LF 4270559
HYDAC MFU-15-SKDK-SF 4270560
HYDAC MFU-15-SKDK-ZWF 4270518
HYDAC MFU-15-SKDK-ZPF 4270561
HYDAC MFU-15-SKDK-ZPWF 4270519
HYDAC Mobile filter unit NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC移動過濾單元MFU-15E9-SD-FE 4345804的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

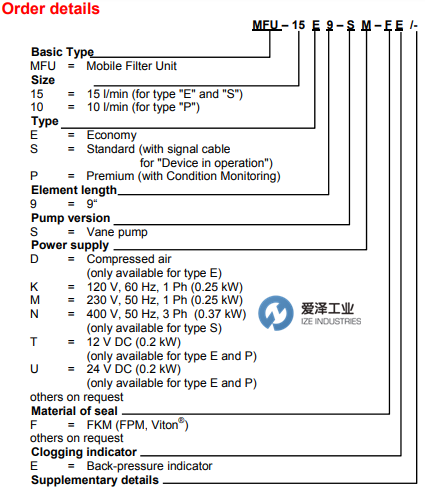

HYDAC移動過濾單元MFU-15E9-SD-FE 4345804規格描述
