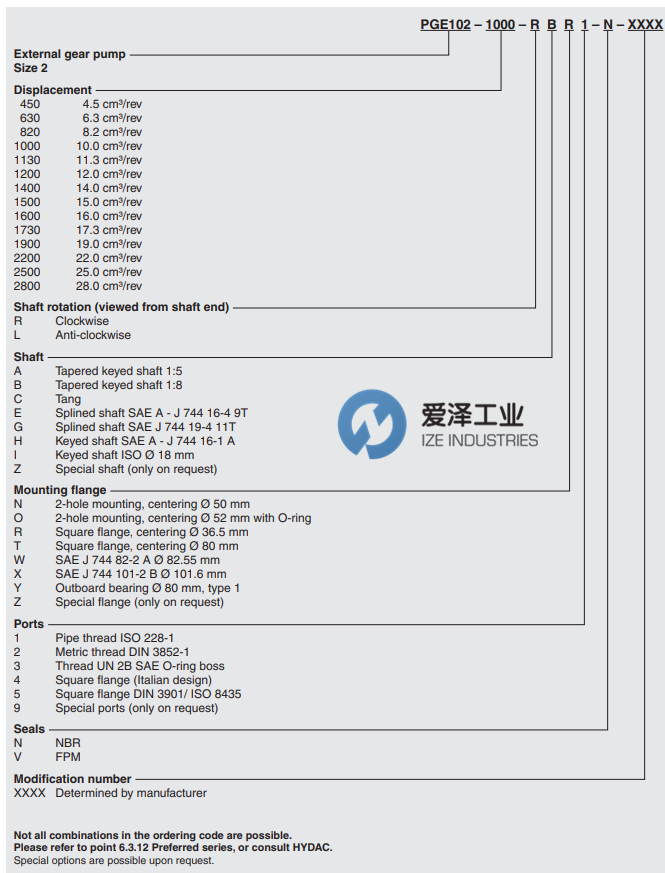

HYDAC泵PGE102-450-RAT5-N-3700型號解析
External gear pump | PGE102 |
Displacement | |
450 | 4.5 cm3/rev |
Shaft rotation (viewed from shaft end) | |
R | Clockwise |
Shaft | |
A | Tapered keyed shaft 1:5 |
Mounting flange | |
T | Square flange, centering ? 80 mm |
Ports | |
5 | Square flange DIN 3901/ ISO 8435 |
Seals | |
N | NBR |
Modification number | |
xxxx | Determined by manufacturer |

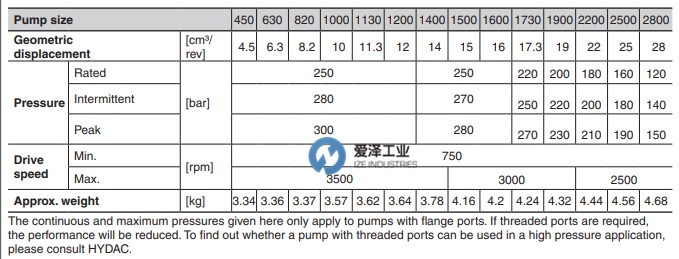

HYDAC泵PGE102系列選型
HYDAC泵PGE102系列介紹

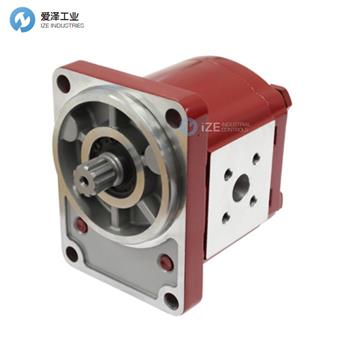

The PGE102 is the size 2 of External Gear Pump for open loop hydraulic systems.
Essential performance data:
Displacement from 4.5 cm3/rotation to 28 cm3/rotation
Plus, speed of up to 3500 rpm
Also, size 2 (see datasheet for all the dimensions)
Finally, normal operating viscosity: 16 – 200 cSt (mm2/s).
PGE102是外齒輪泵的尺寸2，用于開環液壓系統。
基本績效數據：
從4.5cm3/旋轉到28cm3/旋轉的位移
另外，速度高達3500 rpm
另外，尺寸為2（有關所有尺寸，請參見數據表）
最后，正常工作粘度：16 – 200 cSt（mm2/ s）。
HYDAC泵PGE102系列其他常用型號：
HYDAC PGE102-1130-RBR1-N-3700 *
HYDAC PGE102-1130-REW1-N-3700 *
HYDAC PGE102-1130-RHW1-N-3700 *
HYDAC PGE102-1400-RBR1-N-3700
HYDAC PGE102-1400-REW1-N-3700 *
HYDAC PGE102-1400-RHW1-N-3700 *
HYDAC PGE102-1600-RBR1-N-3700 *
HYDAC PGE102-1600-RHW1-N-3700 *
HYDAC PGE102-2200-RBR1-N-3700 *
HYDAC PGE102-2200-REW1-N-3700 *
HYDAC PGE102-2200-RHW1-N-3700 *
HYDAC PGE102-2800-RBR1-N-3700 *
HYDAC PGE102-2800-REW1-N-3700 *
HYDAC PGE102-2800-RHW1-N-3700 *
HYDAC PGE102-450-RBR1-N-3700 *
HYDAC PGE102-450-REW1-N-3700 *
HYDAC PGE102-450-RHW1-N-3700 *
HYDAC PGE102-820-RBR1-N-3700
HYDAC PGE102-820-REW1-N-3700 *
HYDAC PGE102-820-RHW1-N-3700 *
HYDAC pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC泵PGE102系列的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
HYDAC泵PGE102-450-RAT5-N-3700規格描述
