BUSAK+SHAMBAN格萊圈PG系列產品參數
Technical Data | |
Operating conditions | The Turcon? Glyd Ring? is recommended for reciprocating (with a length of stroke at least twice the groove width) and helical movements. |
Pressure: | Up to 60 MPa |
Speed: | Up to 15 m/s |
Frequency: | Up to 5 Hz. |
Temperature: | 45 °C to +200 °C *) (depending on O-Ring Material) |
Media: | Mineral oil based hydraulic fluids, flame retardant hydraulic fluids, environmentally safe hydraulic fluids (bio-oils), phosphate ester, water and others, depending on the seal and O-Ring material compatibility (see Table X) |
Clearance: | The maximum permissible radial clearance Smax is shown in the Table XI as a function of the operating pressure and functional diameter |
BUSAK+SHAMBAN格萊圈PG系列產品介紹

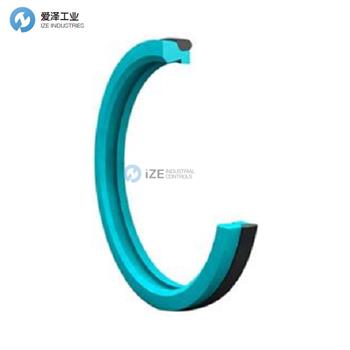

Tucon GlydRing成功使用了數十年，是一種非常有效且可靠的低摩擦密封。它特別適合在高壓和低壓系統中用作活塞密封。
雙作用Tucon GlydRing是基于Turcon的拖鞋密封件和通電的O型圈的組合。它采用過盈配合制造，與O形圈的擠壓一起即使在低壓下也可確保良好的密封效果。在較高的系統壓力下，O形圈會通過流體通電，從而以更大的力將Turcon GlydRing推向密封面。

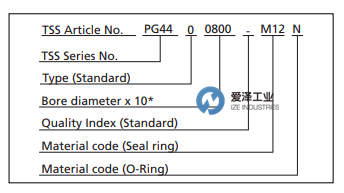

選型介紹
BUSAK+SHAMBAN格萊圈PG系列其他常見型號：
BUSAK+SHAMBAN PG4400080
BUSAK+SHAMBAN PG4400100
BUSAK+SHAMBAN PG4400120
BUSAK+SHAMBAN PG4400140
BUSAK+SHAMBAN PG4400150
BUSAK+SHAMBAN PG4600160
BUSAK+SHAMBAN PG4400160
BUSAK+SHAMBAN PG4600180
BUSAK+SHAMBAN PG4400180
BUSAK+SHAMBAN PG4400190
BUSAK+SHAMBAN PG4600200
BUSAK+SHAMBAN PG4400200
BUSAK+SHAMBAN PG4601500
BUSAK+SHAMBAN PG4601500-T05
BUSAK+SHAMBAN Back-up Ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUSAK+SHAMBAN格萊圈PG4601500-T05的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUSAK+SHAMBAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BUSAK+SHAMBAN格萊圈PG4601500-T05產品參數
