BUSAK+SHAMBAN(B+S)格萊圈PT0301000-T46N產品參數
Specifications | |
Bore Dia. DN H9 | 100 |
Groove Dia. d1 h9 | 84.5 |
Groove Width L1 +0.2 | 6.3 |
O-Ring Dimensions | 81.92 x 5.33 |
BUSAK+SHAMBAN(B+S)格萊圈PT0301000-T46N產品介紹
Turcon Glyd密封圈T是Turcon Glyd密封圈的進一步技術開發，已成功使用了數十年。
在所有新應用中，它可以與早期的Glyd密封圈完全互換。 Glyd Ring T符合經濟和生態方面的要求，可滿足所有市場對功能特定的密封解決方案的需求。
梯形輪廓橫截面的創新功能原理為獲得專利的密封概念帶來了好處。
兩個側面輪廓側面都傾斜，以使密封輪廓朝向密封表面逐漸變細。因此，該型材可以保持活塞密封件特有的堅固而緊湊的形式，而不會失去實現與壓力相關的最大壓縮所需的任何柔韌性。
Turcon Glyd Ring T is a further technical development of the Turcon Glyd Ring seal which has been successfully used for decades.
It is fully interchangeable with the earlier Glyd Ring seals in all new applications. Glyd Ring T meets all the market demands for a function-specific seal solution,observing economic and ecological aspects.
The benefits of the patented seal concept are provided by the innovative functional principle of the trapezoidal profile cross-section.
Both lateral profile flanks are inclined so that the seal profile tapers towards the seal surface. The profile can thus retain the robust and compact form typical of piston seals without losing any of the flexibility required to achieve a pressure-related maximum compression.

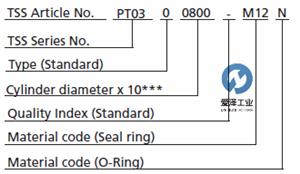

型號解析
BUSAK+SHAMBAN(B+S)格萊圈PT系列其他常見型號：
BUSAK+SHAMBAN(B+S) PT0400800
BUSAK+SHAMBAN(B+S) PT0300630
BUSAK+SHAMBAN(B+S) PT0200650
BUSAK+SHAMBAN(B+S) PT0200680
BUSAK+SHAMBAN(B+S) PT0200700
BUSAK+SHAMBAN(B+S) PT0300700
BUSAK+SHAMBAN(B+S) PT0200750
BUSAK+SHAMBAN(B+S) PT0300750
BUSAK+SHAMBAN(B+S) PT0200800
BUSAK+SHAMBAN(B+S) PT0300800
BUSAK+SHAMBAN(B+S) PT0400800
BUSAK+SHAMBAN(B+S) PT0300825
BUSAK+SHAMBAN(B+S) PT0300850
BUSAK+SHAMBAN(B+S) PT0301000
