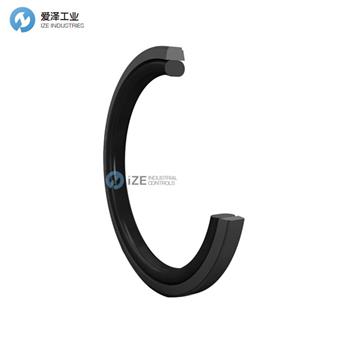

BUSAK+SHAMBAN(B+S)密封PT0200700-T40N產品參數
Installation Dimensions | |
Bore Diameter, DN H9 | 70.0 mm |
Groove Diameter, d1 h9 | 59.0 mm |
Groove Width, L1 +0.2 | 4.2 mm |
BUSAK+SHAMBAN(B+S)密封PT系列產品介紹
Description
TurconR Glyd RingR T is a further technical development of the TurconR Glyd RingR seal which has been successfully used for decades. It is fully interchangeable with the earlier Glyd RingR seals in all new applications. Glyd RingR T meets all the market demands for a function-specific seal solution, observing economic and ecological aspects.
The benefits of the patented seal concept are provided by the innovative functional principle of the trapezoidal profile cross-section.
Both lateral profile flanks are inclined so that the seal profile tapers towards the seal surface. The profile can thus retain the robust and compact form typical of piston seals without losing any of the flexibility required to achieve a pressure-related maximum compression (Figure 14).
Advantages
The benefits offered to date by the Glyd RingR are still retained in full, and are now complemented by a number of further important advantages:
- Very good static leak-tightness
- Increased clearance possible (approx. +50%),depending on the operating conditions
- Due to the larger extrusion gap, safe use even with soiled media
- Low friction, no stick-slip effect
- Simple groove design, one-piece pistons possible
- Installation grooves to ISO 7425/1
- Adaptable to the operating conditions due to a wide range of possible materials (TurconR, ZurconR)
- Suitable for new environmentally safe hydraulic fluids
- Available for all cylinder diameters up to 2.700 mm.
Application Examples
The TurconR Glyd RingR T is the recommended sealing element for double acting pistons of hydraulic components such as:
Injection moulding machines
Machine tools
Presses
Excavators
Forklifts & handling machinery
Agriculture
Valves for hydraulic & pneumatic circuits.
It is particularly recommended for heavy duty and large diameter applications.
描述
TurconR Glyd RingR T 是 TurconR Glyd RingR 密封件的進一步技術開發，該密封件已成功使用了數十年。在所有新應用中，它可以與早期的 Glyd RingR 密封件完全互換。 Glyd RingR T 滿足市場對特定功能密封解決方案的所有需求，同時兼顧經濟和生態方面。
獲得專利的密封概念的優勢在于梯形截面的創新功能原理。
兩個橫向輪廓側面都是傾斜的，因此密封輪廓朝向密封表面逐漸變細。因此，該輪廓可以保持活塞密封件典型的堅固緊湊形式，而不會失去實現與壓力相關的最大壓縮所需的任何靈活性（圖 14）。
優點
迄今為止，Glyd RingR 所提供的優勢仍然完全保留，并且現在還得到了許多其他重要優勢的補充：
- 非常好的靜態密封性
- 可能增加間隙（約 +50%），具體取決于操作條件
- 由于較大的擠出間隙，即使在臟污的介質中也能安全使用
- 低摩擦，無粘滑效應
- 簡單的凹槽設計，可實現一體式活塞
- 安裝槽符合 ISO 7425/1
- 由于可能的材料范圍廣泛（TurconR、ZurconR），因此可適應操作條件
- 適用于新型環保液壓油
- 適用于所有直徑達 2.700 毫米的圓柱體。
應用示例
TurconR Glyd RingR T 是推薦用于液壓元件的雙作用活塞的密封元件，例如：
注塑機
機械工具
壓力機
挖掘機
叉車和搬運機械
農業
用于液壓和氣動回路的閥門。
特別推薦用于重型和大直徑應用。
BUSAK+SHAMBAN(B+S)密封PT系列其他常見型號：
B+S PT0200700-T40N
B+S PT0401300
B+S PT0401350
B+S PT0401400
B+S PT0401450
B+S PT0401500
B+S PT0401550
B+S PT0401600
B+S PT0401650
B+S PT0401700
B+S PT0401750
B+S PT0401800
B+S PT0401900
B+S PT0402000
B+S PT0402050
