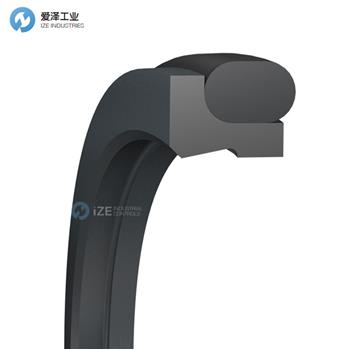

BUSAK+SHAMBAN(B+S)耐磨環GR7302650-C380產品參數
Serial No. | GR73 |
Rod Diameter1) dN h9 | 80 - 400.0 |
Groove Diameter D2 H8 | dN +5.00 |
Groove Width L2 +0.2 | 15.00 |
Ring Thickness W | 2.50 |
Ring Gap Z | Calculation of the linear length |
BUSAK+SHAMBAN(B+S)耐磨環產品介紹及選型
The purpose of polymer bearings is to guide the piston and rod within cylindrical applications, absorbing any transverse forces which may occur. They prevent metal-tometal contact, optimizing the performance of the sealing system.
Bearings are needed to protect primary seal components and hardware so optimum sealing performance and service life can be achieved.
Cost-effective, polymer bearings are very wearresistant, providing long service life. They offer high load bearing capacity in static and dynamic operation, have good friction characteristics and dampen mechanical vibrations. They also eliminate local stress concentrations, galling between components and hydrodynamic problems in the guide system. In addition, they protect against the diesel effect where combustion of pockets of oil vapor caused by rapid changes of pressure can damage seals.
Designs
Four different types of bearing materials under the brand name Slydring? are available depending on application demands:
- Highly wear-resistant, low-friction, specially modified Turcon? PTFE based materials. For low to medium loads.
- Orkot? fabric composite materials for high loads and transverse forces.
- Zurcon? high-modulus thermoplastic provides long service life in high loads and temperatures.
- HiMod? high-modulus thermoplastic for use in extreme working conditions.
Bearing Features
Though bearings appear to be simple in design, their function of preventing metal-to-metal contact within a sealing system is complex. Selection of the correct material and configuration is critical to ensure optimized performance and service life.
聚合物軸承的目的是在圓柱形應用中引導活塞和桿，吸收可能發生的任何橫向力。它們防止金屬與金屬的接觸，優化密封系統的性能。
需要軸承來保護主要密封組件和硬件，從而實現最佳密封性能和使用壽命。
具有成本效益的聚合物軸承非常耐磨，使用壽命長。它們?cè)陟o態和動態操作中提供高承載能力，具有良好的摩擦特性并抑制機械振動。它們還消除了局部應力集中、部件之間的磨損和導向系統中的流體動力學問題。此外，它們還可以防止柴油效應，因?yàn)閴毫焖僮兓鸬挠驼羝紵龝?huì)損壞密封件。
設計
根據應用需求，可提供四種不同類型的 Slydring? 品牌軸承材料：
- 高度耐磨、低摩擦、特別改性的 Turcon? PTFE 基材料。適用于中低負載。
- Orkot? 織物復合材料，適用于高載荷和橫向力。
- Zurcon? 高模量熱塑性塑料在高負荷和高溫下提供長使用壽命。
- HiMod? 高模量熱塑性塑料，適用于極端工作條件。
軸承特點
盡管軸承的設計看似簡單，但它們?cè)诿芊庀到y(tǒng)內防止金屬與金屬接觸的功能卻很復雜。選擇正確的材料和配置對于確保優化的性能和使用壽命至關重要。
BUSAK+SHAMBAN(B+S)耐磨環其他常見型號：
BUSAK+SHAMBAN GR7302650-C380
BUSAK+SHAMBAN GR7502000
BUSAK+SHAMBAN GR7302100
BUSAK+SHAMBAN GR7302200
BUSAK+SHAMBAN GR7502200
BUSAK+SHAMBAN GR7502300
BUSAK+SHAMBAN GR7502400
BUSAK+SHAMBAN GR7302500
BUSAK+SHAMBAN GR7502500
BUSAK+SHAMBAN GR7302800
BUSAK+SHAMBAN GR7502800
BUSAK+SHAMBAN GR9802800
BUSAK+SHAMBAN GR7503000
BUSAK+SHAMBAN(B+S) Sealing ring NEW + ORIGINAL+ ONE YEAR WARRANTY
