BUSAK+SHAMBAN(B+S)耐磨環GP7301600-C380產品參數
Specifications | |
Bore Diameter, DN H9 | 160.0 mm |
Groove Diameter d2 h8 | 155.0 mm |
Groove Width L2 +0,2 | 15.0 mm |
Thickness W | 2.5 mm |
Hardness Nominal | 90.0 |
Hardness Tolerance | +/- 5 |
Hardness Unit | Rockwell M |
Color | Turquoise |
Specific Gravity | 1.25 g/cm3 |
Gravity Tolerance | +/-0.10 g/cm3 |
Conform to ISO 10766 (preferred for use) | yes |
BUSAK+SHAMBAN(B+S)耐磨環GP系列產品介紹
織物增強復合材料的OrkotSlydring用于暴露在高負載下的液壓缸，例如在移動液壓和壓力機中。高抗壓強度、良好的滑動性能和優異的耐磨性能確保了使用壽命長。
織物復合材料作為標準材料生產，預成型到預定直徑并準備好安裝。它是用斜切制造的，已經有了必要的間隙“Z1”。

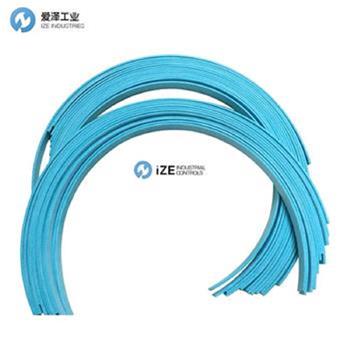

OrkotC380是一種綠松石色的復合材料，由熱固性聚合物制成，由細塑料網和浸漬在材料中的潤滑劑添加劑增強。它是最通用的；適用于所有常用的液壓流體，如礦物油或合成油，以及水基流體。它是一種優良的電絕緣材料，在各種介質中具有增強的滑動特性。
OrkotSlydring廣泛用作重型液壓設備的軸承元件：
-液壓執行機構
-移動液壓系統
-挖掘機
-施工設備
-林業機械
-采礦
-鋼廠
-印刷機
-水閘
-海洋工程
Orkot Slydring of fabric reinforced composite materials is used in hydraulic cylinders exposed to high loads that can occur e.g. in mobile hydraulics and presses. The high compressive strength, good sliding behaviour and the exceptional wear resistant properties ensure a long service life.
fabric composite materials is produced as standard preformed to the intended diameter and ready-to-fit. It is manufactured with an angle cut and already has the necessary gap "Z1".
Orkot C380 is a turquoise colored composite material made of a thermosetting polymer,reinforced by a fine plastic mesh and lubricant additives impregnated throughout the material. It is most versatile; suitable for all commonly used hydraulic fluids such as mineral or synthetic oils,as well as water based fluids. It is an excellent electrical insulator and features enhanced sliding properties in various media.
Orkot Slydring is widely used as a bearing element for heavy duty hydraulic equipment:
- Hydraulic actuators
- Mobile hydraulics
- Excavators
- Construction equipment
- Forestry machinery
- Mining
- Steel mills
- Presses
- Water locks
- Marine engineering

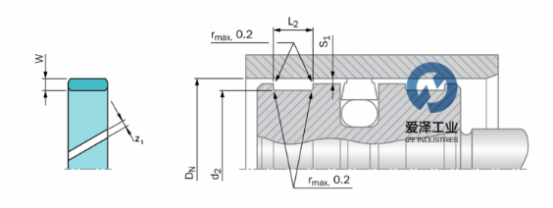

外觀尺寸
BUSAK+SHAMBAN(B+S)耐磨環GP系列其他常見型號：
BUSAK+SHAMBAN(B+S) GP7300550-C380
BUSAK+SHAMBAN(B+S) GP7300750-C380
BUSAK+SHAMBAN(B+S) GP7300800-C380
BUSAK+SHAMBAN(B+S) GP7300850-C380
BUSAK+SHAMBAN(B+S) GP7301000-C380
BUSAK+SHAMBAN(B+S) GP7301100-C380
BUSAK+SHAMBAN(B+S) GP7301150-C380
BUSAK+SHAMBAN(B+S) GP7301200-C380
BUSAK+SHAMBAN(B+S) GP7301250-C380
BUSAK+SHAMBAN(B+S) GP7301300-C380
