BUSAK+SHAMBAN(B+S) K型特康斯特封RSK301600-T46N產品參數
Specifications | |
Rod Diameter, dN f8/h9 | 160.0 mm |
Groove Diameter, D1 H9 | 175.1 mm |
Groove Width, L1 +0.2 | 6.3 mm |
O-Ring Size | 164.47 x 5.33 mm |
O-Ring TSS Article No. | ORAR00363 |
Correspond to recommendation of ISO 3320 | yes |
Min. Temperature | -30.0 °C |
Max. Temperature | 100.0 °C |
Speed max. | 15.0 m/s |
Pressure max. | 50.0 MPa |
cBUSAK+SHAMBAN(B+S) K型特康斯特封RSK301600-T46N產品介紹
桿式密封件在所有運行條件下均不得向大氣側動態泄漏，并且在機器靜止時必須完全靜態密封。
此外，它們應通過低摩擦來達到較高的機械效率，并易于安裝在小凹槽中。成本和使用壽命必須滿足操作員的期望。
活塞桿密封件Turcon Stepseal2K最能滿足這些理想要求。自從第一個Stepseal獲得專利以來，特瑞堡密封系統通過不斷的創新使該系列在技術上保持卓越。 TurconStepseal2K標志著最新的發展。
Stepseal的引入使得可以依次布置多個密封件，從而允許創建靜態和動態緊密的雙作用串聯密封件配置，同時避免干擾中間壓力的建立。單作用密封元件由具有卓越的滑動和耐磨性能的高檔Turcon材料制成。它根據ISO 7425-2和Trelleborg Sealing Solutions標準凹槽進行安裝，并使用O形圈作為激勵元件。
Rod seals must exhibit no dynamic leakage to the atmosphere side under all operating conditions and must be statically completely leak tight when the machine is at a standstill.
Furthermore, they should achieve a high degree of mechanical efficiency through low friction and be easy to install in small grooves. Costs and service life must meet the high expectations of the operator.
The rod seal Turcon Stepseal 2K comes closest to satisfying these ideal demands. Since the first Stepseal was patented, Trelleborg Sealing Solutions has maintained the series as technically outstanding through continuous innovation. Turcon Stepseal 2K marks the latest development.
The introduction of Stepseal made it possible to arrange several seals in sequence thus allowing statically and dynamically tight double-acting tandem seal configurations to be created while avoiding disturbing build-up of intermediate pressure. The single-acting seal element is made of high-grade Turcon materials with outstanding sliding and wear resistance properties. It is installed according to ISO 7425-2 and Trelleborg Sealing Solutions standard grooves, using an O-Ring as energizing element.

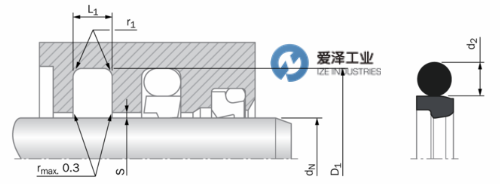

外觀尺寸
BUSAK+SHAMBAN(B+S) K型特康斯特封RS丨RSK系列其他常見型號：
BUSAK+SHAMBAN(B+S) RSK300300-M12N
BUSAK+SHAMBAN(B+S) RSK300300-M12V
BUSAK+SHAMBAN(B+S) RSK300300-T46N
BUSAK+SHAMBAN(B+S) RSK300300-T46V
BUSAK+SHAMBAN(B+S) RSK300380-M12N
BUSAK+SHAMBAN(B+S) RSK300380-M12V
BUSAK+SHAMBAN(B+S) RSK300380-T46N
BUSAK+SHAMBAN(B+S) RSK300380-T46V
BUSAK+SHAMBAN(B+S) RSK300400-M12N
BUSAK+SHAMBAN(B+S) RSK300400-M12V
BUSAK+SHAMBAN(B+S) RSK300400-T46N
BUSAK+SHAMBAN(B+S) RSK300400-T46V
