BUSAK+SHAMBAN V型環TWVA05500-VDT50技術參數
| |

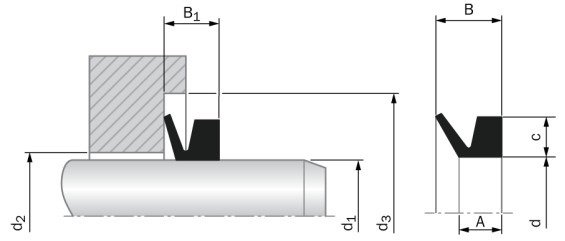

Installation Dimensions: | |
For shaft diameter, d1 | 530 - 580 mm |
Inside diameter d | 495.0 mm |
Height of cross section c | 15.0 mm |
Dimensions A | 14.3 mm |
Free Width, B | 25.0 mm |
Maximum, d2 | d1 + 10 mm |
Minimum, d3 | d1 + 45 mm |
Fitted width, B1 | 20.0 ±4.0 mm |
Material Properties: | |
Maximum Operating Temperature | 175.0 °C |
Minimum Operating Temperature | -30 °C |
Hardness Nominal | 65.0 |
Hardness Tolerance | +/- 5 |
Hardness Unit | Shore A |
Color | Black |
Seal Capabilities: | |
Min. Temperature | -25.0 °C |
Max. Temperature | 150.0 °C |
Speed max. | 10.0 m/s |
Pressure max. | 0.0 MPa |

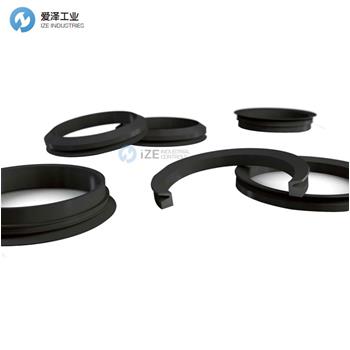

BUSAK+SHAMBAN V型環TWVA系列介紹
V型圈是防止灰塵，灰塵，水或這些介質混合進入的優選密封之一，同時可有效保留油脂. V -Ring的獨特設計和性能可與多種軸承類型一起使用。它也可以用作輔助密封件，以保護在惡劣環境下無法正常工作的主要密封件。
The V-Ring is the perfect seal to prevent the ingress of dirt, dust, water or combinations of these media while positively retaining grease.With its unique design and performance the VRing can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
BUSAK+SHAMBAN V型環TWVA系列其他常用型號：
BUSAK+SHAMBAN TWVA05500-VDT50
BUSAK+SHAMBAN TWVA02000
BUSAK+SHAMBAN TWVA02200
BUSAK+SHAMBAN TWVA02500
BUSAK+SHAMBAN TWVA02750
BUSAK+SHAMBAN TWVA03000
BUSAK+SHAMBAN TWVA03250
BUSAK+SHAMBAN TWVA03500
BUSAK+SHAMBAN TWVA03750
BUSAK+SHAMBAN TWVA04000
BUSAK+SHAMBAN TWVA04500
BUSAK+SHAMBAN TWVA05000
BUSAK+SHAMBAN TWVA05500
BUSAK+SHAMBAN TWVA06000
BUSAK+SHAMBAN TWVA06500
BUSAK+SHAMBAN TWVA07000
BUSAK+SHAMBAN TWVA07250
BUSAK+SHAMBAN TWVA07500
BUSAK+SHAMBAN TWVA08000
BUSAK+SHAMBAN ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUSAK+SHAMBAN V型環TWVA05500-VDT50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUSAK+SHAMBAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BUSAK+SHAMBAN V型環TWVA05500-VDT50技術規格
