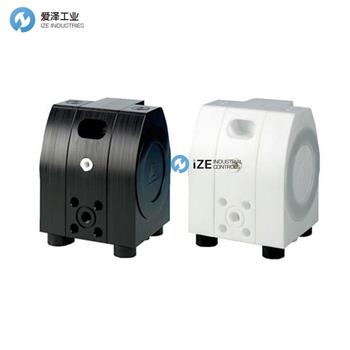

ALMATEC隔膜泵E系列參數介紹
Technical Data | |||||||
PUMP SIZE | E 08 | E 10 | E 15 | E 25 | E 40 | E 50 | |
Dimensions, mm (in.) | Length | 88 (3.5) | 110 (4.3) | 166 (6.5) | 220 (8.7) | 304 (12.0) | 399 (15.7) |
Width | 128 (5.0) | 147 (5.8) | 189 (7.4) | 255 (10.0) | 353 (13.9) | 430 (16.9) | |
Height | 129 (5.1) | 169 (6.7) | 240 (9.4) | 320 (12.6) | 432 (17.0) | 552 (21.7) | |
Nominal port size | NPT | 1/4" | 3/8" | 1/2" | 1" | 1 1/2" | 2" |
Air connection | BSP | R 1/8 | R 1/8 | R 1/4 | R 1/4 | R 1/2 | R 1/2 |
Weight, kg (lb) | PE | - | - | 7 (15) | 15 (33) | 34 (75) | 66 (146) |
PTFE | 2 (4) | 5 (11) | 12 (26) | 29 (64) | 69 (152) | 131 (289) | |
Max. particle size of solids for pumps with ball valves | mm (in.) | 2 (0.08) | 3 (0.12) | 4 (0.16) | 6 (0.24) | 9 (0.35) | 11 (0.43) |
Suction Lift Dry, mWC (ft) | Cylinder Valves | 1 (3.3) | 2 (6.6) | 3 (9.8) | 4 (13.1) | 5 (16.4) | 5 (16.4) |
Suction Lift Dry, mWC (ft) | Ball Valves | 0,5 (1.6) | 1 (3.3) | 2 (6.6) | 3 (9.8) | 4 (13.1) | 4 (13.1) |
Suction Lift Wet, mWC (ft) | 9 (29.5) | 9 (29.5) | 9,5 (31.2) | 9,5 (31.2) | 9,5 (31.2) | 9,5 (31.2) | |
Max. driving and operating pressure | bar (psig) | 7 (100) | 7 (100) | 7 (100) | 7 (100) | 7 (100) | 7 (100) |
Max. operating temperature, °C (F) | PE | - | - | 70 (158) | 70 (158) | 70 (158) | 70 (158) |
PTFE | 100 (212) | 100 (212) | 120 (248) | 120 (248) | 120 (248) | 120 (248) | |
Max Capacities | 0.9 m3/h | 1.4 m3/h | 3.4 m3/h | 8 m3/h | 20 m3/h | 36 m3/h | |
15 l/min | 23 l/min | 55 l/min | 130 l/min | 330 l/min | 600 l/min | ||
4 gpm | 6 gpm | 15 gpm | 35 gpm | 88 gpm | 160 gpm | ||
These technical data apply to Almatec E-Series standard pumps without optional equipment and dampers. | |||||||
ALMATEC隔膜泵E系列介紹
E系列的開發基于對可靠泵模型的廣泛經驗。堅固的設計，獨特的壁厚，法蘭連接能力，環緊固結構和更多的結構特點，可滿足客戶對安全性，質量和可靠性的要求。可選設備提供六種尺寸的泵，可滿足市場上的大多數應用。脈沖阻尼器有旋裝式和法蘭式兩種。

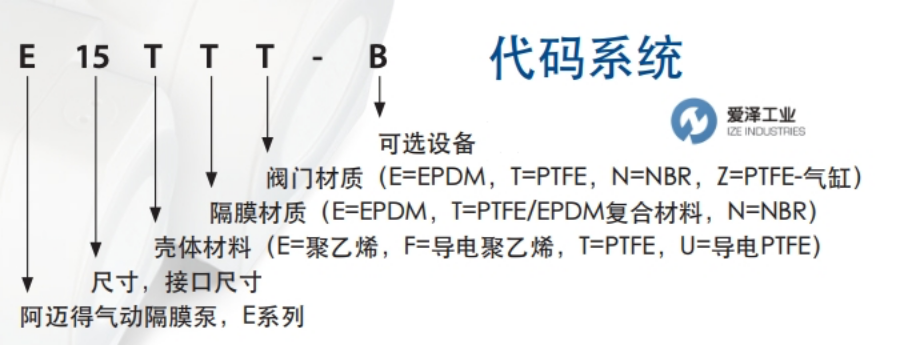

ALMATEC隔膜泵E系列型號解析
ALMATEC隔膜泵E系列其他常用型號：
ALMATEC E25ENN-F5
ALMATEC E08ETT
ALMATEC E08TTT
ALMATEC E10ETT
ALMATEC E10TTT
ALMATEC E10TTZ
ALMATEC E15ETT
ALMATEC E15TTT
ALMATEC E15TTZ
ALMATEC E15FTZ
ALMATEC E25ETT
ALMATEC E25TTT
ALMATEC E25TTZ
ALMATEC E25FTZ
ALMATEC E40ETT
ALMATEC E40TTT
ALMATEC E40TTZ
ALMATEC E40FTZ
ALMATEC E50ETT
ALMATEC E50TTT
ALMATEC E50TTZ
ALMATEC E50FTZ
ALMATEC Diaphragm pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ALMATEC隔膜泵E40TTT的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ALMATEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ALMATEC隔膜泵E系列 E40TTT參數描述
