GO濾芯F6K101700-3I1規格介紹
Seal Material | Maximum Temperature | Operating Inlet Pressure |
Viton? | 70° F (20° C) | 6,000 psig (41.37 MPa) |
175 ° F (80° C) | 3,600 psig (24.82 MPa) | |
PTFE | 70° F (20° C) | 6,000 psig (41.37 MPa) |
150° F (66° C) | 3,600 psig (24.82 MPa) |
GO濾芯F6K系列介紹

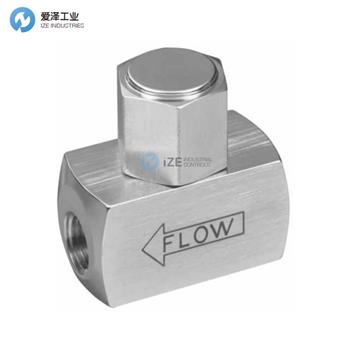

The F-6K in-line or bypass fi lter has been designed with bar stock construction to provide reliable and economical fi ltration of streams having pressures up to 6,000 psig (41.37 MPa) at 70° F (20° C).
Materials of construction (standard) are 316 stainless steel and PTFE for maximum service capability at economical prices. If a greater level of corrosion protection is required, this unit can be made (option) from Monel? or Hastelloy? C-276. The sintered 316 stainless steel fi lter element, with fi ltration ranges between 2 and 55 microns (μ), can be easily changed without removing the fi lter from the line. Standard connections are ?? FNPT. The optional bypass port is standard as 1?8? FNPT.
Features & Specifi cations
? Nominal ratings of fi ltration available:
2–5μ sintered 316 stainless steel
5–9μ sintered 316 stainless steel
10–15μ sintered 316 stainless steel
20–30μ sintered 316 stainless steel
40–55μ sintered 316 stainless steel
100μ 316 stainless steel mesh
150μ 316 stainless steel mesh
? Available with optional bypass
F-6K在線或旁路過濾器采用棒料結構設計，可在70°F（20°C）下對壓力高達6,000 psig（41.37 MPa）的料流進行可靠而經濟的過濾。
結構材料（標準）是316不銹鋼和PTFE，以經濟的價格提供最大的服務能力。如果需要更高水平的腐蝕防護，則可以從Monel?或Hastelloy?C-276制造（選配）此單元。過濾范圍在2到55微米（μ）之間的316不銹鋼燒結過濾器元件可以輕松更換，而無需從生產線上移除過濾器。標準連接為??FNPT?？蛇x的旁路端口是標準的1?8? FNPT。
功能和規格
?可用的名義過濾等級：
2–5μ燒結316不銹鋼
5–9μ燒結316不銹鋼
10–15μ燒結316不銹鋼
20–30μ燒結316不銹鋼
40–55μ燒結316不銹鋼
100μ316不銹鋼網
150μ316不銹鋼網
?可選旁路

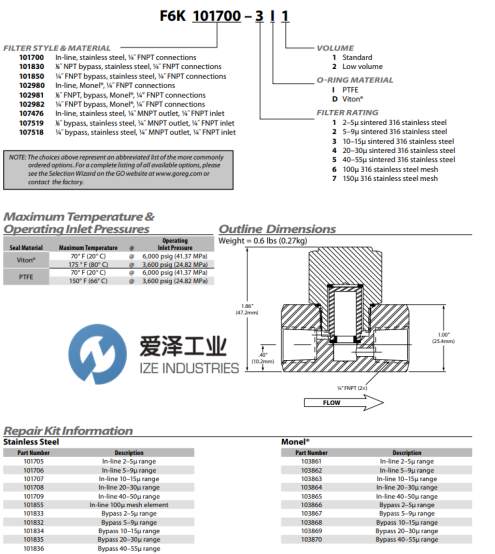

GO濾芯F6K系列選型表及尺寸圖
GO濾芯F6K系列型號
GO F6K101700-3I1
GO F6K101700-3I2
GO F6K101700-3I2
GO F6K101700-3D2
GO Filter element NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GO濾芯F6K101700-3I1的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for GO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
GO濾芯F6K101700-3I1參數介紹
