BUSAK+SHAMBAN(B+S)格萊圈TG5201250-Z80V產品參數

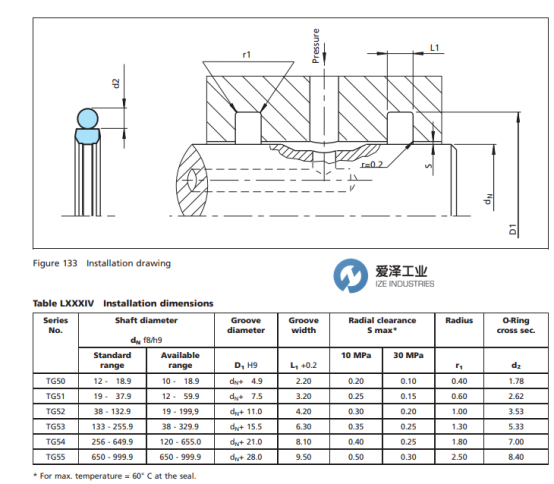

Shaft diameter dN f8/h9: | 125.0 |
Groove diameter D1 H9: | 136.0 |
Groove width L1 +0.2: | 4.2 |
TSS Part No.: | TG5201250 |
O-Ringsize : | 129.77 x 3.53 |
BUSAK+SHAMBAN(B+S)格萊圈TG系列產品介紹

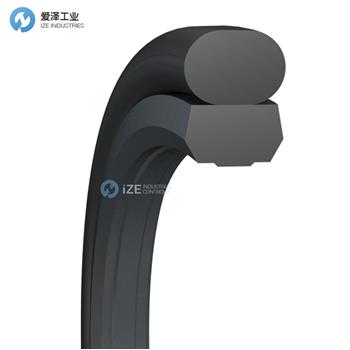

The Zurcon Roto Glyd Ring S is used to seal shafts, axles, bores, rotary transmission leadthroughs, journals, swivels etc. with rotary or oscillating movement.
The seal is double-acting and can be exposed to pressure from one, or from both sides.
Application examples
- For sealing shafts, axels and rotary transmission leadthroughs with slow rotary or oscillating movement
- Can also be used to seal rotary joints at increased rotating speeds even when exposed to pressure, e.g. rotary indexing tables
- Rotary connections with swivel movement, even when exposed to high pressure, e.g. damping units
Advantages
- Available for shaft and bore sealing applications
- Low friction
- Stick-slip-free starting, no sticking
- High abrasion resistance and dimensional stability
- Simple groove design, small groove dimensions
- Available in material Z51 and Z52 for all shaft sizes up to 2200 mm diameter and for all bore sizes up to 2300 mm
- Available in material Z80 for all shaft sizes up to 2600 mm diameter and for all bore sizes up to 2700 mm
Zurcon Roto Glyd Ring S 用于密封旋轉或擺動運動的軸、軸、孔、旋轉傳動裝置、軸頸、轉環等。
密封件是雙作用的，可以承受來自一側或兩側的壓力。
應用實例
- 用于密封慢速旋轉或擺動運動的軸、軸和旋轉傳動裝置
- 也可用于以更高的轉速密封旋轉接頭，即使在壓力下，例如旋轉分度臺
- 具有旋轉運動的旋轉連接，即使暴露在高壓下，例如阻尼單元
好處
- 可用于軸和孔密封應用
- 低摩擦
- 無粘滑啟動，不粘連
- 高耐磨性和尺寸穩定性
- 簡單的凹槽設計，小凹槽尺寸
- 提供Z51和Z52材料，適用于直徑最大2200毫米的所有軸尺寸和最大2300毫米的所有孔尺寸
- 可提供 Z80 材料，適用于直徑最大為2600毫米的所有軸尺寸和最大為2700毫米的所有孔尺寸
選型
BUSAK+SHAMBAN(B+S)格萊圈TG系列其他常見型號：
BUSAK+SHAMBAN TG5201250-Z51N
BUSAK+SHAMBAN TG5201250-Z51T
BUSAK+SHAMBAN TG5201250-Z52N
BUSAK+SHAMBAN TG5201250-Z52T
BUSAK+SHAMBAN TG5201250-Z80N
BUSAK+SHAMBAN TG5201250-Z80T
BUSAK+SHAMBAN TG5201250-Z80V
