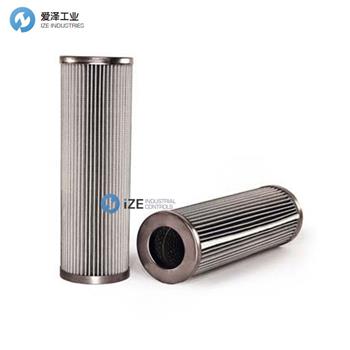

MAHLE 濾芯PI23006RNPS10產品參數
Dimensions | |
Outer Diameter (in) | 2.28 in. |
Height (in) | 6.22 in. |
Flow Rate (gallons/minute) | 16.64 gal/min |
Outer Diameter (mm) | 58 mm |
Height (mm) | 158 mm |
Flow Rate (liters/minute) | 63 l/min |
Performance Specifications | |
Micron Rating | 10μ |
Temperature Rating | -10°C to +120°C |
Differential Pressure (PSI) | 290.08 PSI |
Differential Pressure (bar) | 20 bar |
Additional Specifications | |
Media Material | Multilayer Micro Glass Fiber |
Endcap | Metal |
Sealing Function | Radial |
MAHLE濾芯PI23006RNPS10產品介紹
用于液壓和潤滑油過濾的濾清組濾芯具有PulseShield多層褶皺星形結構和外護套，與傳統濾芯相比，其濾塵能力高達30％，具有更好的清潔性能和更低的壓差。這些過濾器元件的多層設計可實現廣泛的應用范圍和高容塵量。即使在增加壓差的情況下，濾芯的過濾性能也保持恒定，即使在脈動負載下也能提供最大的保護。過濾器使用壽命長，流阻低，可確保最佳，經濟的應用。這些過濾器元件可用于Filtration Group過濾器外殼，也可根據其他制造商外殼的規格定制。
多層微玻璃纖維高性能一次性過濾器濾芯，針對液壓油和潤滑油，燃料，水性介質和合成介質進行了創新設計
設計用于過濾組過濾器殼體
根據DIN 24550的完整產品范圍
符合ISO 16889多通測試的Beta額定元素
具有高壓差穩定性和容塵量的元件
Filtration Group Filter Elements for hydraulic and lubricating oil filtration feature a PulseShield multilayer, pleated star construction with outer jacket provides up to 30% greater dirt-holding capacity in comparison to conventional filter elements, better cleaning performance with a lower differential pressure. The multilayered design of these filter elements allows for a broad range of applications and high dirt-holding capacity. The filtration performance of the elements remains constant, even with increasing differential pressures, and provides maximum protection even under pulsating loads. Long filter service life with low flow resistance guarantees optimal, economical application.These filter elements can be used in Filtration Group filter housings as well as customized to meet the specifications of other manufacturers housings.
Premium Select (Multilayer microglass fiber) high performance disposable filter elements with innovative design for hydraulic oils and lubricants, fuels, aqueous media and synthetic media
Designed for Filtration Group filter housings
Complete product range according DIN 24550
Beta rated elements according to ISO 16889 multipass test
Elements with high differential pressure stability and dirt holding capacity
MAHLE 濾芯PI23006RNPS10其他常見型號：
MAHLE PI23006RNPS10
MAHLE PI25016DNPS25
MAHLE PI25016RNPS25
MAHLE PI25025DNPS25
MAHLE PI25025RNPS25
MAHLE PI25040DNPS25
MAHLE PI25040RNPS25
MAHLE PI25063DNPS25
MAHLE PI25063RNPS25
MAHLE PI25100DNPS25
MAHLE PI25100RNPS25
MAHLE PI2720-057VERP
MAHLE PI2720-058VERP
