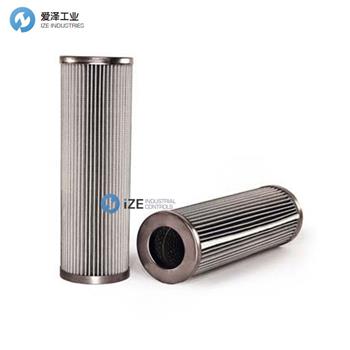

MAHLE 濾芯PI8308DRG40產品參數
Dimensions | |
Outer Diameter (in) | 1.85 in. |
Height (in) | 6.73 in. |
Flow Rate (gallons/minute) | 21.14 gal/min |
Outer Diameter (mm) | 47 mm |
Height (mm) | 171 mm |
Flow Rate (liters/minute) | 80 l/min |
Performance Specifications | |
Micron Rating | 40μ |
Temperature Rating | -10°C to +120°C |
Differential Pressure (PSI) | 290.08 PSI |
Differential Pressure (bar) | 20 bar |
Additional Specifications | |
Media Material | Wire Mesh |
Endcap | Metal |
Sealing Function | Radial |
MAHLE濾芯PI8308DRG40產品介紹
用于液壓和潤滑油過濾的濾清組濾芯具有PulseShield多層褶皺星形結構和外護套，與傳統濾芯相比，其濾塵能力高達30％，具有更好的清潔性能和更低的壓差。這些過濾器元件的多層設計可實現廣泛的應用范圍和高容塵量。即使在增加壓差的情況下，濾芯的過濾性能也保持恒定，即使在脈動負載下也能提供最大的保護。過濾器使用壽命長，流阻低，可確保最佳，經濟的應用。這些過濾器元件可用于Filtration Group過濾器外殼，也可根據其他制造商外殼的規格定制。
多層微玻璃纖維高性能一次性過濾器濾芯，針對液壓油和潤滑油，燃料，水性介質和合成介質進行了創新設計
設計用于過濾組過濾器殼體
根據DIN 24550的完整產品范圍
符合ISO 16889多通測試的Beta額定元素
具有高壓差穩定性和容塵量的元件
Filtration Group Filter Elements for hydraulic and lubricating oil filtration feature a PulseShield multilayer, pleated star construction with outer jacket provides up to 30% greater dirt-holding capacity in comparison to conventional filter elements, better cleaning performance with a lower differential pressure. The multilayered design of these filter elements allows for a broad range of applications and high dirt-holding capacity. The filtration performance of the elements remains constant, even with increasing differential pressures, and provides maximum protection even under pulsating loads. Long filter service life with low flow resistance guarantees optimal, economical application.These filter elements can be used in Filtration Group filter housings as well as customized to meet the specifications of other manufacturers housings.
Premium Select (Multilayer microglass fiber) high performance disposable filter elements with innovative design for hydraulic oils and lubricants, fuels, aqueous media and synthetic media
Designed for Filtration Group filter housings
Complete product range according DIN 24550
Beta rated elements according to ISO 16889 multipass test
Elements with high differential pressure stability and dirt holding capacity
MAHLE 濾芯PI8308DRG40其他常見型號：
MAHLE PI8308DRG40
MAHLE Pi83040DNDrgvst10
MAHLE Pi85040DNDrgvst25
MAHLE Pi86040DNDrgvst40
MAHLE Pi87040DNDrgvst60
MAHLE Pi88040DNDrgvst100
MAHLE Pi13063DNMic10
MAHLE Pi15063DNMic25
MAHLE Pi21063DNSm-x3
MAHLE Pi22063DNSm-x6
MAHLE Pi23063DNSm-x10
MAHLE Pi24063DNSm-x16
MAHLE Pi25063DNSm-x25
MAHLE Filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAHLE濾芯PI8308DRG40的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAHLE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
MAHLE濾芯PI8308DRG40產品參數
