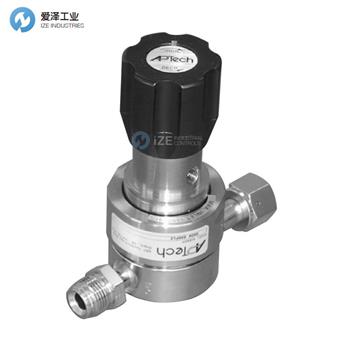

APTECH調壓閥AP1200系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌：
型號：AP1210S-2PW-MV8-MV8-HF-EOT
APTECH調壓閥AP1210S-2PW-MV8-MV8-HF-EOT
預估貨期：
提交詢價
關  鍵  詞：APTECH調壓閥AP1200系列AP1210S-2PW-MV8-MV8-HF-EOT
相似產品：
是否有問題？聯系我們工作人員
  郵件聯系

APTECH調壓閥AP1200系列描述

Operating Parameters

Source pressure                  AP 1200



vacuum to 1,700 psig (117 bar)

AP 1200 HF

vacuum to 1,700 psig (117 bar)

AP 1200 FC

 vacuum to 300 psig (21 bar)

AP 1200 HR

vacuum to 3,000 psig (207 bar)

Delivery pressure                 AP 1202



1 to 30 psig (0.07 to 2 bar) (not available for FC or HR)

AP 1206

1 to 60 psig (0.07 to 4 bar) (not available for FC or HR)

AP 1210

2 to 100 psig (0.14 to 7 bar)

AP 1215?

5 to 150 psig (.34 to 10 bar)

AP 1225

Preset to 250 psig (17 bar) at 800 psig inlet
Custom inlet/outlet pressure settings available. Contact factory. (not available for FC)

Proof pressure

150% of operating pressures

Burst pressure

300% of operating pressures

Other Parameters


Inlet/outlet connectors

1/4, 3/8, 1/2, 3/4 inch face seal or tube weld

Bonnet port

1/8 inch NPT

Flow coefficient (Cv)

0.9 (HF = 1.1 and FC = 0.65)

Internal volume

1.07 in3 (17.6 cm3)

Operating temperature

-40° to +160°F (-40° to +71°C)*

Surface finish

15 μin Ra max / 10 μin. Ra avg.
(0.4/0.25 μm) standard; 10 μin (0.25 μm);
7 μin (0.18 μm); and 5 μin (0.13 μm) Ra max optional

Inboard leakage

2 x 10-10 sccs

Outboard leakage

2 x 10-9 sccs He

Leakage across seat

4 x 10-8 sccs He

Installation

surface or panel (optional)

Supply pressure effect HF & FC

3.5 psig per 100 psig source pressure change
4.2 psig per 100 psig source pressure change


愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

APTECH調壓閥AP1200系列產品介紹

單級調壓閥，適用于圓柱形的使用點應用。入口壓力范圍從真空到4,500 psig（310bar），而出口壓力范圍從絕對到500 psig（34 bar）。流量額定值從幾sccm到5,000 slpm的N2，線徑從?英寸到1英寸。

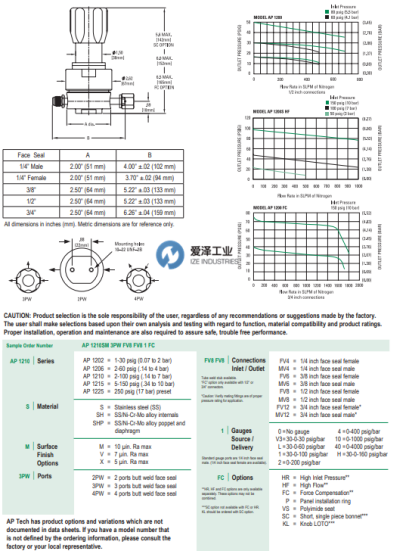

APTECH調壓閥AP1200系列選型




APTECH調壓閥AP1210S-2PW-MV8-MV8-HF-EOT

愛澤工業(IZE INDUSTRIES)特價經銷、常用APTECH調壓閥型號：

APTECH AP1210S 3PW MV8 MV8 IV4

APTECH AP1210S 3PW FV8 FV8 FV4

APTECH AP1210S 3PW MV8 MV8 H-HF

APTECH AP1210M-3PW-MV8-MV8-FV4-HF

APTECH AP1210S-3PW-MV8-MV8-FV4-HR

APTECH AP1215S 3PW MV8 MV8 IV4 HF

APTECH AP1215S 3PW MV8 IV4 HF

APTECH AP1215SM3PWFV8FV80HF

APTECH AP1215SM3PWMV8MV80

APTECH AP1215S 3PWFV8FV8IV4

APTECH AP1210S 2PWFV4FV4

APTECH AP1210S 2PW MV4 MV4 3.70HF

APTECH AP1215S 3PW MV8 MV8 IV4 HF

APTECH AP1210S 2PW FV8 MV8 HF

APTECH AP1215S-2pw-Mv8-HF

APTECH AP1210S 2PW FV8 MV8

APTECH AP1210S 2PW FV8 MV8 HR

APTECH AP1210S 2PW FV8FV8

APTECH AP1210S-2PWFV8-MV8-VS

APTECH AP1210S 2PW FV8MV8HF

APTECH AP1215S 2PW FV8 FV8 VS

APTECH AP1225S 2PW MV8 MV8 PS25 VS

APTECH AP1215 2PW FV8 FV8

APTECH AP1215S 2PW FV8 MV8

APTECH AP1210S 3PW MV8MV8IV4 HF

APTECH AP1225S 2PW MV8 MV8 PS

APTECH AP1210 2PW FV4 MV4

APTECH AP1225S 2PW FV8 MV8 PS25  VS

APTECH AP1210SM2PW FV8 FV8 FV

APTECH AP1210SML 3PW MV12 0 HF

APTECH AP1210S 3PW MV4 MV4 0 HR

APTECH AP12108 3PW MV8FV8 687

APTECH AP1210S 2PW MV8

APTECH AP1210S 2PW MV8 HF

APTECH AP1210S 3PW MV8 MV8 HVS

APTECH AP121OS 4PW FV8 FV8 IV4IV4 0 1

APTECH AP1210S 3PW MV8 MV8 IV4 HF

APTECH AP1210S 3PW MV8 MV8 HHF

APTECH AP1210S 4PW FV8 FV8 IV4

APTECH AP1225S 2PW FV8 MV8 HR VS PS25

APTECH AP1210S 2PW MV8 MV8

APTECH AP1215S2PWMV8MV8

APTECH AP1215S 2PW MV8 MV8 HF

APTECH AP1210S 2PW FV4 FV4 HF

APTECH AP125S 2PW MV8 MV8 HR

APTECH AP1210SH 2PW FV8 MV8

APTECH AP1210SM2PW-MV8-MV8-FC-TYK/12

APTECH AP1210S 3PW MV8 FV4 HF

APTECH AP1210S 3PW MV 8FV4 HF

APTECH AP1215S FV8 MV8 HF

APTECH AP1206SM 2PW MV8 MV8

APTECH AP1206SHM 2PW MV8 MV8

APTECH AP1215S 2PW FV8 FV8 HR VS PS25

APTECH AP1215S 2PW FV8 FV8 HF

APTECH AP1215S 3PW FV8 FV8 IV4 HR

APTECH AP1225S 2PW FV8 FV8 PS25

APTECH AP1210S 2PW FV8 FV8 HF

APTECH AP1225S 2PW FV8 FV8 HR PS25

APTECH AP1210S 2PW FV8 FV8 HF VS

APTECH AP1210S 2PW FV8 FV8 HF HR

APTECH AP1210SM 2PW MV8 MV8 VS FC

APTECH AP1225SM 2PW MV8 MV8 VSHR PS25-SIH4 BSGS

APTECH AP1225SM 2PW MV8 MV8 HRTPS25

APTECH AP1225S 2PW FV8 FV8

APTECH AP1225SM 2PW MV8 MV8 HRTPS25

APTECH AP1210S 2PW FV6 FV6

APTECH AP1225S 2PW MV8 MV8

APTECH AP1225S 2PW MV8MV8 PS25

APTECH AP12255 2PW MV8 MV8 VS PS25

APTECH AP1225S 2PW FV8 FV8 122 V8P

APTECH AP1225S 2PW FV8 FV8 VS

APTECH AP1225S 2PW MV8 MV8 VS

APTECH AP1225S 2PW MV8 MV8 PS25 VS

APTECH AP1225SH-2PW-MV8-MV8 0-1700psi

APTECH AP1210SH-2PW-MV8-MV8-HF 0-800psi

APTECH AP1210S 2PWFV8FV8

APTECH AP1210S-2PW-MV8-MV8-HF-EOT



APTECH Pressure regulating valve NEW + ORIGINAL+ ONE YEAR WARRANTY
