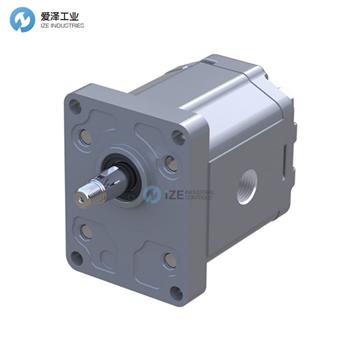

DANFOSS泵SNP2NN/014RN06SAP1B7B5YYNN/NNNNN 111.20.150.00技術參數
Product specifications | ||
Characteristic | Value | Description |
Displacement | 014 | Displacement 14 cc |
Drive gear | SA | Splined SAE J498-9T-16/32-Dp Class 1FIT -SC06 |
Inlet size | B7 | 20x40xM6 |
Mark position | N | Position Marking standard (on the top in relation to drive gear) |
Mark type | N | Standard Marking |
Mounting flange | 6 | Flange SAE A, pilot ?82,55 mm and 2 holes for bolts |
O-Ring, Inside Diameter | / | Slash |
Outlet size | B5 | 15x35xM6 |
Ports position | YY | Port type Bx-Bx for flange SAE-A as per catalogue (inverted std. position from flange to cover) LCX |
Project version | N | Standard Version of Project |
Rear cover | P1 | Standard cover for pump |
ROTATION | R | Product with clockwise rotation |
Screws | N | Screws standard |
Seals | N | Standard seal |
Single Stage Family | SNP2NN | Gr2 Pump |
Slash separator | / | Slash |
Valve setting | NNN | without setting |
DANFOSS泵其他常用型號：
DANFOSS SNP2NN/014RN06SAP1B7B5YYNN/NNNNN 111.20.150.00
DANFOSS SNP2EN-/-022-R-N-06-SA-E6-E6-E5-NN-N-N-/-VLP-N-N
DANFOSS SNP2NN-/-011-R-N-06-GA-P1-C3-C3-NN-N-N-/-NNN-N-N
DANFOSS SKP2NN-/-014-R-N-01-BA-P1-F5-F4-NN-N-N-/-NNN-N-N
DANFOSS SNP2NN-/-014-R-N-02-AA-P1-F5-F4-NN-N-N-/-NNN-N-N
DANFOSS SKP2NN-/-8,0-L-N-A6-SA-P1-E6-E5-NN-N-N-/-NNN-N-N
DANFOSS SKC2NN-/-017-R-N-04-AA-C1-NN-NN-NN-N-N-/-NNN-N-N
DANFOSS SKC2NN-/-6,0-R-N-01-BA-C1-NN-NN-NN-N-N-/-NNN-N-N
DANFOSS PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS泵SNP2NN/014RN06SAP1B7B5YYNN/NNNNN 111.20.150.00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
