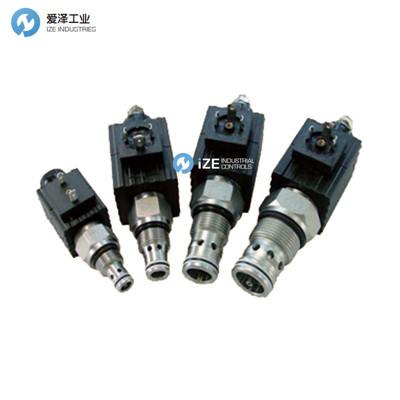

CCC閥EMDV-08系列產品描述
工作壓力：5,000 PSI [350 Bar]
耐壓：10,000 PSI [700 Bar]
流程：10.0 GPM [38 l / m]
內部泄漏：5滴/分鐘[0.25 cc / m] @ 5,000 PSI（350巴）
閥門外殼：2500 PSI [175 Bar] =鋁 - 陽極氧
5000 PSI [350 Bar] =鋼 - 未鍍
油溫：-40°至+ 175°F [-40°至+ 80°C]
環境溫度：-40°至+ 122°F [-40°至+ 50°C]
高環境溫度應用（> 122°F [50°C]）
操作介質：所有通用液壓油，如MIL-H-5606，SAE-＃10，SAE-＃20等
響應時間：首次顯示壓力變化100％
電壓提供@額定流量的80％。
拉入：50毫秒
掉線：50毫秒
密封套件：SKN-0821 Buna“N”
SKV-0821 Viton
安裝：沒有限制。
重量：.80磅[0.36千克]墨盒僅帶線圈
閥門：＃C0820
OPERATING PRESSURE: 5,000 PSI [350 Bar]
PROOF PRESSURE: 10,000 PSI [700 Bar]
FLOW: 10.0 GPM [38 l/m] See performance chart.
INTERNAL LEAKAGE: 5 drops/min [0.25 cc/m] @ 5,000 PSI (350 Bar)
VALVE HOUSINGS: 2500 PSI [175 Bar] = Aluminum - Anodized.
5000 PSI [350 Bar] = Steel - Unplated.
OIL TEMPERATURE: -40° to +175° F. [-40° to +80° C.]
AMBIENT TEMPERATURE: -40° to +122° F. [-40° to +50° C.]
high ambient temperature application (>122° F [50°C])
OPERATING MEDIA: All general purpose hydraulic fluids such as MIL-H-5606, SAE-#10, SAE-#20, etc.
RESPONSE TIME: First indication of change in pressure with 100%
voltage supplied @ 80% of nominal flow rating.
Pull-in: 50 ms
Drop-Out: 50 ms
SEAL KIT: SKN-0821 Buna "N"
SKV-0821 Viton
INSTALLATION: No restrictions.
WEIGHT: .80 lb [0,36 kg] cartridge with coil only.
VALVE CAVITY: #C0820

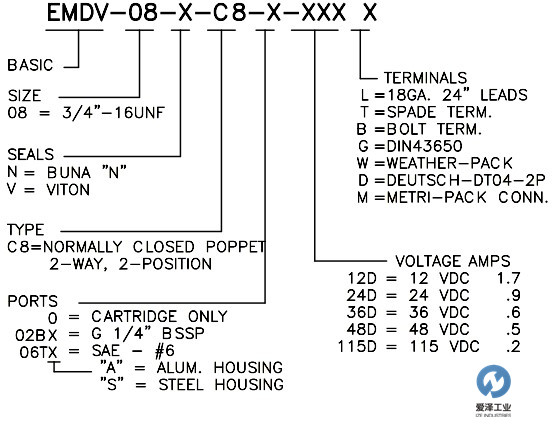

CCC閥EMDV系列 示例EMDV-08-N-C8-0-24DG
愛澤工業(IZE INDUSTRIES)特價經銷、常用CCC閥型號：
CCC閥EMDV-08-N-C6-0-24DC
CCC閥EMDV-10-N-C1-0-24DL
CCC閥EMDV-12-N-C1-0-24DG
CCC閥EMDV-08-N-C7-0-XXXX
CCC閥EMDV-10-N-C2-0-XXXX
CCC閥EMDV-12-N-C2-0-XXXX
CCC閥EMDV-16-N-C2-0-XXXX
CCC閥EMDV-08-N-C8-0-XXXX
CCC閥EMDV-12-N-C4-0-XXXX
CCC閥EMDV-16-N-C4-0-XXXX
CCC閥EMDV-10-N-C3-0-XXXX
CCC閥EMDV-08-N-06-0-XXXX
CCC閥EMDV-10-N-O1-0-XXXX
CCC閥EMDV-12-N-O1-0-XXXX
CCC閥EMDV-10-N-O2-0-XXXX
CCC閥EMDV-12-N-O2-0-XXXX
CCC閥EMDV-16-N-O2-0-XXXX
CCC閥EMDV-12-N-O4-0-XXXX
CCC閥EMDV-16-N-O4-0-XXXX
CCC閥EMDV-08-N-O7-0-XXXX
CCC閥EMDV-08-N-08-0-24DC
CCC閥EMDV-10-N-3A-0-XXXX
CCC閥EMDV-10-N-3C-0-XXXX
CCC閥EMDV-12-N-3A-0-XXXX
CCC閥EMDV-12-N-3C-0-XXXX
CCC閥EMDV-08-N-3J-0-XXXX
CCC閥EMDV-08-N-3K-0-XXXX
CCC閥EMDV-10-N-3B-0-XXXX
CCC閥EMDV-10-N-3D-0-XXXX
CCC閥EMDV-12-N-3B-0-XXXX
CCC閥EMDV-12-N-3D-0-XXXX
CCC閥EMDV-08-N-3L-0-XXXX
CCC閥EMDV-08-N-3M-0-XXXX
CCC閥EMDV-10-N-3E-0-XXXX
CCC閥EMDV-10-N-4A-0-XXXX
CCC閥EMDV-12-N-4A-0-XXXX
CCC閥EMDV-08-N-4J-0-XXXX
CCC閥EMDV-08-N-4K-0-XXXX
CCC閥EMDV-10-N-4B-0-XXXX
CCC閥EMDV-12-N-4B-0-XXXX
CCC閥EMDV-08-N-4L-0-XXXX
CCC閥EMDV-10-N-4C-0-XXXX
CCC閥EMDV-12-N-4C-0-XXXX
CCC閥EMDV-10-N-4D-0-XXXX
CCC閥EMDV-12-N-4D-0-XXXX
CCC閥EMDV-08-N-4M-0-XXXX
CCC閥EMDV-08-N-4P-0-XXXX
CCC閥EMDV-08-N-4N-0-XXXX
CCC閥EMDV-08-N-4B-0-24DL
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關CCC閥EMDV系列 示例EMDV-08-N-C8-0-24DG的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關CCC閥EMDV系列 示例EMDV-08-N-C8-0-24DG更詳細的信息或者購買CCC閥EMDV系列 示例EMDV-08-N-C8-0-24DG相關產品，請聯系愛澤工業。
