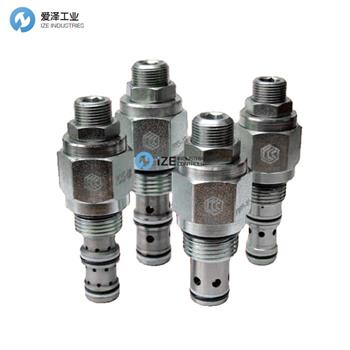

CCC閥FCVL-08-V-C-0-N選型描述
FCVL |
08 = 3/4"-16 UNF |
V = VITON |
C=CAPPED |
0= CARTRIDGE ONLY |
N=NEEDLE VALVE |
CCC閥FCVL-08系列產品描述
工作壓力:5,000 PSI [350 Bar]
耐壓:10,000 PSI [700 Bar]
流量:10.0 GPM [38,0 l / m]標稱值 見性能圖表
內部泄漏:每分鐘最多5滴@ 5,000 PSI(350巴)
閥門外殼:2500 PSI [175 Bar] =鋁 - 陽極氧化
5000 PSI [350 Bar] =鋼 - 未鍍
工作溫度:-40°至+ 250°F [-40°至+ 120°C]
操作介質:所有通用液壓油,如MIL-H-5606,SAE-#10,SAE-#20等
安裝:沒有限制
SEAL KIT:SKN-0822 Buna“N”
SKV-0822 Viton
重量:僅.30磅[.14千克]墨盒
閥門:#C0820
OPERATING PRESSURE: 5,000 PSI [350 Bar]
PROOF PRESSURE: 10,000 PSI [700 Bar]
FLOW:10.0 GPM [38,0 l/m] nominal. See performance chart.
INTERNAL LEAKAGE: 5 drops per minute maximum @ 5,000 PSI (350 Bar)
VALVE HOUSINGS: 2500 PSI [175 Bar] = Aluminum - Anodized.
5000 PSI [350 Bar] = Steel - Unplated.
OPERATING TEMPERATURE: -40° to +250° F. [-40° to +120° C.]
OPERATING MEDIA: All general purpose hydraulic fluids such as
MIL-H-5606, SAE-#10, SAE-#20, etc.
INSTALLATION: No restrictions.
SEAL KIT: SKN-0822 Buna "N".
SKV-0822 Viton.
WEIGHT: .30 lb [.14 kg] cartridge only.
VALVE CAVITY: #C0820
CCC閥FCVL系列常用閥型號:
CCC FCVL-08-N-S-0-NV
CCC FCVL-10-N-S-0-NV
CCC FCVL-12-N-S-0-NV
CCC FCVL-08-N-S-0-FF
CCC FCVL-10-N-S-0-FF
CCC FCVL-12-N-S-0-FF
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關CCC閥FCVL-08-V-C-0-N的疑問,請隨時與我們聯系,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.
