CCC閥EMDV-08-N-C7-0-24DG選型介紹
EMDV |
08 = 3/4"-16UNF |
N = BUNA "N" |
C7=NORMALLY CLOSED POPPET 2-WAY, 2-POSITION |
0 = CARTRIDGE ONLY |
24D = 24 VDC .9 |
G =DIN43650 |
CCC閥EMDV-08-N-C7-0-24DG產品介紹
DESC RIPTION

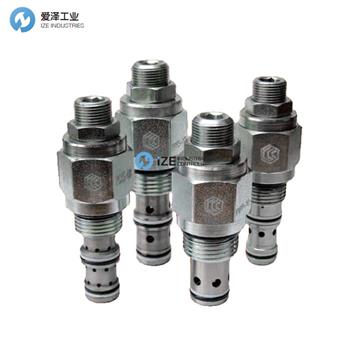

This unit is a NORMALLY CLOSED, TWO POSITION, cartridge type, poppet type，pilot operated, screw in type, solenoid operated, directional control valve.
OPERATIONS
When solenoid coil is de - energized，this valve allows no flow from ports 2 to 1 and free flow from ports 1 to 2. When solenoid coil is energized， the poppet in this valve is shifted and allows flow from ports 2 to 1 and restricted flow from ports 1 to 2.
FEATURES AND B ENEFITS
C ontinuous-duty, very low heat rise & waterproof solenoid coil.
Interchangeable solenoid coils & terminations options available.
Hardened precision fitted poppet &c sleeve provides reliable，long life.
Very efficient， wet-armature solenoid core tube construction.
All external carbon steel parts are plated for longer life against the elements.
All cartridge valves are 1 00% functionally tested.
SPEC IFIC ATIONS
OPERATING PRESSURE: 5,000 PSI [350 Bar]
PROOF PRESSURE: 10,000 PSI[ 700 Bar]
FLOW: 10.0 GPM [38 I/m] See performance chart.
INTERNAL LEAKAGE: 5 drops/min [0.25 cc/m] @ 5,000 PSI (350 Bar)
VALVE HOUSINGS: 2500 PSI [ 1 75 Bar]= Aluminum - Anodized.
5000 PSI [350 Bar] = Steel - Unplated.
OIL TEMPERATURE: -40* to +175' F. [-40* to +80* C.]
AMBIENT TEMPERATURE: -40* to +122* F. [-40' to +50* C.]
Please consult factory for continuously energized or
high ambient temperature application (> 122" F [50*C])
OPERATING MEDIA: All general purpose. hydraulic fluids such as
MIL-H-5606，SAE-#10， SAE- #20，etc.
RESPONSE TIME: First indication of change in pressure with 1 00% voltage supplied @ 80% of nominal flow rating.
* Puli-in:50 ms
* Drop-Out: 50 ms
SEAL KIT:SKN-0821 Buna "N"
SKV-0821 Viton
INSTALL ATION: No restrictions.
WEIGHT: .80 Ib [0,36 kg] cartridge with coil only.
VALVE CAVITY: #C0820， See Page 0-011.0.
描述
本裝置為常閉、兩位、插裝式、提升式、先導式、螺紋式、電磁式、方向控制閥。
運營
當電磁線圈斷電時，該閥不允許從端口 2 到 1 的流量和從端口 1 到 2 的自由流動。當電磁線圈通電時，該閥中的提升閥移動并允許從端口 2 到 1 的流量并受到限制從端口 1 流向 2。
特點和優勢
連續工作、溫升極低且防水的電磁線圈。
提供可互換的電磁線圈和端接選項。
硬化精密配合提升閥和 c 套筒提供可靠、長壽命。
非常高效的濕式電樞電磁芯管結構。
所有外部碳鋼部件都經過電鍍處理，以延長元件的使用壽命。
所有插裝閥都經過100%的功能測試。
規格
工作壓力：5,000 PSI [350 Bar]
耐壓：10,000 PSI [ 700 Bar]
流量：10.0 GPM [38 I/m] 見性能圖表。
內部泄漏：5 滴/分鐘 [0.25 cc/m] @ 5,000 PSI (350 Bar)
閥殼：2500 PSI [1 75 Bar]= 鋁 - 陽極氧化。
5000 PSI [350 Bar] = 鋼 - 未電鍍。
油溫：-40* 至 +175' F. [-40* 至 +80* C.]
環境溫度：-40* 至 +122* F. [-40' 至 +50* C.]
請向工廠咨詢持續通電或
高環境溫度應用 (> 122" F [50*C])
操作介質：所有通用。液壓油，例如
MIL-H-5606，SAE-#10，SAE-#20等
響應時間：在額定流量的 80% 時提供100%電壓時壓力變化的第一個指示。
* 輸入：50 毫秒
* 輟學：50毫秒
密封套件：SKN-0821 Buna "N"
SKV-0821氟橡膠
安裝：沒有限制。
重量：0.80 Ib [0,36 kg]墨盒，僅帶線圈。
CCC閥EMDVS系列型號
CCC EMDV-08-N-C7-0-24DG
CCC EMDV-10-N-3B-0-24DG
CCC EMDV-08-N-4C3-0-24DG
CCC EMDV-08-N-C7-0-12DG
CCC EMDV-08-N-C6-0-24DC
CCC EMDV-08-N-3K-0-12DL
CCC valve NEW + ORIGINAL+ ONE YEAR WARRANTY
