FREUDENBERG蓄能器140-1315-112-611 1401315112611介紹
Specification | |

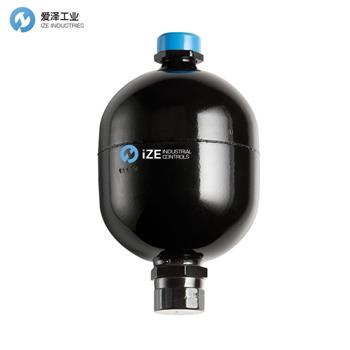

Product | Diaphragm accumulator |
Brand | FREUDENBERG Integral Accumulator |
Article number | 1401315112611 |
Code on product | 140-1315-112-611 |
Old article number | 140-1315-112-611 |
Type | D1,4-250 |
Volume | 1,4 L |
Pmax | 250 bar |
Fluid thread | Int.G1/2 |
Gas port | M28x1,5 |
Diaphragm | NBR -10° +80°C |
Housing material | Steel |
Max P0/P2 * | 1:8 |
* Max. permissible pressure ratio = P0 (gas filling pressure) / P2 (max. system pressure) | |
Certificate | CE / PED 2014/68/EU |
Height [mm] | 202 |
Diameter [mm] | 152 |
Weight [kg] | 5.50 |
Remarks | Equivalent to HYDAC SBO250-1.4E1/112U-250AK, SBO210-1.4E1/112U-210AK |
FREUDENBERG蓄能器140-1315-112-611 1401315112611產品介紹
隔膜式蓄能器FREUDENBERG整體式蓄能器1401315112611, 1,4 L , 250 bar , NBR -10° +80°C
Diaphragm accumulator FREUDENBERG Integral Accumulator 1401315112611, 1,4 L , 250 bar , NBR -10° +80°C
FREUDENBERG蓄能器140-1315-112-611 1401315112611其他常用型號：
FREUDENBERG 2001315142641
FREUDENBERG 2001315023411
FREUDENBERG 1401315022711
FREUDENBERG 1401315122611
FREUDENBERG 1401315112611
FREUDENBERG 1401315112641
FREUDENBERG 1001315053711
FREUDENBERG 1001315113611
FREUDENBERG 1001315113641
FREUDENBERG 0751315022711
FREUDENBERG Integral Accumulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FREUDENBERG蓄能器140-1315-112-611 1401315112611的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FREUDENBERG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FREUDENBERG蓄能器140-1315-112-611 1401315112611規格描述
