FREUDENBERG蓄能器100-1315-043-741 1001315043741介紹
Specification | |
Product | Diaphragm accumulator |
Brand | FREUDENBERG Integral Accumulator |
Article number | 1001315043741 |
Code on product | 100-1315-043-741 |
Type | D1,0-350 |
Volume | 1,0 L |
Pmax | 350 bar |
Fluid thread | Int.G1/2 |
Gas port | M28x1,5 |
Diaphragm | ECO -40° +80°C |
Housing material | Steel |
Max P0/P2 * | 1:4 |
* Max. permissible pressure ratio = P0 (gas filling pressure) / P2 (max. system pressure) | |
Certificate | N/A |
Height [mm] | 205 |
Diameter [mm] | 129 |
Weight [kg] | 5.00 |
FREUDENBERG蓄能器100-1315-043-741 1001315043741產品介紹

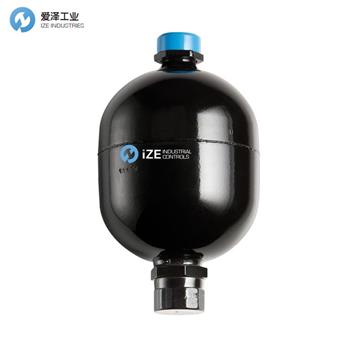

隔膜式蓄能器FREUDENBERG整體式蓄能器1001315043741, 1,0 L , 350 bar , ECO -40° +80°C
Diaphragm accumulator FREUDENBERG Integral Accumulator 1001315043741, 1,0 L , 350 bar , ECO -40° +80°C
FREUDENBERG蓄能器100-1315-043-741 1001315043741其他常用型號：
FREUDENBERG 2001315023441
FREUDENBERG 1401315012711
FREUDENBERG 1401315022741
FREUDENBERG 1401315012741
FREUDENBERG 1401315122641
FREUDENBERG 1401315153611
FREUDENBERG 1401315143611
FREUDENBERG 1401315153641
FREUDENBERG 1401315143641
FREUDENBERG 1401315043511
FREUDENBERG Integral Accumulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FREUDENBERG蓄能器100-1315-043-741 1001315043741的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FREUDENBERG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
FREUDENBERG蓄能器100-1315-043-741 1001315043741規格描述
