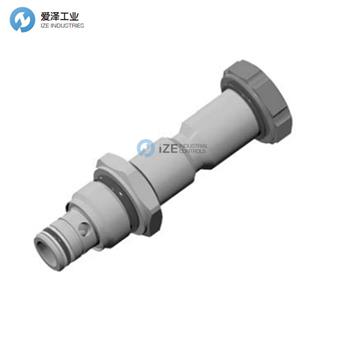

REXROTH OIL CONTROL閥VEDT-16-08A-NC系列技術參數
Technical data | |
General | |
Weight | 0.12 kg (0.26 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | up to 250 bar (3625 psi) |
Max. fl ow | up to 15 l/min. (4 gpm) |
Max. internal leakage | 5 drops/min |
Fatigue cycle life | 1 million cycles at 250 bar |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 34 - 39 Nm (25 - 29 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm |
Cavity | CA-08A-2N see 18325-70 |
Seal kit | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B,C | code RG03Z0010000100 |

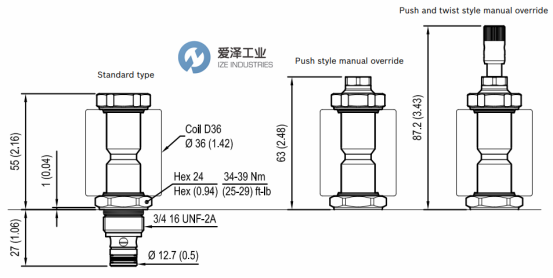

REXROTH OIL CONTROL閥VEDT-16-08A-NC系列技術尺寸

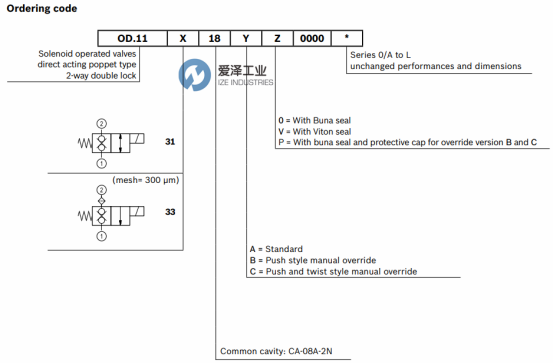

REXROTH OIL CONTROL閥VEDT-16-08A-NC系列選型
REXROTH OIL CONTROL閥VEDT-16-08A-NC系列其他常用型號：
REXROTH OIL CONTROL OD113118A000000 R930058329
REXROTH OIL CONTROL OD113118B000000 R930058330
REXROTH OIL CONTROL OD113318A000000 R930060586
REXROTH OIL CONTROL OD113318B000000 R930058328
REXROTH OIL CONTROL OD113118BP00000 R930061372
REXROTH OIL CONTROL OD113118C000000 R930065584
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
有關REXROTH OIL CONTROL閥OD113118A000000 R930058329更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD113118A000000 R930058329技術參數
