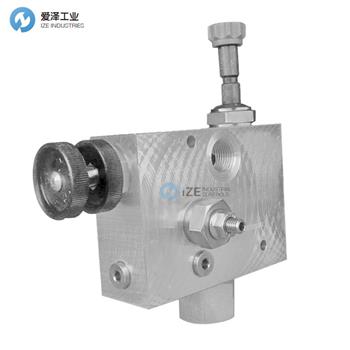

REXROTH OIL CONTROL閥VRFC3-VS-BPE系列技術參數
Technical data | |
Hydraulic | |
Operating pressure bar (psi) | up to 210 (3000) |
Adj. relief valve: range 35-210 bar (500-3000 psi) | |
QE = max inlet flow “E” port 150 l/min (40 gpm) | |
QR = max regulated flow “R” port 90 l/min (24 gpm) | |
Flow range adjustment : 0 - 3 turns | |
The coil must be ordered separately | |
General | |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Weight kg (lbs) | 2.30 (5.1) |
Viscosity | 20 to 380 mm2/s (cSt) |
Fluid temperature range °C (°F) | between -20 (-4) and +80 (176) |
Other technical data | see data sheet RE 18350-50 |
REXROTH OIL CONTROL閥VRFC3-VS-BPE系列介紹
從E到R建立了恒定的壓力補償流量，而最小壓力差約為。兩個端口之間存在5 bar（70 psi）的壓力。供應給E的輸入流量超過R處的調節輸出，將被旁路到T。調節流量可以從關閉到閥的標稱最大額定值變化，并且其壓力由溢流閥控制，該溢流閥將排放到Tank上。如果達到最大壓力，則輸出流量。斷電時，常開螺線管盒會將所有入口流量旁路到油箱。從R到E的逆流受節流閥的選定開度限制，并且沒有壓力補償。不允許從T到R的流量。
A constant pressure compensated flow rate is established from E to R, while a minimum pressure differential of appr. 5 bar (70 psi) exists between the two ports. Input flow supplied to E in excess of the regulated output at R is by-passed to T. Regulated flow can be varied from closed to the nominal maximum rating of the valve and its pressure is controlled by a relief cartridge which will dump to Tank the output flow if the maximum pressure is reached. A normally open solenoid cartridge by-passes all Inlet flow to tank when de-energized. Reverse flow from R to E is limited by the selected opening of the restrictor and is not pressure compensated. Flow from T to R is not permitted.

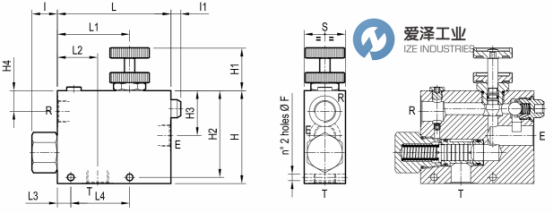

REXROTH OIL CONTROL閥VRFC3-VS-BPE系列技術尺寸

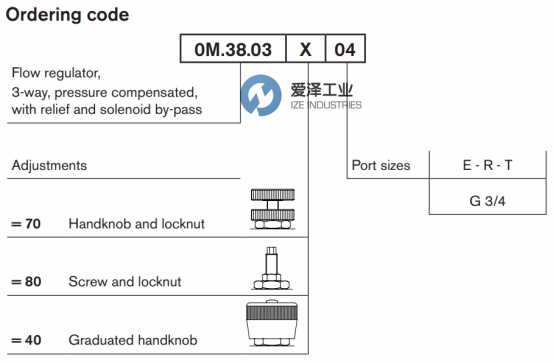

REXROTH OIL CONTROL閥VRFC3-VS-BPE系列選型介紹
REXROTH OIL CONTROL閥VRFC3-VS-BPE系列其他常用型號：
REXROTH OIL CONTROL 0M380370040000A R930004289
REXROTH OIL CONTROL 0M3803800400000 R930000469
REXROTH OIL CONTROL 0M380340040000B R930004285
