REXROTH OIL CONTROL閥VEI-16-NC系列技術參數
Technical data | |
General | |
Weight | 1.13 kg (2.5 lbs) |
Installation orientation | Optional |
Ambient temperature range | —30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Rated flow | 260 l/min (69 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | —20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 110 - 130 Nm (81 - 96 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 25 μm (NAS 8) ISO 4406 19/17/14 |
Special cavity | 004 see 18325-75 |
Lines bodies and standard assemblies | Please refer to section“Hydaulic integrated circuit” or consult factory |
Seal kit | code RG0004020520100 |
Seal kit coil | code RG01Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 see 18325-90 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |
REXROTH OIL CONTROL閥VEI-16-NC系列介紹
新的VEI-16系列采用了新的螺線管概念，可提供出色的性能，并使硒鼓可在惡劣的環境下工作。墨盒還采用了先進的液壓部件設計，可提供出色的液壓性能。

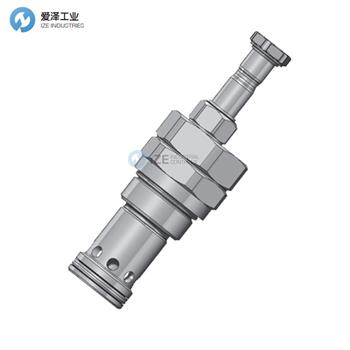

New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.

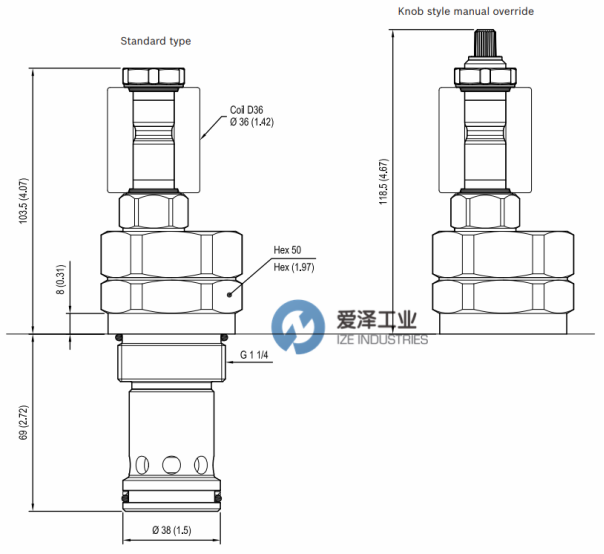

REXROTH OIL CONTROL閥VEI-16-NC系列尺寸圖

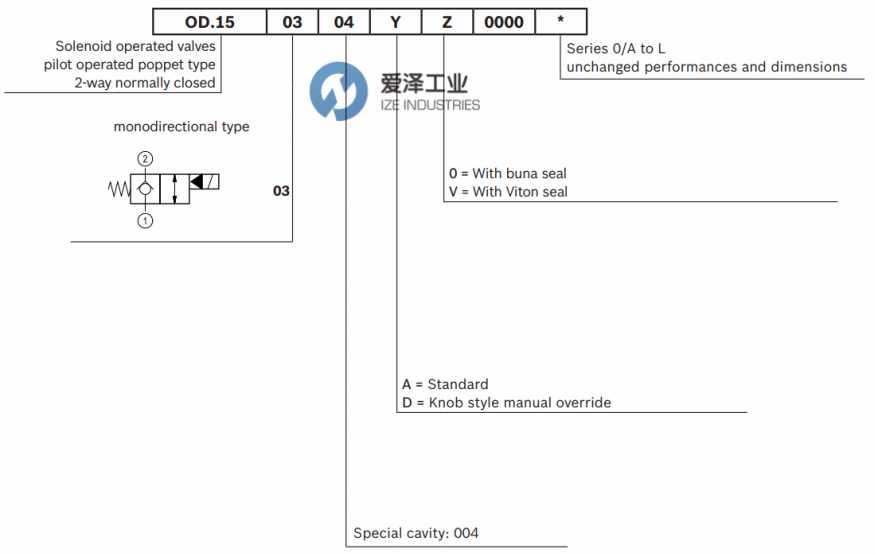

REXROTH OIL CONTROL閥VEI-16-NC系列選型
REXROTH OIL CONTROL閥VEI-16-NC系列其他常用型號：
REXROTH OIL CONTROL OD150304A000000 R930064807
REXROTH OIL CONTROL OD150304D000000 R930064862
