REXROTH OIL CONTROL閥04.01.03-X-56.00規格描述
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Max. flow | 40 l/min. (11 gpm) |
Max. internal leakage1) | 15 drops/min. closed |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 34 - 41 Nm (25 - 30 ft-lbs) |
Weight | 0.16 kg (0.35 lbs) |
Cavity | CA-08A-2N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit2) | Code: RG08A2010520100 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 5 to 800 mm2/s (cSt) |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | Other Technical Data |
REXROTH OIL CONTROL閥04.01.03-X-56.00型號解析

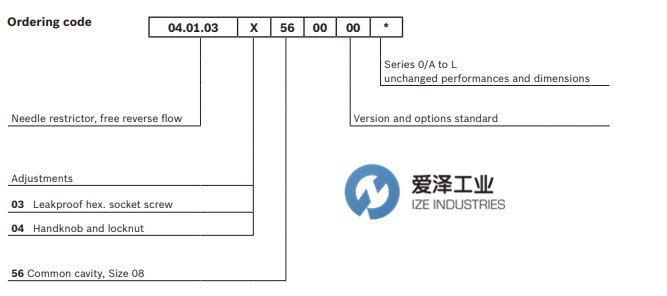

REXROTH OIL CONTROL閥04.01.03-X-56.00型號選型及介紹

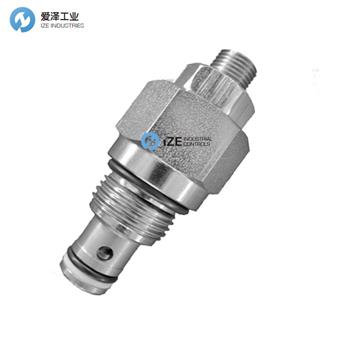

Description
With flow from 2 to 1, the valve provides a fully adjustable orifice restriction. Free flow is permitted from 1 to 2, regardless of valve adjustment, by when pressure overcomes the spring bias of the valve’s check function.
描述
流量從2到1，該閥提供了完全可調的節流孔限制。 當壓力克服閥的止回閥的彈簧偏壓時，無論閥調節如何，都可以從1到2自由流動。
REXROTH OIL CONTROL閥STVU-08A系列其他常用型號：
REXROTH OIL CONTROL 040103035600000 R930000002
REXROTH OIL CONTROL 040103045600000 R930000003
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
