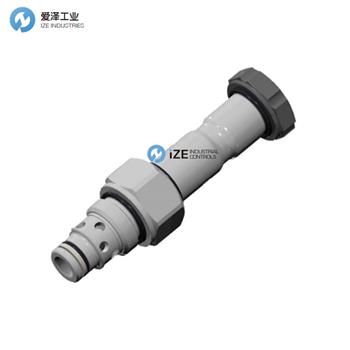

REXROTH OIL CONTROL閥OD.15-X-18-Y-Z-00規格描述
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 02,06,08 |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years see RE 18350-51 |
Common cavity | CA-08A-2N see 18325-70 |
Seal kit for X=02,06,08 | code RG08A2010520100 |
Seal kit for X=32,10,04 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=B | code RG03Z0010000100 |
Seal kit coil and protective cap only for Y=C | code RG04Z0010000100 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Supply voltage | See data sheet 18325-90 |
Voltage tolerance against ambient temperature | See characteristic curve |
Power consumption | 20 W |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

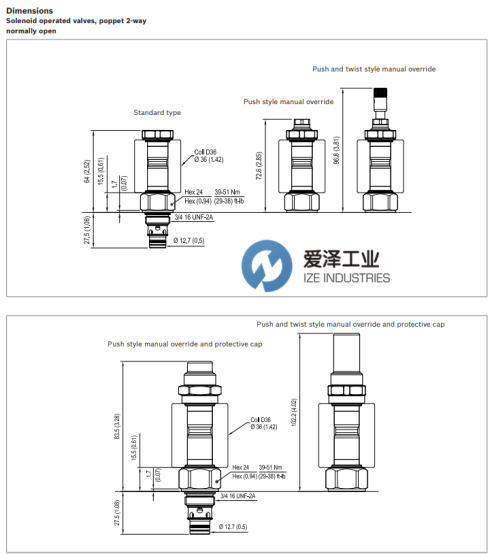

REXROTH OIL CONTROL閥OD.15-X-18-Y-Z-00外觀尺寸圖

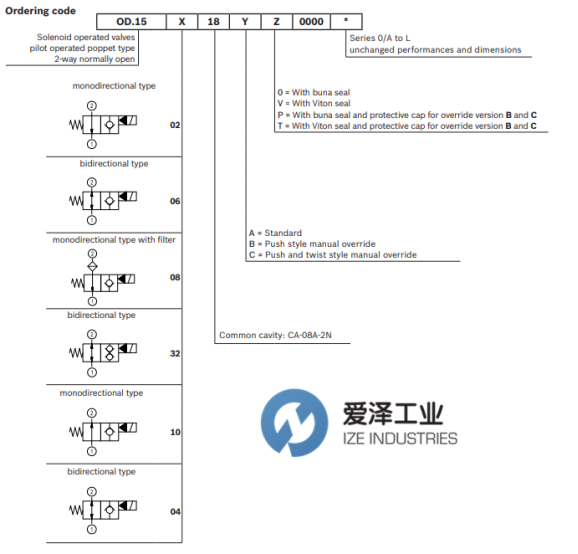

REXROTH OIL CONTROL閥OD.15-X-18-Y-Z-00選型參考
Technical data
New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.
技術數據
新的VEI-16系列采用了新的螺線管概念，可提供出色的性能，并使硒鼓可在惡劣的環境下工作。彈藥筒還采用了先進的液壓零件設計，可提供出色的液壓性能。
REXROTH OIL CONTROL閥VEI-16-08A-NA系列其他常用型號：
REXROTH OILCONTROL OD150218A000000 R930059442
REXROTH OILCONTROL OD150218B000000 R930060895
REXROTH OILCONTROL OD150218BP00000 R930060113
REXROTH OILCONTROL OD150218C000000 R930060584
REXROTH OILCONTROL OD150218CP00000 R930060090
REXROTH OILCONTROL OD150618A000000 R930058435
REXROTH OILCONTROL OD150618B000000 R930058438
REXROTH OILCONTROL OD150618C000000 R930060128
REXROTH OILCONTROL OD150818A000000 R930058337
REXROTH OILCONTROL OD150818B000000 R930058340
REXROTH OILCONTROL OD150818C000000 R930060583
REXROTH OILCONTROL OD153218A000000 R930064101
REXROTH OILCONTROL OD153218B000000 R930063422
REXROTH OILCONTROL OD153218C000000 R930065002
REXROTH OILCONTROL OD150418A000000 R930065329
REXROTH OILCONTROL OD150418B000000 R930066184
REXROTH OILCONTROL OD150418C000000 R930066185
REXROTH OILCONTROL OD150618CP00000 R930060905
REXROTH OILCONTROL OD153218CP00000 R930065328
REXROTH OILCONTROL OD151018B000000 R930066186
REXROTH OILCONTROL OD151018C000000 R930066187
REXROTH OILCONTROL OD150618AV00000 R930060900
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
