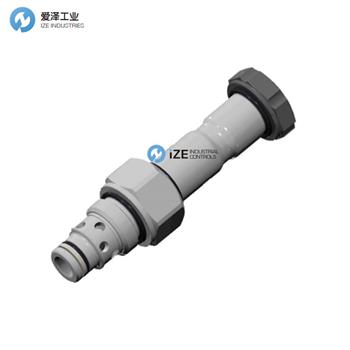

REXROTH OIL CONTROL閥OD.15-X-18-Y-S0系列規格描述
Technical data | |
General | |
Weight | 0.12 kg (0.26 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 1.5 - 40 l/min (0.4 - 11 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid | Nominal value max. 10 μm |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-2N see 18325-70 |
Lines bodies and standard assemblies | Please refer to section “Hydaulic integrated circuit” or consult factory |
Seal kit – version 1 | code RG08A2010520100 |
Seal kit – version 2-3 | code RG08A2010530100 |
Seal kit coil | code RG12A1PNBR7010 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see 18325-90 |
Supply voltage | See data sheet 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |
REXROTH OIL CONTROL閥OD1501183MS000停產，替代型號OD150118000000+D36

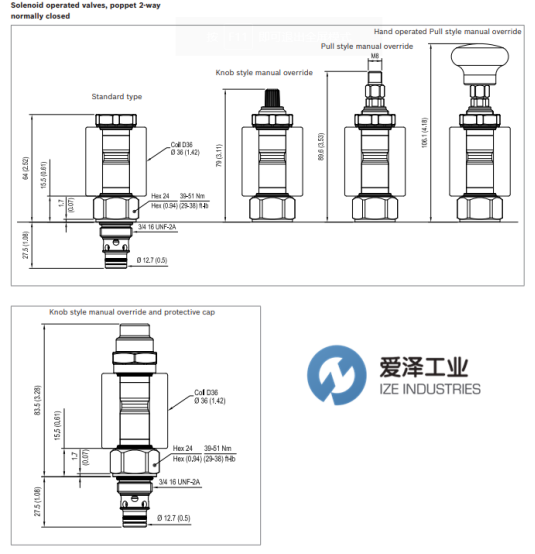

REXROTH OIL CONTROL閥OD.15-X-18-Y-S0系列尺寸
REXROTH OIL CONTROL閥OD.15-X-18-Y-S0系列選型介紹
General
Weight：0.11 kg (0.24 lbs)
Installation orientation：Optional
Ambient temperature range： -30 to 60 °C (-22 to 140 °F)
一般
重量：0.11公斤（0.24磅）
安裝方向：可選
環境溫度范圍：-30至60°C（-22至140°F）
REXROTH OIL CONTROL閥OD.15-X-18-Y-S0系列其他常用型號：
REXROTH OIL CONTROL OD1501183IS000 R901090962
REXROTH OIL CONTROL OD1501183MS000 R901090966
REXROTH OIL CONTROL OD1505183IS000 R901090953
REXROTH OIL CONTROL OD1505183MS000 R901090950
REXROTH OIL CONTROL OD1507183IS000 R901091142
REXROTH OIL CONTROL OD1507183MS000 R934003486
REXROTH OIL CONTROL OD1507183CS000 R930054706
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD1501183MS000 R901090966的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
