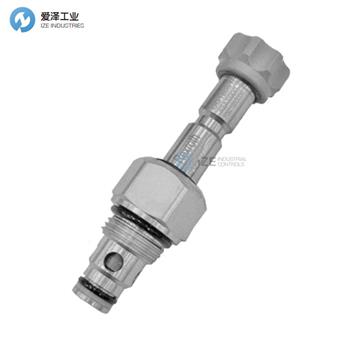

REXROTH OIL CONTROL閥OD1505183BS000已停產，替代型號為OD1505183DS000
REXROTH OIL CONTROL閥OD.15-X-Y-Z-S規格描述
Technical data | |
General | |
Weight | 0.16 kg (0.35 lbs) |
Installation orientation | Optional |
Ambient temperature range | -30 to 60 °C (-22 to 140 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Max. proof pressure | 420 bar (6000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 1 million cycles at 350 bar |
Max. internal leakage | 20 drops/min. |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm 2 /s (cSt) | |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-2N see 18325-70 |
Lines bodies and standard assemblies | Please refer to section |
Seal kit – version 1 | code RG08A2010520100 |
Seal kit – version 2-3 | code RG08A2010530100 |
Seal kit coil | code RG12A1PNBR7010 |
Other technical data | See data sheet 18350-50 |
Electrical | |
Type of voltage | DC voltage |
Coil type | S8-356 see 18325-90 |
Supply voltage | See data sheet 18325-90 |
Nominal voltage | ± 10% |
Power consumption | 20 W |
Duty cycle coil | See characteristic curves % |
Type of protection | See data sheet 18325-90 |
Note: Coils must be ordered separately | |

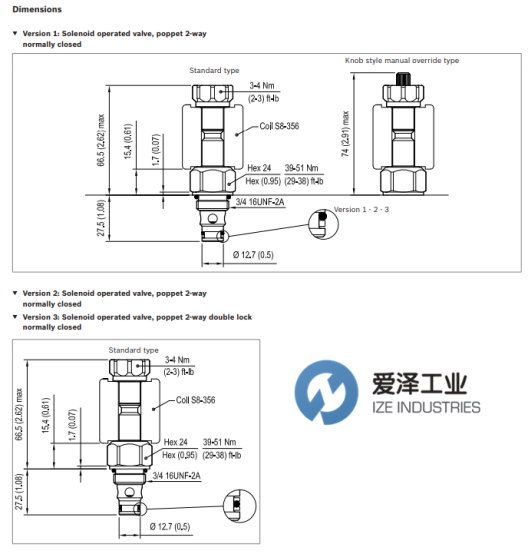

REXROTH OIL CONTROL閥OD.15-X-Y-Z-S系列尺寸圖

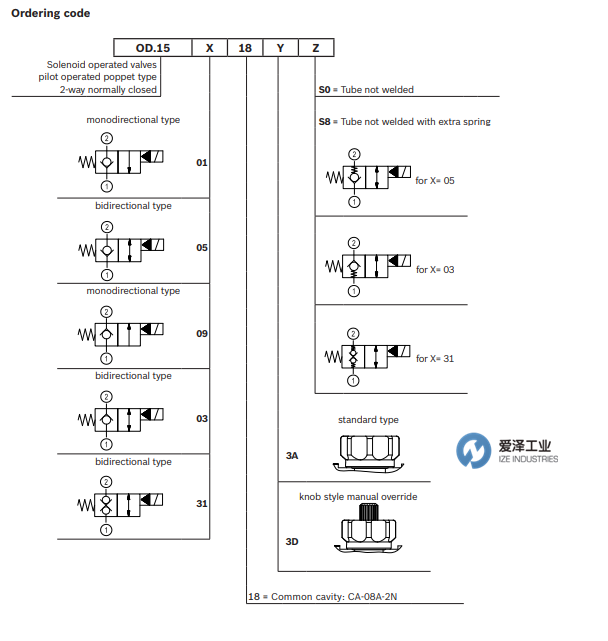

REXROTH OIL CONTROL閥OD.15-X-Y-Z-S選型及介紹
REXROTH OIL CONTROL閥VEI-8A-06-NC系列其他常用型號：
REXROTH OIL CONTROL OD1501183AS000 R901091096
REXROTH OIL CONTROL OD1501183DS000 R901091101
REXROTH OIL CONTROL OD1503183AS000 R934000779
REXROTH OIL CONTROL OD1503183AS800 R934003063
REXROTH OIL CONTROL OD1503183DS000 R901091112
REXROTH OIL CONTROL OD1503183DS800 R934003064
REXROTH OIL CONTROL OD1505183AS000 R901083058
REXROTH OIL CONTROL OD1505183AS800 R934003080
REXROTH OIL CONTROL OD1505183DS000 R901087979
REXROTH OIL CONTROL OD1509183AS000 R901091150
REXROTH OIL CONTROL OD1509183DS000 R901091151
REXROTH OIL CONTROL OD1531183AS000 R901082015
REXROTH OIL CONTROL OD1531183AS800 R934000104
REXROTH OIL CONTROL OD1531183DS000 R901091164
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥 OD1505183DS000 R901087979的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD1505183DS000 R901087979技術數據
