REXROTH OIL CONTROL閥0M.32.03-X-05規格描述
Hydraulic | |
Operating pressure bar (psi) | up to 210 (3000) |
QE = max inlet flow “E” port 280 l/min (74 gpm) | |
QR = max regulated flow “R” port 190 l/min (50 gpm) | |
Flow range adjustment : 0 - 3 turns | |
General | |
Manifold material | Aluminium |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Weight kg (lbs) | 1.95 (4.3) |
Fluid temperature range °C (°F) | between -30 (-22) and +100 (212) |
Other technical data | see data sheet RE 18350-50 |

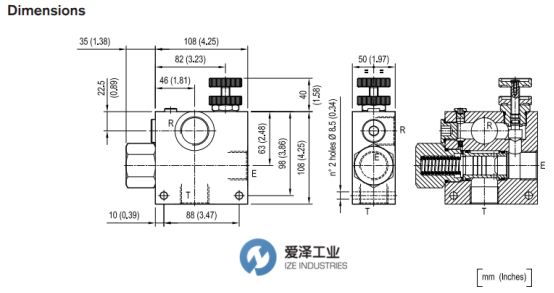

REXROTH OIL CONTROL閥0M.32.03-X-05外觀尺寸圖

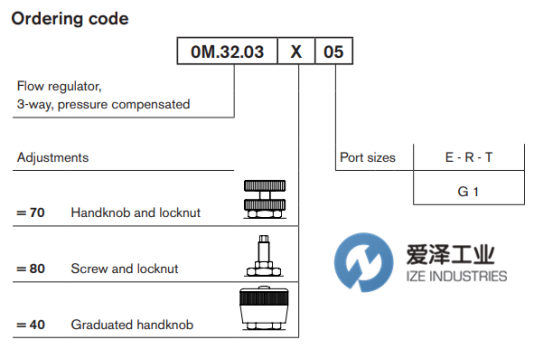

REXROTH OIL CONTROL閥0M.32.03-X-05型號解析
REXROTH OIL CONTROL閥VRFC3系列其他常用型號：
REXROTH OIL CONTROL 0M3203700500000 R930004235
REXROTH OIL CONTROL 0M3203800500000 R930004245
REXROTH OIL CONTROL 0M3203400500000 R930004225
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥0M3203700500000 R930004235的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥0M.32.03-X-05 0M3203700500000規格描述
