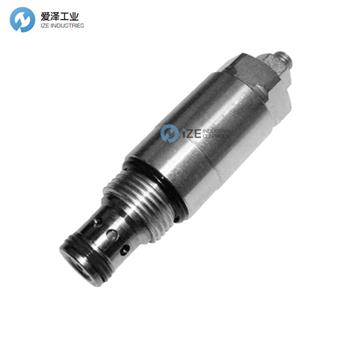

REXROTH OIL CONTROL閥04.15.23-X-85-Z規格描述
Max. operating pressure bar (psi) port 2 (P) | 350 (5000) | |
Max. operating pressure bar (psi) port 1 (T) | 140 (2000) | |
Max. flow | l/min. (gpm) | 120 (32) |
Max. internal leakage (*) | drops/min. | 15 |
Fluid temperature range °C (°F) | -30 to 100 (-22 to 212) | |
Installation torque | Nm (ft-lbs) | 41-47 (30-35) |
Weight | kg (lbs) | 0.2 (0.44) |
Common cavity | CA-10A-2N | |
see data sheet RE 18325-70 | ||
Seal kit (**) | code material no. | RG10A2010520100 R901111363 |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) | |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 | |
Installation | No restrictions | |
Other Technical Data | See data sheet RE 18350-50 | |
(*) at 80% of cracking pressure
(**) Only external seals for 10 valves

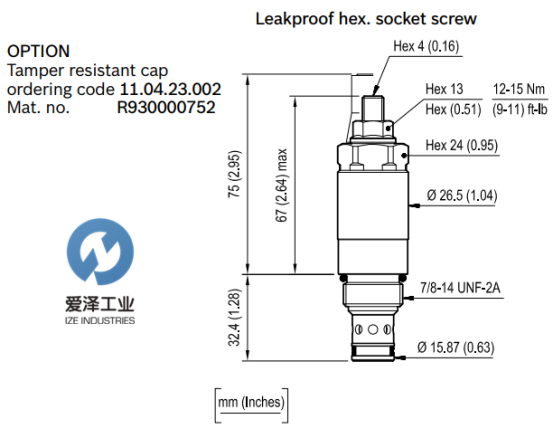

REXROTH OIL CONTROL閥04.15.23-X-85-Z外觀尺寸圖

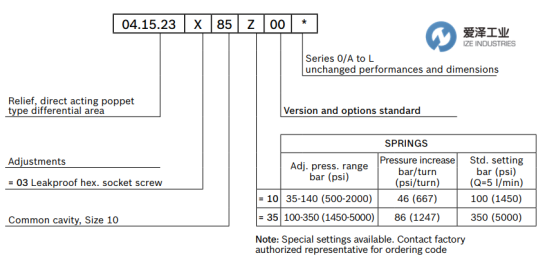

REXROTH OIL CONTROL閥04.15.23-X-85-Z型號解析
REXROTH OIL CONTROL閥VBSO-SE-NA系列其他常用型號：
REXROTH OIL CONTROL 041523038510000 R930005643
REXROTH OIL CONTROL 041523038535000 R930005644
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥041523038535000 R930005644的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥04.15.23-X-85-Z 041523038535000規格描述
