REXROTH OIL CONTROL閥OD.21.01-X-8規格描述
Max. operating pressure | bar (psi) | 350 (5000) | |
Rated flow | l/min. (gpm) | 150 (39) | |
Fluid temperature range | °C (°F) | -30 to 100 (-22 to 212) | |
Installation torque | Nm (ft-lbs) | 54-66 (40-49) | |
Weight | kg (lbs) | 0.31 (0.68) | |
Cavity | CA-12A-2N | ||
see data sheet RE 18325-70 | |||
Seal kit (*) | code material no. | RG12A2010530100 R930003374 | |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm2/s (cSt) | ||
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 | ||
Installation | No restrictions | ||
Other Technical Data | See data sheet RE 18350-50 |
(*) Only external seals for 10 valves

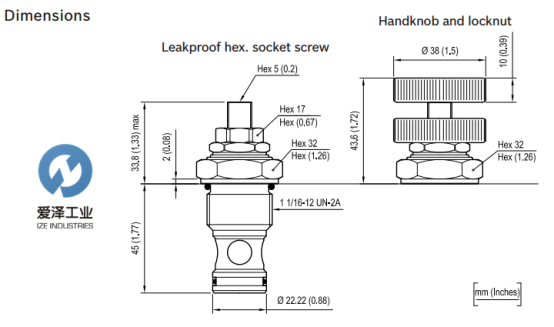

REXROTH OIL CONTROL閥OD.21.01-X-8外觀尺寸圖

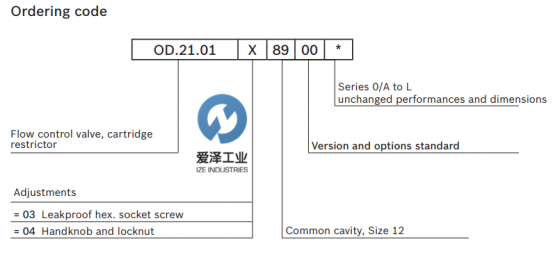

REXROTH OIL CONTROL閥OD.21.01-X-8型號解析
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號:
REXROTH OIL CONTROL OD210103890000 R901109832
REXROTH OIL CONTROL OD210104890000 R901109834
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥 OD210104890000 R901109834的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD.21.01-X-8 OD210104890000技術數據
