REXROTH OIL CONTROL閥OD.21.01-X-56規格描述
Technical data | |
Max. operating pressure | 350 bar (5000 psi) |
Rated flow | 40 l/min. (11 gpm) |
Fluid temperature range | -30 to 100 °C (-22 to 212 °F) |
Installation torque | 39 - 51 Nm (29 - 38 ft-lbs) |
Weight | 0.09 kg (0.2 lbs) |
Cavity | CA-08A-2N (see data sheet 18325-70) |
Lines bodies and standard assemblies | Please refer to section “Hydraulic integrated circuit” or consult factory |
Seal kit1) | Code: RG08A2010530100 |
material no: R901101544 | |
Fluids | Mineral-based or synthetics with lubricating properties |
at viscosities of 10 to 500 mm2/s (cSt) | |
Recommended degree of fluid contamination | Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14 |
Installation | No restrictions |
Other Technical Data | See data sheet 18350-50 |
1)Only external seals for 10 valves

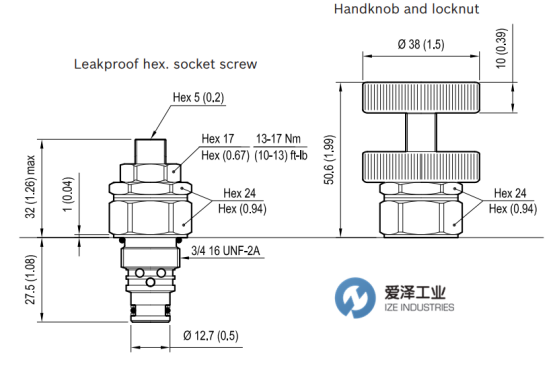

REXROTH OIL CONTROL閥OD.21.01-X-56外觀尺寸圖

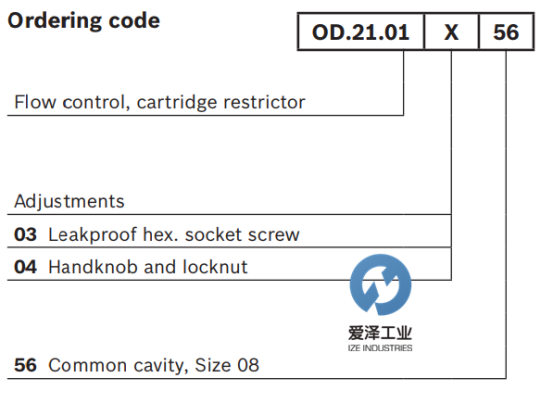

REXROTH OIL CONTROL閥OD.21.01-X-56型號解析
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL OD21010356 R901109366
REXROTH OIL CONTROL OD21010456 R901109367
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD210103360000 R901109830的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD.21.01-X-56技術數據
