REXROTH OIL CONTROL閥VBSO-DE-NN系列技術參數
Hydraulic | |
Operating pressure bar (psi) | up to 210 (3000) |
Max. flow l/min (gpm) | 40 (11) |
Relief setting: at least 1.3 times the highest expected load. | |
General | |
Manifold material Aluminium | |
Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network. | |
Weight kg (lbs) | 0.80 (1.76) |
Fluid temperature range °C (°F) | between -30 (-22) and +100 (212) |
Other technical data | see data sheet RE 18350-50 |
Note: for applications outside these parameters, please consult us. | |

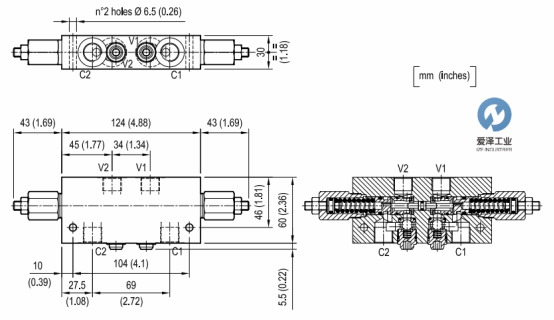

REXROTH OIL CONTROL閥VBSO-DE-NN系列技術尺寸圖

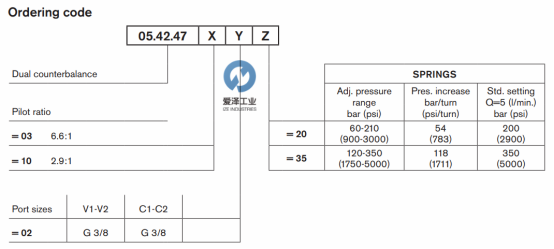

REXROTH OIL CONTROL閥VBSO-DE-NN系列選型參考

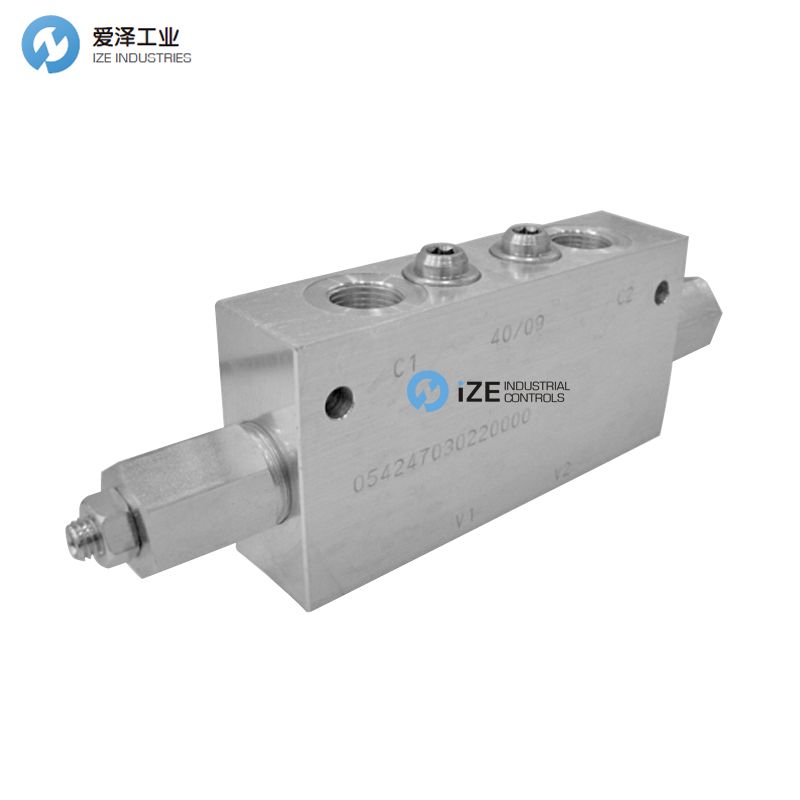

REXROTH OIL CONTROL閥054247030235000 R930001860
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥054247030220000 R930001858
REXROTH OIL CONTROL閥054247030235000 R930001860
REXROTH OIL CONTROL閥054247100220000 R930001873
REXROTH OIL CONTROL閥054247100235000 R930001875
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥054247030235000 R930001860的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥054247030235000 R930001860更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
