REXROTH OIL CONTROL閥VEI-16-021-NC系列技術參數
General | ||
Weight | 0.35 kg (0.77 lbs) | |
Installation orientation | Unrestricted | |
Ambient temperature range | -30 to 90 °C (-22 to 194 °F) | |
Hydraulic | ||
Max. operating pressure | 350 bar (5000 psi) | |
Flow range | 5 - 150 l/min (1 - 40 gpm) | |
Fatigue cycle life | 1 million cycles at 350 bar | |
Max. internal leakage:20 drops/min. for X= 01,05 | ||
Switching time | Closing ≤ 100 ms | |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) | |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | ||
Installation torque | 130 - 150 Nm (96 - 111 ft-lbs) | |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 | |
MTTFd | 150 years see RE 18350-51 | |
Special cavity | 021-E see 18325-75 | |
Seal kit for X=01,05 | code | RG21E201052010 |
Seal kit for X=03,09,11,31 | code | RG21E201053010 |
Seal kit coil and standard cap | code | RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code | RG03Z0010000100 |
Other technical data | See data sheet 18350-50 | |
Electrical | ||
Type of voltage | DC voltage | |
Coil type | D36 | |
Supply voltage | See data sheet 18325-90 | |
Voltage tolerance against ambient temperature | See characteristic curve | |
Power consumption | 20 W | |
Type of protection | See data sheet 18325-90 | |
Note: Coils must be ordered separately | ||

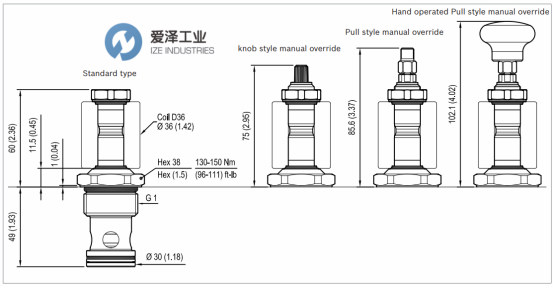

REXROTH OIL CONTROL閥VEI-16-021-NC系列技術尺寸圖

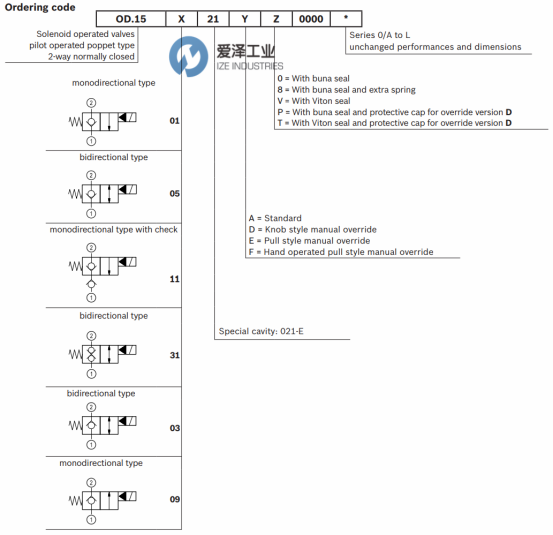

REXROTH OIL CONTROL閥VEI-16-021-NC系列選型參考

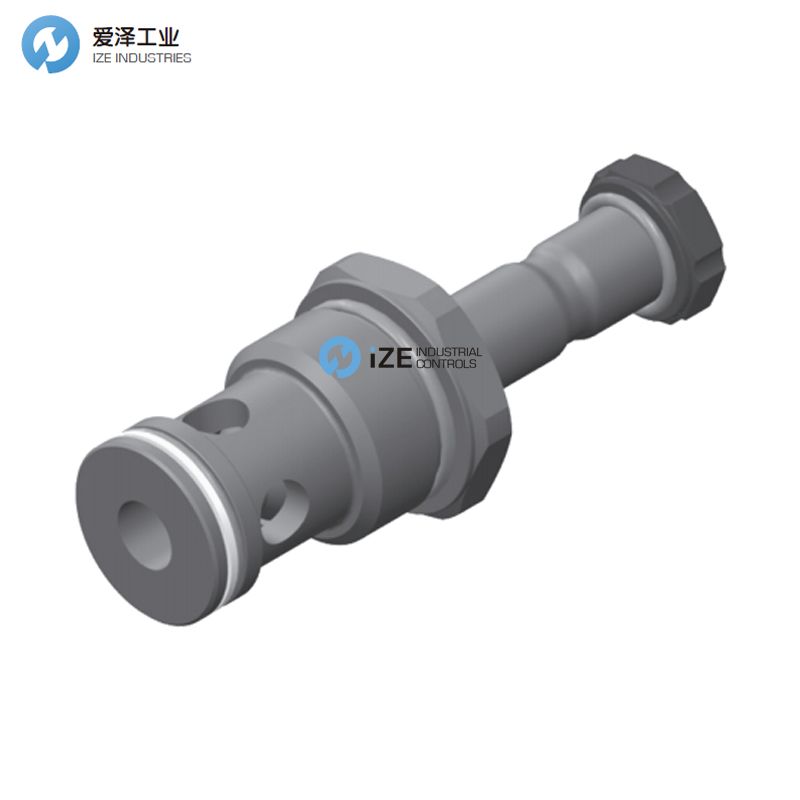

REXROTH OIL CONTROL閥OD150521A000000 R930064472 VEI-16-021-NC
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件REXROTH OIL CONTROL閥型號：
REXROTH OIL CONTROL閥OD150121A000000 R930064100
REXROTH OIL CONTROL閥OD150521A000000 R930064472
REXROTH OIL CONTROL閥OD150521A800000 R930065846
REXROTH OIL CONTROL閥OD150521D000000 R930066968
REXROTH OIL CONTROL閥OD151121A000000 R930068693
REXROTH OIL CONTROL閥OD151121D000000 R930065027
REXROTH OIL CONTROL閥OD153121A000000 R930068523
REXROTH OIL CONTROL閥OD153121A800000 R930069360
REXROTH OIL CONTROL閥OD153121D000000 R930068526
REXROTH OIL CONTROL閥OD153121D800000 R930069505
REXROTH OIL CONTROL閥OD150521D800000 R930070647
REXROTH OIL CONTROL閥OD150321A000000 R930070069
REXROTH OIL CONTROL閥OD150321D000000 R930069699
REXROTH OIL CONTROL閥OD150321D800000 R930070199
REXROTH OIL CONTROL閥OD150921A000000 R930068524
REXROTH OIL CONTROL閥OD150121A800000 R930068927
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150521A000000 R930064472的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關REXROTH OIL CONTROL閥OD150521A000000 R930064472更詳細的信息或者購買意大利REXROTH OIL CONTROL相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥VEI-16-021-NC系列技術參數及選型
