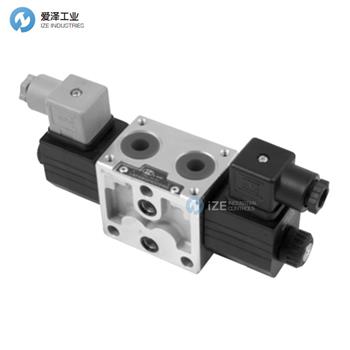

REXROTH閥L8010E201OC0100 R933002240技術參數
Family | Directional Valve elements ED |
Type | Size 6 |
Confi guration | Standard |
Coil type | C36 |
Spool variants | 4/3 operated on both sides a and b |
Voltage supply | 24V DC |
Electric connections | With coils, without mating connector DIN EN 175301-803 |
Ports | G 3/8 DIN 3852 |
Secondary valves setting | 50-210 bar (725-3045 psi) |
REXROTH閥L8系列產品介紹
General specifi cations
Valve elements with solenoid operated directional spool.
Control spools operated by solenoids with removable coils.
In the de-energized condition, the control spool is held in the central position by return springs.
Wet pin tubes for DC coils, with push rod for mechanical override; nickel plated surface.
Coils can be rotated 360° around the tube; they can be energized by AC current through special connectors with rectifi er (RAC).
Manual override (push-button or screw type) available as option.
Size 6
Series 00
Maximum operating pressure 310 bar (4500 psi)
Maximum fl ow 30 l/min (7.9 gpm)
Port connections G 3/8 - SAE6
一般規格
帶電磁控制方向閥芯的閥芯。
由帶可拆卸線圈的螺線管操作的控制線軸。
在斷電狀態下，控制閥芯由復位彈簧保持在中間位置。
用于直流線圈的濕銷管，帶有用于機械超控的推桿； 鍍鎳表面。
線圈可繞管360°旋轉； 它們可以通過帶有整流器 (RAC) 的特殊連接器由交流電供電。
動操作（按鈕式或螺絲式）可作為選項提供。
尺寸 6
00系列
最大工作壓力 310 bar (4500 psi)
最大流量 30 l/min (7.9 gpm)
端口連接 G 3/8 - SAE6

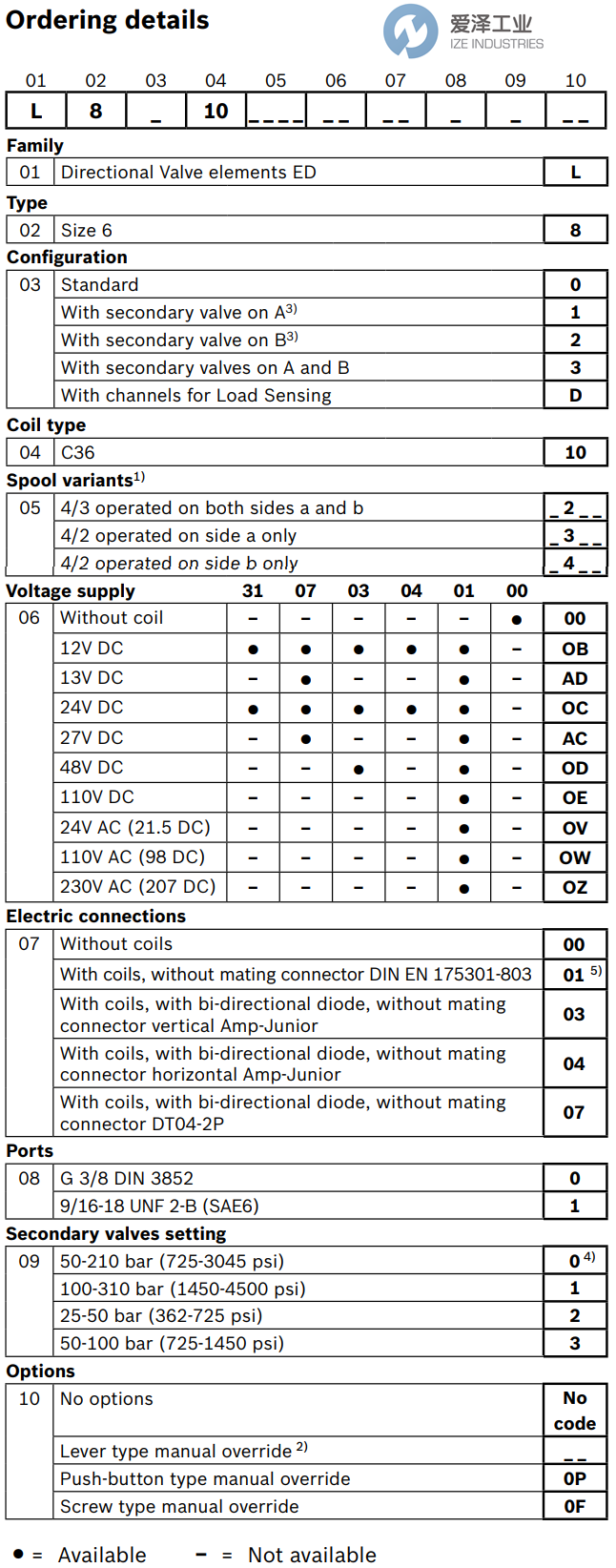

REXROTH閥L8系列選型
REXROTH閥L8系列其他常用型號：
REXROTH L8010E201OC0100 R933002240
REXROTH L8010B201OC0100
REXROTH L8010E201OB0100 R933002239
REXROTH R933000047
REXROTH R933002913
REXROTH R933000048
REXROTH R933000045
REXROTH R933000051
REXROTH R933000049
REXROTH OIL CONTROL Valve block NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH閥L8010E201OC0100 R933002240的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH閥L8系列L8010E201OC0100 R933002240技術參數及選型
