REXROTH OIL CONTROL閥VOI-8A-2A-06-NC系列技術參數
General | |
Weight kg (lbs) | 0.27 (0.58) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | -30 to 60 (-22 to 140) |
Hydraulic | |
Max. operating pressure bar (psi) | 350 (5000) |
Max. flow l/min. (gpm) | 40 (11) |
Max. internal leakage drops/min. | 20 |
Fluid temperature range °C (°F) | -20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque Nm (ft-lbs) | 39-51 (29-38) |
Recommended degree of fluid contamination | Nominal value max. 25μm (NAS 8) ISO 4406 19/17/14 |
Seal kit - version 05 | code RG08A20110520100 |
Seal kit - version 31 | code RG08A2010530100 |

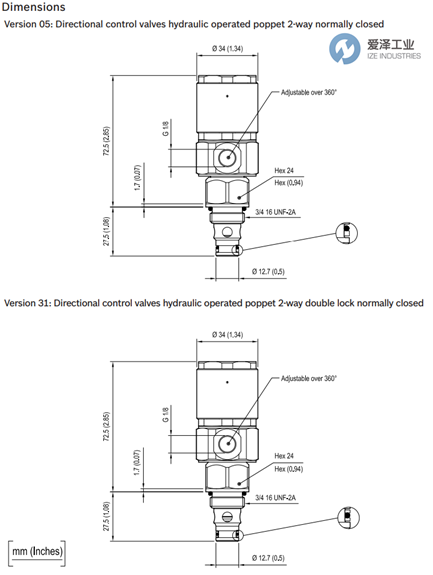

REXROTH OIL CONTROL閥VOI-8A-2A-06-NC系列技術尺寸

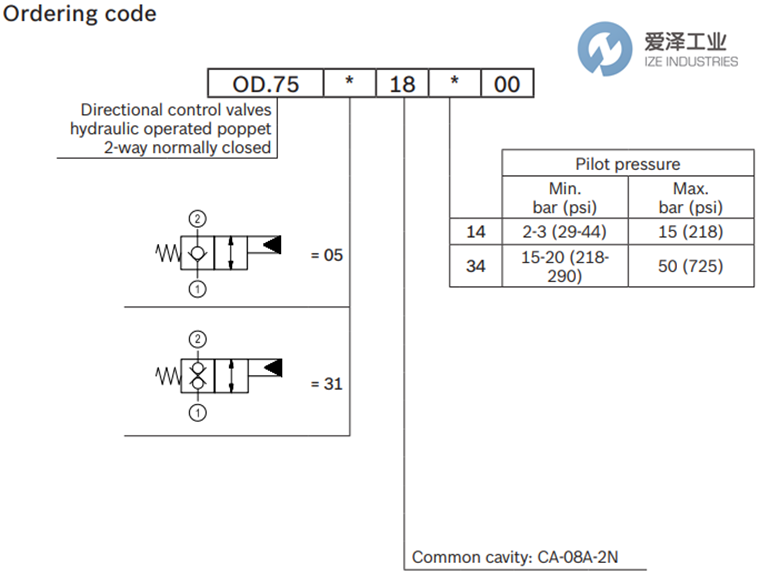

REXROTH OIL CONTROL閥VOI-8A-2A-06-NC系列選型
REXROTH OIL CONTROL閥VOI-8A-2A-06-NC系列其他常用型號：
REXROTH OIL CONTROL OD753118340000 R901109473
REXROTH OIL CONTROL OD750518140000 R901109467
REXROTH OIL CONTROL OD750518340000 R901109471
REXROTH OIL CONTROL OD753118140000 R901109472
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD753118340000 R901109473的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD753118340000 R901109473技術參數及選型
