REXROTH OIL CONTROL閥VEI-16-NC系列技術參數
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 5 - 150 l/min (1 - 40 gpm) |
Max. internal leakage: | 20 drops/min. |
Switching time | Closing ≤ 100 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) | |
Installation torque | 54 - 66 Nm (40 - 49 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFD | 150 years |
Common cavity | CA-12A-2N |
Seal kit for X=03,05 | code RG12A2010520100 |
Seal kit for X=31 | code RG12A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |
Note: Coils must be ordered separately | |

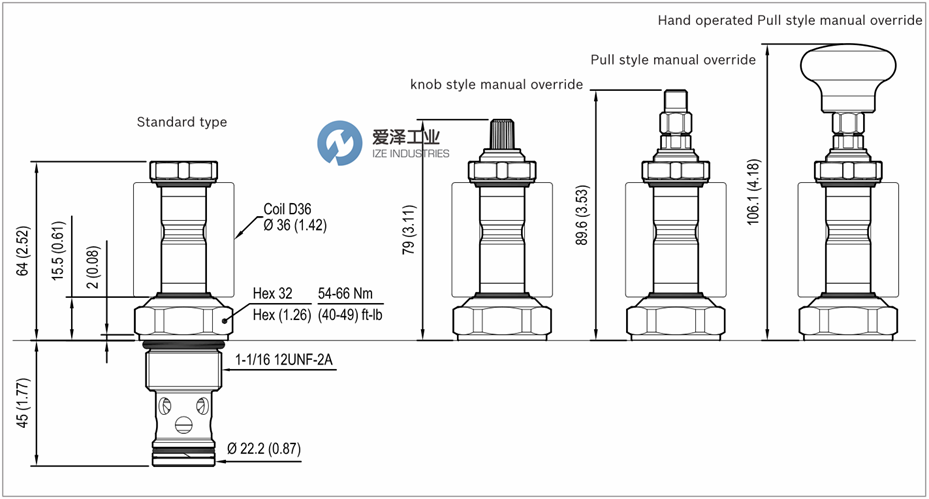

REXROTH OIL CONTROL閥VEI-16-NC系列技術尺寸

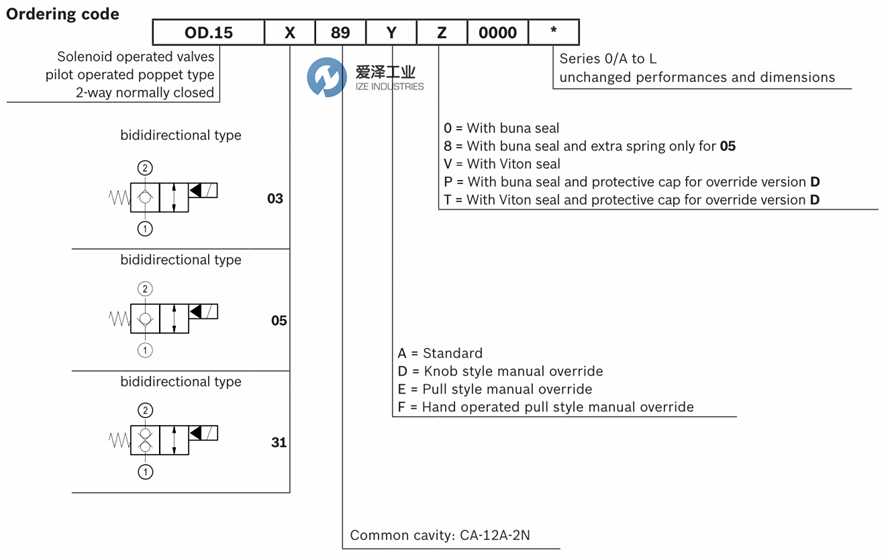

REXROTH OIL CONTROL閥VEI-16-NC系列選型介紹
REXROTH OIL CONTROL閥VEI-16-NC系列其他常用型號：
REXROTH OIL CONTROL OD150589A000000 R930061347
REXROTH OIL CONTROL OD150589D000000 R930065473
REXROTH OIL CONTROL OD150589F000000 R930067898
REXROTH OIL CONTROL OD150589A800000 R930069502
REXROTH OIL CONTROL OD150589E000000 R930068530
REXROTH OIL CONTROL OD150389A000000 R930066083
REXROTH OIL CONTROL OD150389D000000 R930069501
REXROTH OIL CONTROL OD153189A000000 R930067154
REXROTH OIL CONTROL OD153189A800000 R930069494
REXROTH OIL CONTROL OD153189AV00000 R930069493
REXROTH OIL CONTROL OD153189D000000 R930069498
REXROTH OIL CONTROL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150589A800000 R930069502的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
