REXROTH OIL CONTROL閥VEP-5A-3R-03系列技術參數
TECHNICAL DATA | |
Maximum Pressure inlet in 2 | 350 bar |
Reduced Pressure in 1 | 4-100 bar |
Rated Flow | 2 l/min |
I Max(±10%) for coil 12 V DC | 2 A |
I Min(±10%) for coil 12 V DC | 0.3 A |
Recommended PWM frequency | 120-150 Hz |
Weight | 0.240 kg |
Internal leakage at 350 bar with 46 cst oil | Max.5 cm3/min |
Mounting Position | unrestricted |
N.B. It is recommended to bleed air carefully before operation. | |

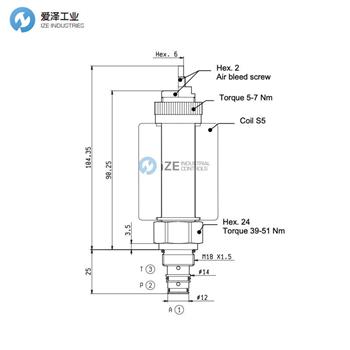

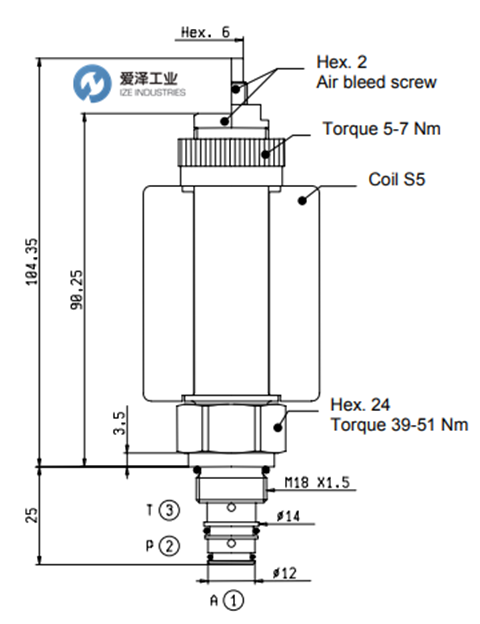

REXROTH OIL CONTROL閥VEP-5A-3R-03系列技術尺寸
REXROTH OIL CONTROL閥VEP-5A-3R-03系列其他常用型號：
REXROTH OIL CONTROL OD910181030000 R934001496
REXROTH OIL CONTROL OD910181040000 R930044830
