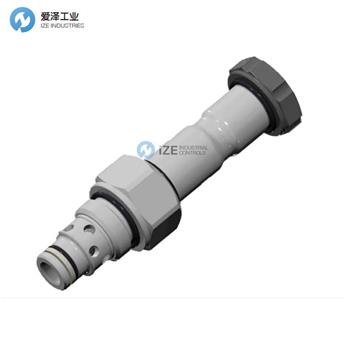

REXROTH OIL CONTROL閥VEI-16-08A-NC系列技術參數
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90°C (-22 to 194°F) for W=0000 |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min. (0.1 - 11 gpm) for W=0000 |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage: | 5 drops/min. for X= 01,05,07 |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Installation torque | 35 - 43 Nm (26 - 32 ft-lbs) |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |
REXROTH OIL CONTROL閥VEI-16-08A-NC系列介紹
新的VEI-16系列采用了一個新的螺線管概念，提供了卓越的性能，并使墨盒能夠在惡劣的環境下工作。墨盒還采用了先進的液壓部件設計，提供了優良的液壓性能。
New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excellent hydraulic performance.

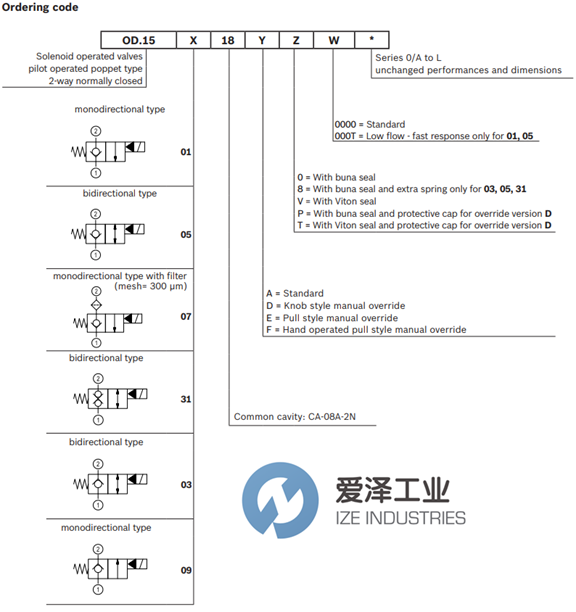

REXROTH OIL CONTROL閥VEI-16-08A-NC系列選型
REXROTH OIL CONTROL閥VEI-16-08A-NC系列其他常用型號：
REXROTH OIL CONTROL OD153118D000000 R930058898
REXROTH OIL CONTROL OD153118E000000 R930065030
REXROTH OIL CONTROL OD150518A800000 R930063229
REXROTH OIL CONTROL OD150318A000000 R930062828
REXROTH OIL CONTROL OD150918A000000 R930064361
REXROTH OIL CONTROL OD153118DP00000 R930066685
REXROTH OIL CONTROL OD150518D800000 R930063959
REXROTH OIL CONTROL OD150318D000000 R930065238
REXROTH OIL CONTROL OD150918D000000 R930066189
REXROTH OIL CONTROL OD150318A800000 R930065856
REXROTH OIL CONTROL OD150518A800000 R930063229
REXROTH OIL CONTROL OD153118A800000 R930066547
